Sony ECM-778 Shotgun Microphone

Key Features

For TV, Broadcast, Film, Documentary
7" Design for Boom or Camera Use
XLR Output, Requires Phantom Power
Highly Focused Supercardioid Pickup
Stable Sound over Wide Distance Range
Lightweight at Just 3.6 oz
Low-Cut Switch for Wind Noise
Clear, Natural Hi-Res Audio

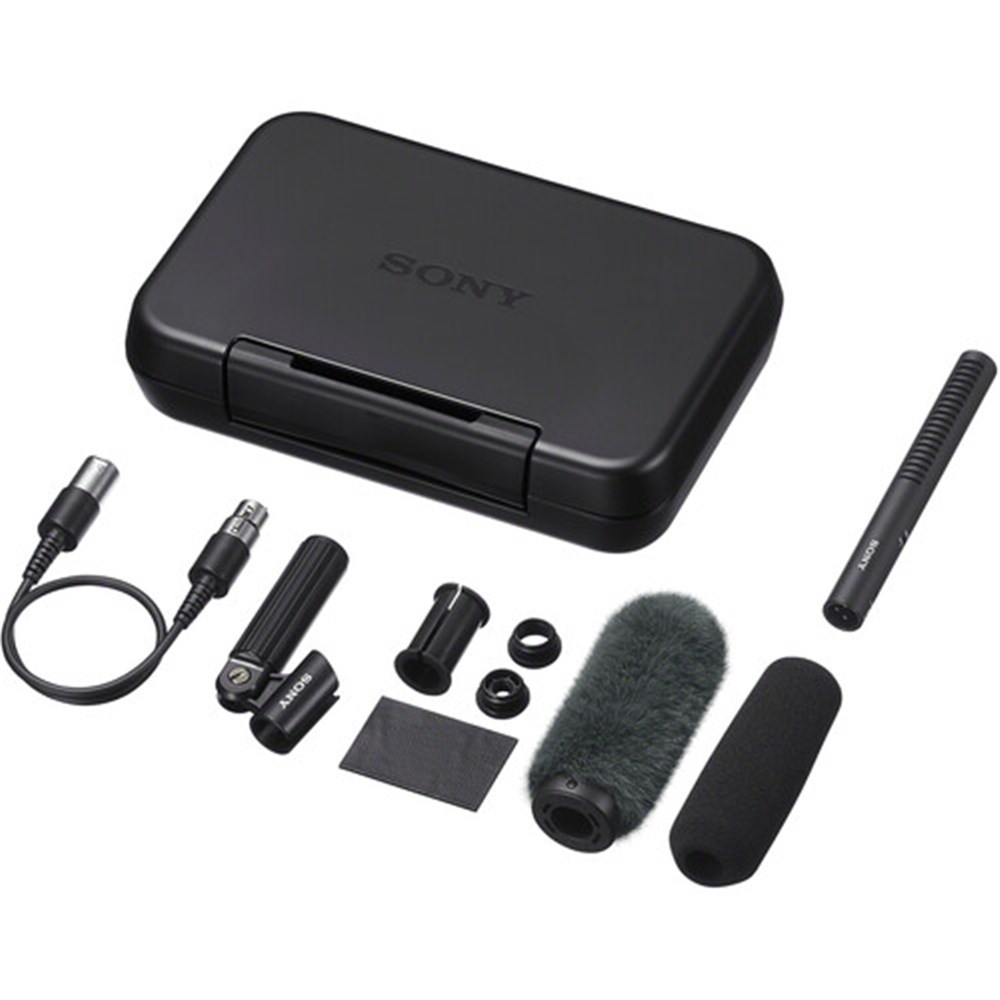

Foam and Fur Windscreens Included
Machined Aluminum Chassis

The Sony ECM-778 is a professional shotgun microphone designed for high-resolution audio capture in film, broadcast, and content production. Whether mounted on a boom or camera, this ultracompact electret-condenser mic delivers pristine, neutral sound with clear, open highs and a rich, stable low-mid response, ideal for dialog, ambient sound, and acoustic instruments.

Polar Pattern	Supercardioid
Element Type	Electret Condenser
Controls	Low Cut/HPF
Frequency Response	40 Hz to 40 kHz
Maximum SPL	133 dB (1% Distortion) 136 dB (10% Distortion)
Analog Output	1x XLR 3-Pin Male
Power Sources	Phantom Power

Microphone

Polar Pattern	Supercardioid
Element Type	Electret Condenser
Sound Field	Mono
Orientation	End Address
Controls	Low Cut/HPF
Circuitry	Solid-State

Performance

Frequency Response	40 Hz to 40 kHz
Maximum SPL	133 dB (1% Distortion) 136 dB (10% Distortion)
Sensitivity	-31 dB
Dynamic Range	117 dB
Equivalent Noise Level	16 dB SPL

Connectivity

Analog Output

1x XLR 3-Pin Male

Power

Power Sources	Phantom Power
Operating Voltage	44 to 52 V (Phantom Power)

Physical

Color	Black
Mounting Thread Size	5/8"-27 Female

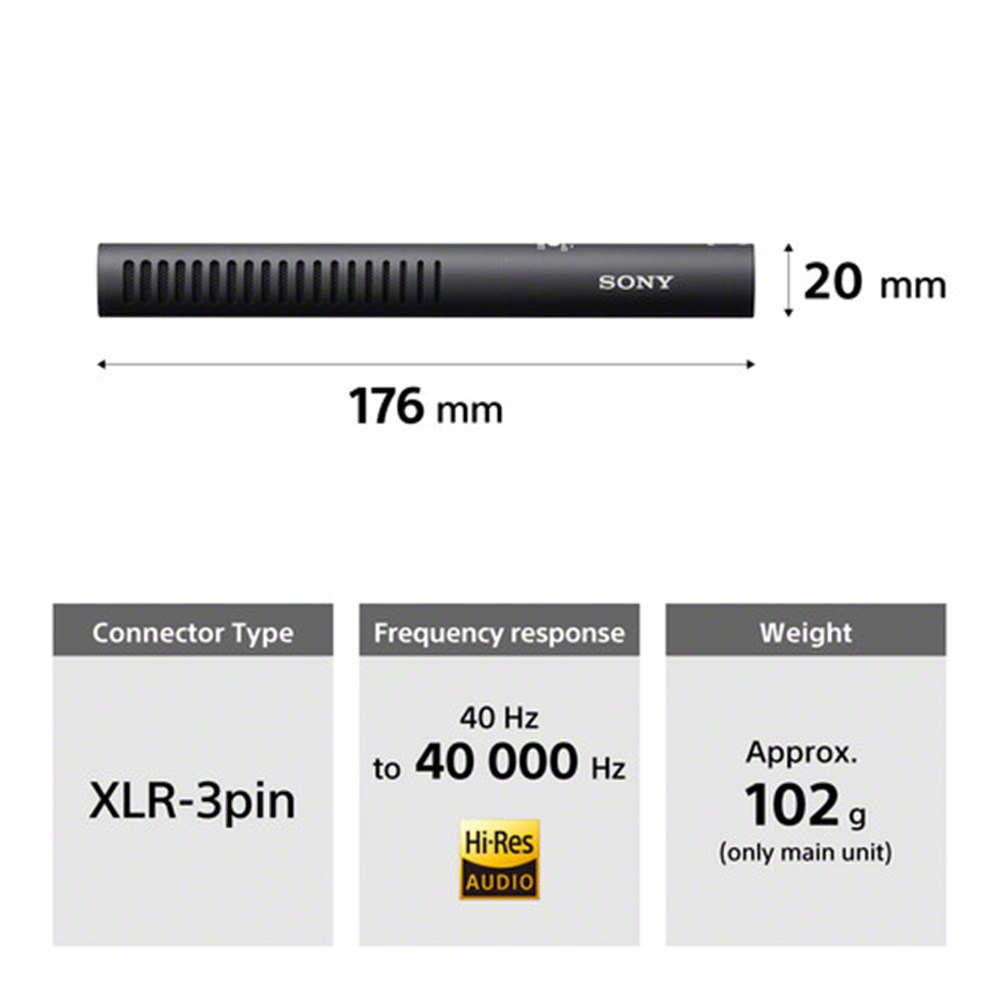

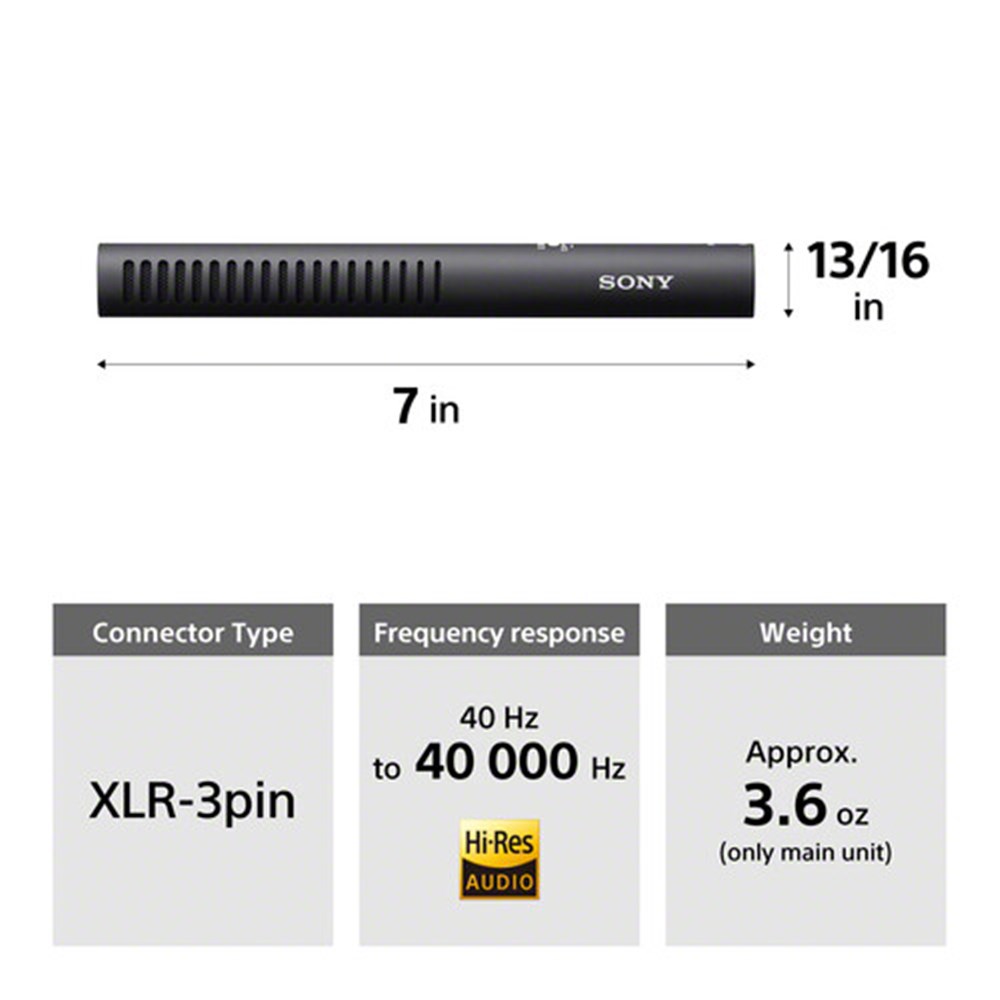

Dimensions	ø: 0.8 x L: 6.9" / ø: 20 x L: 176 mm
Weight	3.6 oz / 102 g
