Sensor Type
35mm full frame (35.9 x 24.0 mm), Exmor RS CMOS sensor
No. of pixels (effective, stills)
Still images: Approx. 66.8 megapixels max.
No. pixels (effective, movie) Approx. 55.8 megapixels
Image Stabilisation
Image sensor-shift mechanism with 5-axis compensation
RECORDING SYSTEM
(STILLS)
Format JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW
(Sony ARW 6.0 format compliant)
Image Quality RAW (Compressed / Uncompressed), HEIF (4:2:0 / 4:2:2), RAW & JPEG, RAW & HEIF
(MOVIE)
Recording Format XAVC S, XAVC HS, XAVC S-I
Recording Settings XAVC HS 8K: 7680 x 4320 (4:2:0, 10bit): 29.97p (400 Mbps / 200 Mbps), 25p (400 Mbps / 200 Mbps), 23.98p (400 Mbps / 200 Mbps); 7680 x 4320 (4:2:2,10bit): 29.97p (520 Mbps / 260 Mbps), 25p (520 Mbps / 260 Mbps), 23.98p (520 Mbps / 260 Mbps) XAVC HS 4K: 3840 x 2160 (4:2:0, 10bit): 119.88p (200 Mbps), 100p (200 Mbps), 59.94p (150 Mbps / 75 Mbps / 45 Mbps), 50p (150 Mbps / 75 Mbps / 45 Mbps), 23.98p (100 Mbps / 50 Mbps / 30 Mbps); 3840 x 2160 (4:2:2, 10bit): 119.88p (280 Mbps), 100p (280 Mbps), 59.94p (200 Mbps / 100Mbps), 50p (200 Mbps / 100 Mbps), 23.98p (100 Mbps / 50 Mbps); XAVC S 4K: 3840 x 2160 (4:2:0, 8bit): 119.88p (200 Mbps), 100p (200 Mbps), 59.94p (150 Mbps), 50p (150 Mbps), 29.97p (100 Mbps / 60 Mbps), 25p (100 Mbps / 60 Mbps), 23.98p (100 Mbps / 60 Mbps); 3840 x 2160 (4:2:2, 10bit): 119.88p (280 Mbps), 100p (280 Mbps), 59.94p (200 Mbps), 50p (200 Mbps), 29.97p (140 Mbps), 25p (140 Mbps), 23.98p (100 Mbps); XAVC S-I 4K: 3840 x 2160 (4:2:2, 10bit): 59.94p (600 Mbps), 50p (500 Mbps), 29.97p (300 Mbps), 25p (250 Mbps), 23.98p (240 Mbps); HD recording modes available, but not itemised here.
Slow & Quick Format
XAVC S, XAVC HS, XAVC S-I
(S&Q) Frame Rate
(PAL)
PAL mode: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps
Colour Space Rec. ITU-R BT.2100 standard compatible (BT.2020 gamut)
AUDIO Audio Recording
Format
LPCM 2ch (48 kHz 16 bit)
32-bit audio available via XLR-A4 adapter, Microphone Built-in, stereo, Built-in, voice memo
Speaker Built-in, monaural
MEDIA SLOTS
SLOT1: Multi slot for SD (UHS-I/II compliant) memory card / CFexpress Type A card,
SLOT2: Multi slot for SD (UHS-I/II compliant) memory card / CFexpress Type A card
WHITE BALANCE
WB Options Auto (AI) / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Flash / Underwater / Color
Temperature (2500 to 9900 K) & color filter / Custom
FOCUS SYSTEM
Focus Points Max. 759 points (phase-detection AF)
Sensitivity Range EV-6 to EV20 (ISO100 equivalent with F2.0 lens attached in AF-S)
AF Modes AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus),
Subject Detection Human (Right/Left Eye Select) / Animal (Right/Left Eye Select) / Bird / Insect / Car|Train / Airplane / Auto
EXPOSURE CONTROL
Modes AUTO, Programmed AE (P), Aperture priority (A), Shutter-speed priority (S), Manual (M), 1, 2, *;
ISO Range Still images: ISO 100-32000 (ISO numbers up from ISO 50 to ISO 102400 can be set as expanded
ISO range.), AUTO (ISO 100-12800, selectable lower limit and upper limit), Movies: ISO 100-32000
equivalent, AUTO (ISO 100-12800, selectable lower limit and upper limit)
VIEWFINDER
Type 1.6 cm (0.64 type) electronic viewfinder (Quad-XGA OLED)
Resolution: 9 437 184 dots
Eye Relief: 25mm from eyepiece lens
Field Coverage: 100%
Frame Rate (PAL) PAL mode: STD 50fps / HI 100fps
LCD SCREEN
Type: 8.0 cm (3.2-type) type TFT
Resolution: 2 095 104 dots
Touch Panel: Yes

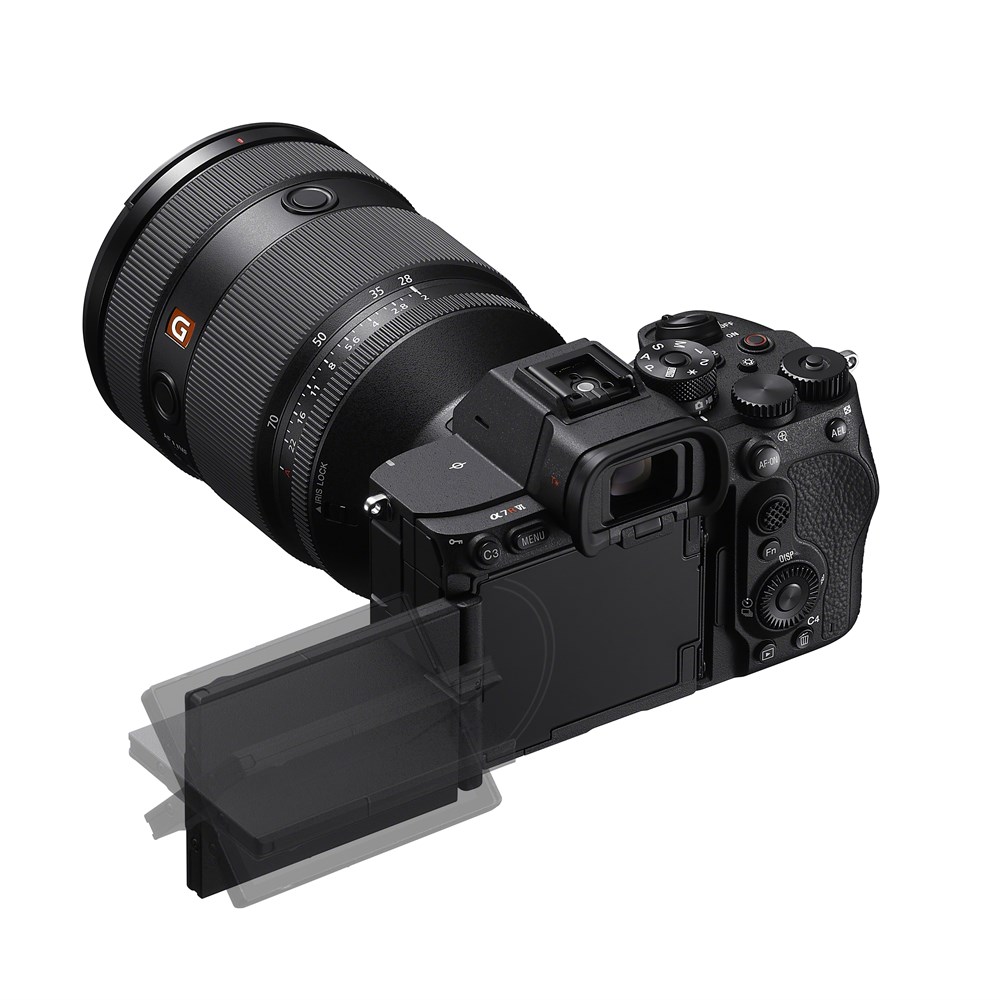

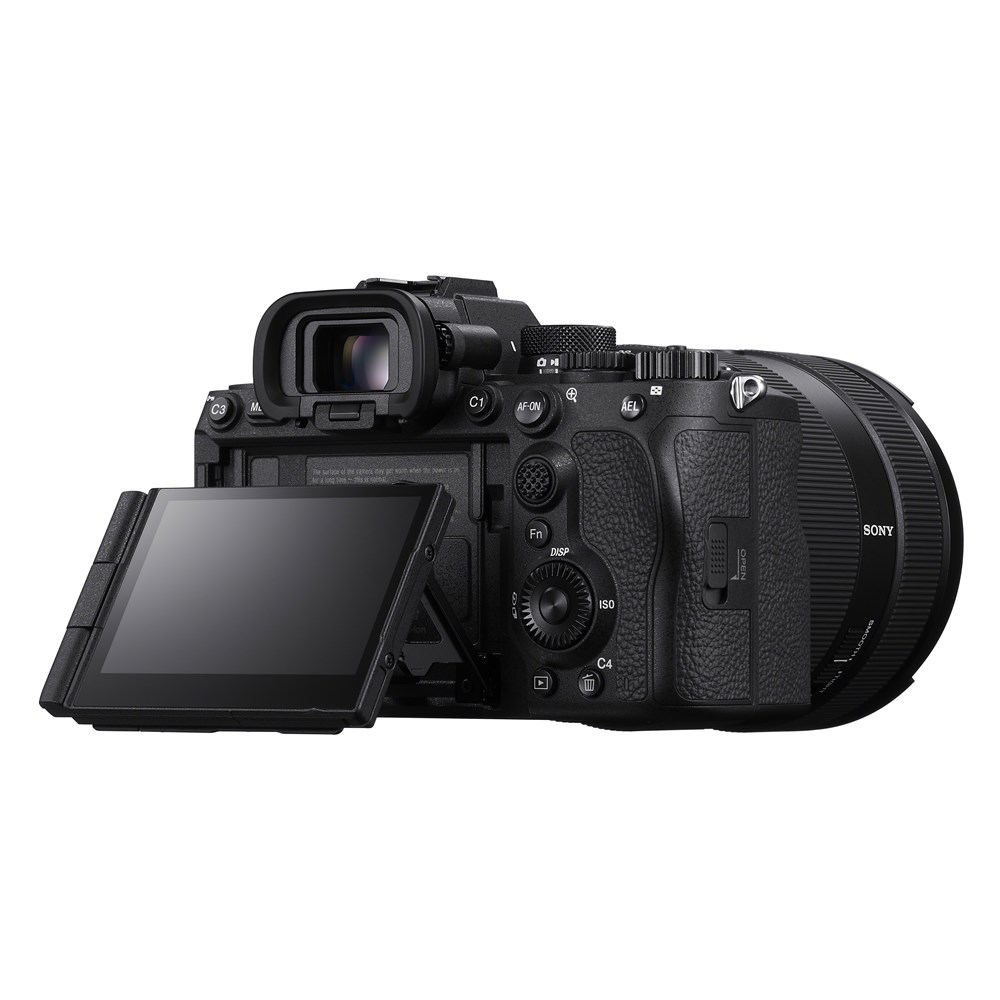

Adjustable Angle Opening Angles (approx.): Up 98 °, down 40 °, side 180 °, rotation 270 °
SHUTTER TYPE
Auto / Mechanical shutter / Electronic shutter
Shutter Speed Range
Still images: 1/8,000 (mechanical & electronic) to 30s, Bulb, Movies: 1/8000 to 1s (1/3 steps), up to 1/50 in AUTO mode (up to 1/25 in Auto slow shutter mode)
Flash Sync Speed 1/250s (Full Frame), 1/320s (APS-C)
Modes Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable), Self-timer, Self-timer (Cont.),
Bracket: Single, Bracket: Cont., Focus Bracket, White Balance bracket, DRO bracket

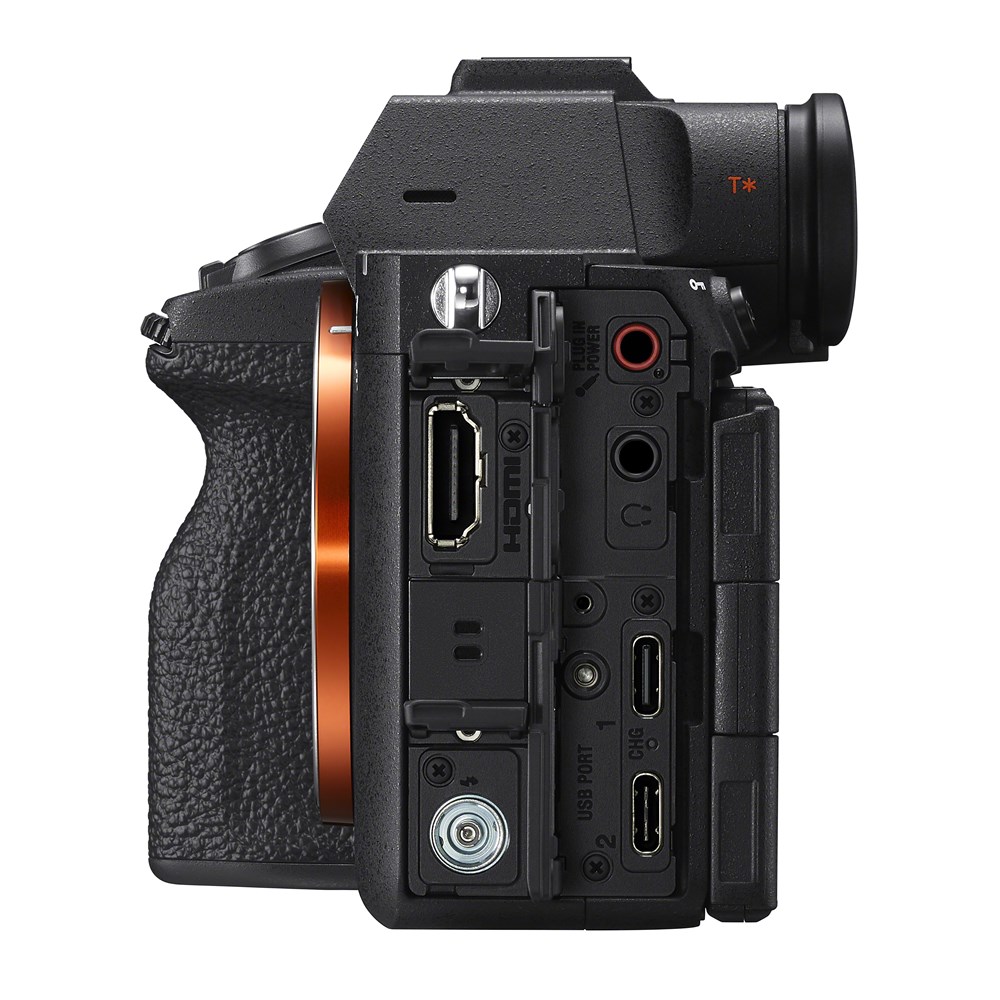

INTERFACE HDMI
Output HDMI connector (Type-A): 3840 x 2160 (60p / 50p / 30p / 25p / 24p) / 1920 x 1080 (60p / 50p / 24p) / 1920 x 1080 (60i / 50i), YCbCr 4:2:2 10bit / RGB 8bit; 7860 x 4320 (24p / 25p), YCbCr 4:2:0 8bit*5, 16-bit RAW
Multi Interface shoe: Yes (with Digital Audio Interface, 32-bit float audio)
Wireless LAN (built-in): Yes (Wi-Fi Compatible, IEEE 802.11a/b/g/n/ac (2.4 GHz band/5 GHz/6Ghz band))
Ethernet via USB adapter
Bluetooth: Yes (Bluetooth Standard Ver. 5.0 (2.4 GHz band))
USB-C Yes (SuperSpeed USB 10 Gbps (USB 3.2) compatible), Power Delivery compatible
CONSTRUCTION
Chassis Material Magnesium Alloy
Dust & Weather Resist: Yes
Dimensions Approx. 132.7 x 96.9 x 82.9 mm
Weight Approx. 713 g (with battery and memory card)
USB Streaming Video data format MJPEG
Video resolution 3840 x 2160 (15p / 30p), 3840 x 2160 (12.5p / 25p), 1920 x 1080 (30p / 60p), 1920 x 1080 (25p / 50p),
1280 x 720 (30p), 1280 x 720 (25p)
Audio data format LPCM 2ch (16 bit 48 kHz)
Simultaneous internal recording: Yes
Video data format YUV420
BATTERY
Battery Model NP-SA100
Battery Life STILL IMAGES: Approx. 420 shots (Viewfinder) / Approx. 520 shots (LCD monitor) (CIPA standard);
MOVIE: Approx. 85 min (Viewfinder) / Approx. 90 min (LCD monitor) (CIPA standard)
