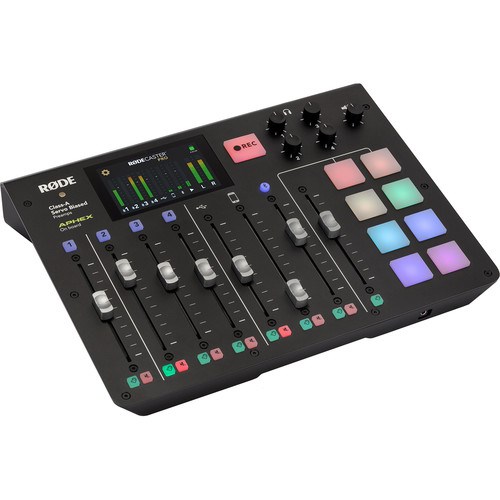

RØDECaster Pro Specifications
ACOUSTIC & ELECTRICAL SPECIFICATION
| Frequency Range | Mic Inputs:20 Hz – 20 kHz, -3dB at 20 Hz (high-pass filter)
Monitor Outputs:20 Hz – 20 kHz better than ±0.5dB |
| Input Impedance | 600Ω (Mic Preamplifiers) |
| Equivalent Noise | –125dBA (A-Weighted, measured as per IEC651) |
| Maximum Output Level | +3dBu (Monitor Outputs) |
| Headphone Output Power | Max output power at 1% THD: 32Ω –> 220mW | 300Ω –> 31mW |
| Dynamic Range | 100 dBA (Mic Preamplifiers) |
| Gain Range | 0dB – 55dB (Mic Preamplifiers) |
| Power Requirements | External DC power supply 12 - 15v DC, 1A |

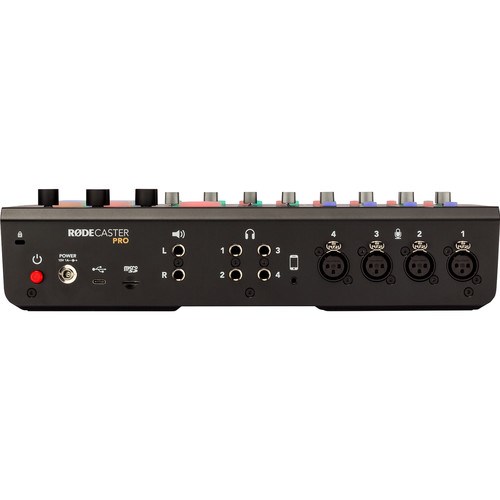

| Output Connection | USB-C, 1/4” Balanced TRS STEREO (Monitor Outputs) |
| Computer Connectivity | USB |
| Bit Depth | 24-Bit |
| Sample Rates | 48 kHz |
| Storage | microSD™ card slot, 512MB internal memory for storing sounds for programmable pads |
| OS Requirements | macOS 10.11
Windows 10 |
