Lens Mount

Micro Four Thirds

Camera Format

Micro Four Thirds (2x Crop Factor)

Pixels

Actual: 21.77 Megapixel

Effective: 20.3 Megapixel

Maximum Resolution

5184 x 3888

Aspect Ratio

1:1, 3:2, 4:3, 16:9

Sensor Type

MOS

Sensor Size

17.3 x 13 mm

Image File Format

JPEG, Raw

Image Stabilization

Sensor-Shift, 5-Axis

ISO Sensitivity

Auto, 200 to 25600 (Extended: 100 to 25600)

Shutter Speed

Electronic Front Curtain Shutter

1/8000 to 60 Seconds

1 to 30 Minutes in Bulb Mode

Electronic Shutter

1/32000 to 1 Second

1/16000 to 1/25 Second in Movie Mode

Metering Method

Center-Weighted Average, Multiple, Spot

Exposure Modes

Aperture Priority, Manual, Program, Shutter Priority

Exposure Compensation

-5 to +5 EV (1/3 EV Steps)

Metering Range

0 to 18 EV

White Balance

Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set

Continuous Shooting

Up to 9 fps at 20.3 MP

Up to 12 fps at 20.3 MP

Up to 20 fps at 20.3 MP

Up to 60 fps at 20.3 MP

Up to 30 fps at 18 MP

Up to 60 fps at 8 MP

Interval Recording

Yes

Self-Timer

2/10-Second Delay

Recording Modes

MP4 4:2:0 8-Bit

UHD 4K (3840 x 2160) at 59.94p [150 Mb/s]

UHD 4K (3840 x 2160) at 23.976p/29.97p/59.94p [100 Mb/s]

Full HD (1920 x 1080) at 59.94p [28 Mb/s]

Full HD (1920 x 1080) at 29.97p/180p [20 Mb/s]

AVCHD

Full HD (1920 x 1080) at 59.94p [28 Mb/s]

Full HD (1920 x 1080) at 59.94i [17 to 24 Mb/s]

Full HD (1920 x 1080) at 23.976p [24 Mb/s]

External Recording Modes

4:2:2 8-Bit

UHD 4K (3840 x 2160)

Full HD (1920 x 1080)

Recording Limit

Up to 29 Minutes, 59 Seconds

Video Encoding

NTSC

Audio Recording

Built-In Microphone (Stereo)

External Microphone Input

Audio File Format

AAC, Dolby Digital 2ch, Linear PCM

Focus Type

Auto and Manual Focus

Focus Mode

Continuous-Servo AF (C), Flexible (AFF), Manual Focus (M), Single-Servo AF (S)

Autofocus Points

Contrast Detection: 225

Autofocus Sensitivity

-4 to +18 EV

Viewfinder Type

Electronic

Viewfinder Resolution

3,680,000 Dot

Viewfinder Eye Point

21 mm

Viewfinder Coverage

100%

Viewfinder Magnification

Approx. 0.83x

Diopter Adjustment

-4 to +3

Monitor Size

3"

Monitor Resolution

1,040,000 Dot

Monitor Type

Articulating Touchscreen LCD

Built-In Flash

No

Flash Modes

Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction

Maximum Sync Speed

1/250 Second

Flash Compensation

-3 to +3 EV (1/3 EV Steps)

Dedicated Flash System

TTL

External Flash Connection

Hot Shoe, PC Terminal

Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-II)

Connectivity

3.5mm Headphone, 3.5mm Microphone, 2.5mm Sub-Mini, HDMI A (Full Size), USB Micro-B (USB 3.0)

Wireless

Wi-Fi

Bluetooth

GPS

No

Operating Temperature

14 to 104°F / -10 to 40°C

Operating Humidity

10 to 80%

Battery

1 x DMW-BLF19 Rechargeable Lithium-Ion, 7.2 VDC, 1860 mAh

Dimensions (W x H x D)

5.4 x 3.8 x 3.6" / 136.9 x 97.3 x 91.6 mm

Weight

1.27 lb / 579 g (Body Only)

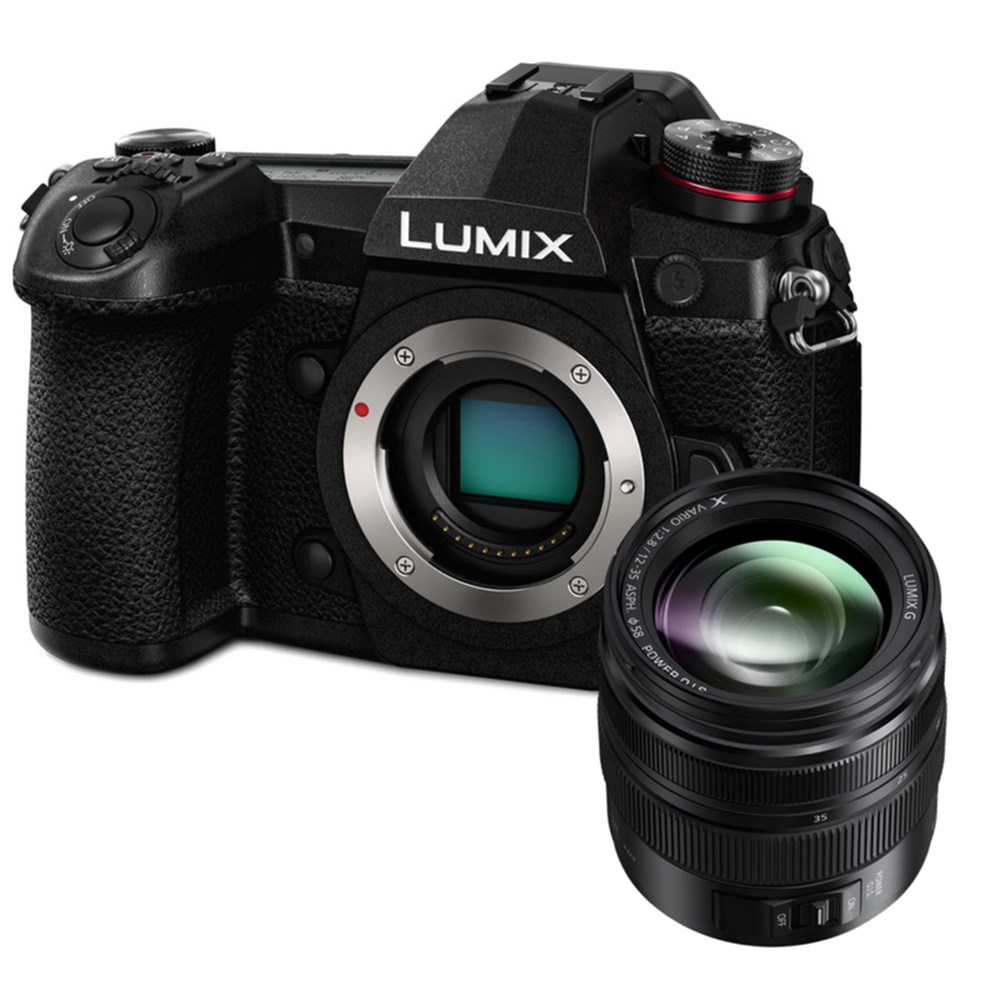

Focal Length

12 to 35mm (35mm Equivalent Focal Length: 24 to 70mm)

Maximum Aperture

f/2.8

Minimum Aperture

f/22

Lens Mount

Micro Four Thirds

Format Compatibility

Micro Four Thirds

Angle of View

84° to 34°

Minimum Focus Distance

9.84" / 25 cm

Maximum Magnification

0.17x

Optical Design

14 Elements in 9 Groups

Diaphragm Blades

7, Rounded

Focus Type

Autofocus

Image Stabilization

Yes

Filter Size

58 mm (Front)

Dimensions (ø x L)

2.66 x 2.91" / 67.6 x 73.8 mm

Weight

10.76 oz / 305 g
