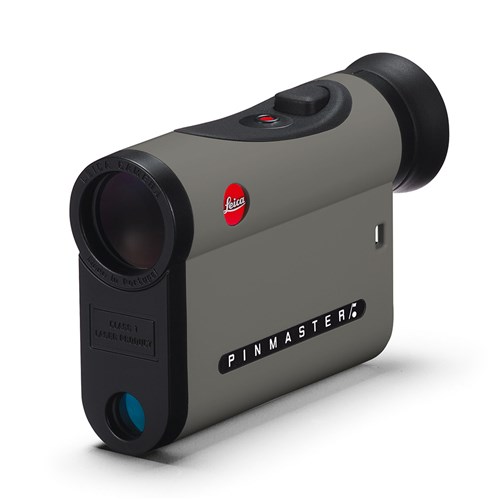

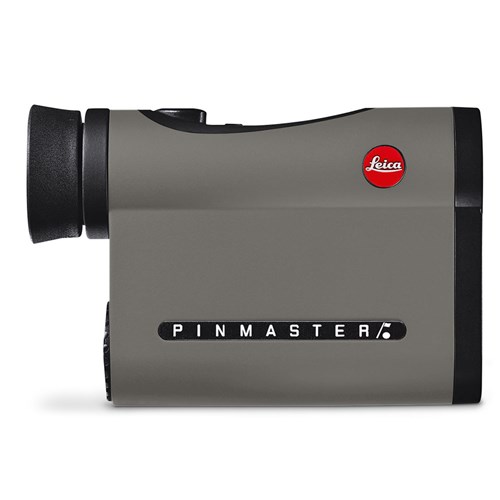

Leica Pinmaster II

Product Code: 102230

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
For more accuracy on the golf course
  • Product Description
  • Specifications
  • What's in the Box?
The Pinmaster II is a must-have accessory for the discerning golfer. Stylish good looks are just the beginning: its performance makes it an indispensible companion. With a range of up to 750 m, it precisely measures the distance to the pin and displays the results clearly and brilliantly – even in challenging light conditions. So you can select the right club for each successful shot.
Magnification 7 x
Front lens diameter 24 mm
Exit pupil 3.4 mm
Twilight factor 13
Field of view at 1,000 m 115 m
Field of view at 1,000 yds 347 ft
Eye-relief 15 mm
Objective angle of view 6,5°
Diopter compensation ± 3.5 diopters
ACD™ – Angle Compensated Distance yes
Distance measurement Range:
10 to 750 m
10 to 825 yds

Accuracy:
± 1 m/yd to 366 m/400 yds,
± 2 m/yds to 750 m/825 yds,
± 0,5 % over 750 m/825 yds
Read-outs LED display with four digits, easily legible in any light
Eyepieces for eyeglass wearers yes
Eyecups turn down rubber eyecups
Prism system Roof prism with phase correction coating P40
Watertightness Watertight to a depth of 1 m/3.2 ft
Housing Carbon fibre-reinforced plastic material
Dimensions (W x H x D) 113 x 75 x 34 mm
4.5 x 2.25 x 1.25 in
Weight approx. 6.5 oz / 185g
Meter/Yard Selector yes
Laser Eye-safe invisible laser according to EN and FDA class1
Laser beam divergence approx. 0.5 x 2.5 mrad
Measuring time maximum 0,3s
Measuring mode Scanning mode
First target logic The nearest distance value is displayed when several measured values are available
Power supply 1 x 3 V/Lithium-type C2R
Battery lifetime approx. 2,000 measurements at 20°C/68°F
Leica Pinmaster II
Cordura Carry Case
Carrying Cord
CR2 Battery
