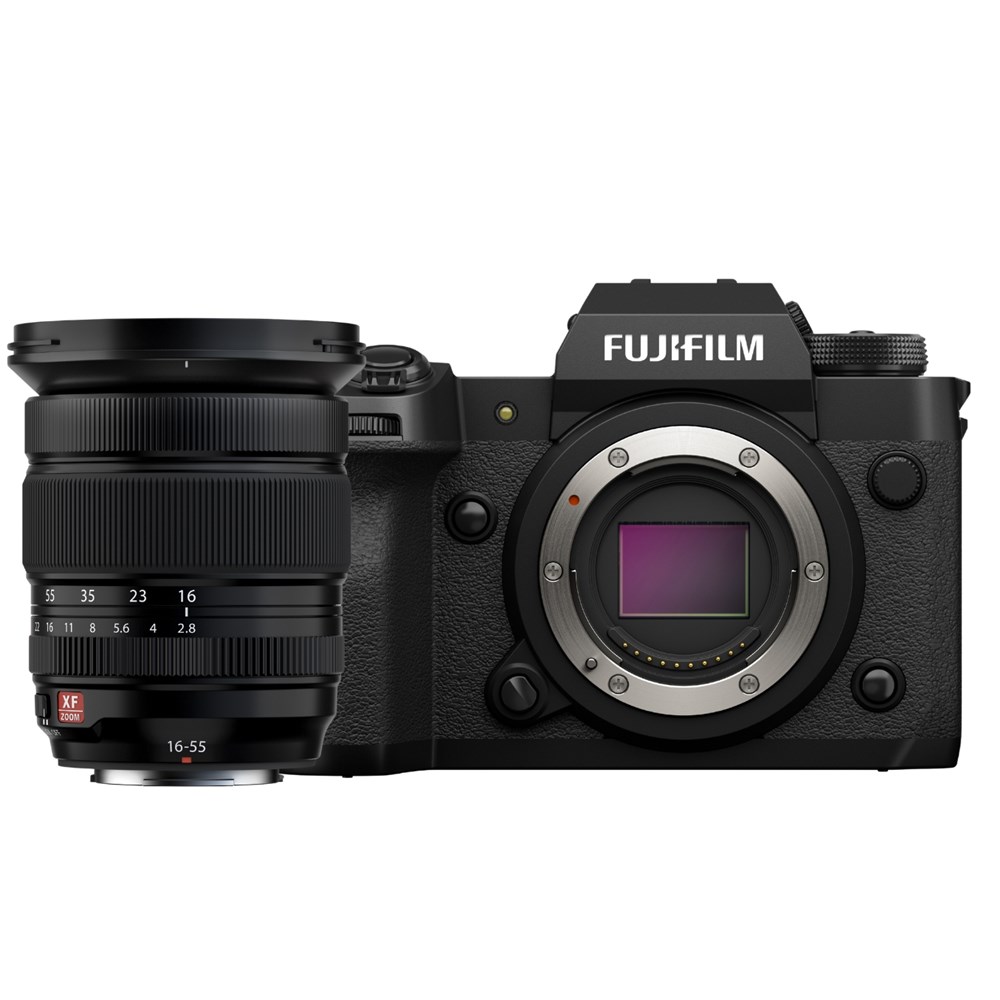

Name: Fujifilm X-H2 + 16-55mm F2.8 II R LM WR Lens Kit
Brand: FujiFilm
SKU: 121476
Availability: OutOfStock

121476

This Kit Includes

Code

Item

Qty

117704

Fujifilm X-H2 Body Only

119968

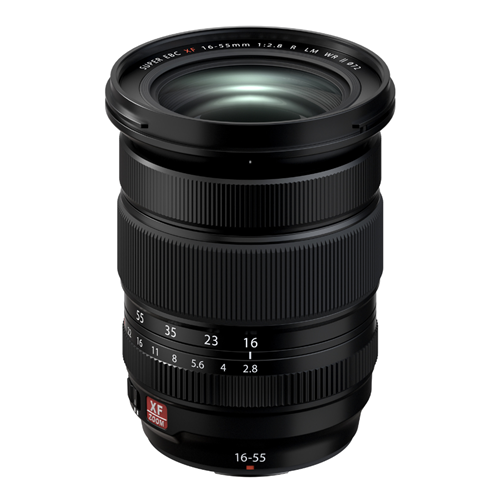

Fujifilm XF 16-55mm F2.8 II R LM WR Lens

Product Description
Specifications
What's in the Box?
Warranty

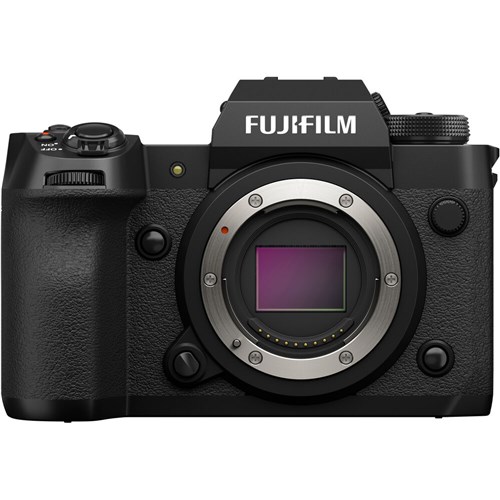

FUJIFILM X-H2 Mirrorless Camera

Key Features

40MP APS-C X-Trans5 BSI Sensor
7-Stop In-Body Image Stabilization
Up to 8K 30p 10-Bit Video
5.76m-Dot OLED Electronic Viewfinder
CFexpress Type B & SD UHS-II Card Slots
ProRes Raw, Blackmagic Raw via HDMI
Intelligent Hybrid Autofocus

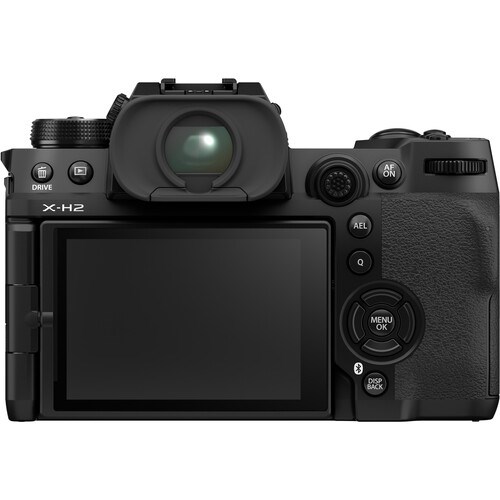

Rear 3.0" Vari-angle LCD Touchscreen & Top LCD Screen
Weather Resistant

Life in Detail

Fifth generation imaging technology brings high resolution and speed to the next evolution of X Series. Equipped with a new 40.2-megapixel sensor, X-H2 offers unrivaled image quality for both stills and video, unlocking a world of creative possibilities far beyond what any previous APS-C format camera has ever done before.

40.2MP high resolution imaging sensor with 15FPS burst shooting

8K/30P 4:2:2 10bit internal ProRes HQ and external 12bit RAW

5-axis, 7 stops in-body image stabilisation (based on CIPA standard)

High levels of dust and moisture resistance. Operable in temperatures as low as -10°C

Approx. 660g including battery and memory card

What's New?

The number of pixels has been increased by approximately 1.5 times compared to the previous model, enabling high-resolution sensors to capture 8K video images in addition to 40.2MP still images. Now with twice the processing speed of X-Processor 4, experience new AI processing technology, HEIF format, Apple ProRes support^*, CFexpress™ Type B card^*AndReduced power consumption

*Apple ProRes is a trademark of Apple Inc., registered in the U.S. and other countries and regions.
*CFexpress™ is a trademark or registered trademark of the CompactFlash Association

The high-resolution 40.2MP X-Trans CMOS 5 HR sensor has an enhanced image-processing algorithm that boosts resolution without compromising the signal-to-noise ratio, delivering astonishing image quality. Coupled with the high maximum magnification ratio of the APS-C sensor, macro images at 40.2MP record details with striking clarity, including those undetectable to the naked eye.

Image: Norifumi Inagaki

Improved Speeds & ISO Performance

X-H2 has maximum electronic shutter speed of 1/180,000, an increase of approximately 2.5 stops compared to other X Series cameras. Use it with wide apertures in extremely bright environments for more creative options, or make it freeze action at the perfect millisecond. The X-Trans CMOS 5 HR has an improved pixel structure, allowing light to be received more efficiently. ISO 125 – previously an extended sensitivity – is now available as standard sensitivity.

160MP Pixel Shift Multi Shot & HEIF Image Format

The first X Series to feature Pixel Shift Multi Shot, X-H2, with the help of the Pixel Shift Combiner software, can produce a single, ultra-high-resolution 160MP image with a single touch of the shutter button.

Using its in-body stabilisation system to shift the sensor by a half pixel between each frame, X-H2 precisely makes 20 frames to ensure that every red, green, and blue pixel has the same information. The result is a final image with almost no false colours visible. X-H2 supports the HEIF image format, which delivers 10-bit image quality in files up to 30% smaller than standard JPEGs. The next chapter in delivering high-quality results straight out of camera has officially begun for X Series.

In addition to creating 40.2MP high resolution stills, X-H2 can also record exceptional 8K/30P video in 4:2:2 10-bit colour that can be recorded internally either to a SD or Cfexpress Type B memory card.

Apple ProRes Support

X-H2 supports Apple ProRes 422 HQ, ProRes 422, and ProRes 422 LT. ProRes 422 Proxy is also available when recording ProRes^*, making it easier to editing 8K video and streamline post-production workflows.

*Proxy not available for 8K/30P and 8K/25P recording.
8K Oversampled 4K HQ Mode
A new 4K HQ mode creates 4K video with 8K oversampling, resulting in a high quality image that takes full advantage of the the camera’s 40.2MP sensor.

Improved Video Recording Time

X-H2 uses the same heat-dissipating structure as X-H2S and can record 8K/30P for approximately 160 minutes.^*
- *When recording video at 25℃ from a cool start, with the auto power-off temperature set on High, H.265 4:2:0, a bitrate of 200Mbps, and vertical battery grip VG-XH using three batteries attached. The recording duration depends on remaining battery charge and the type and capacity of the memory card used. When the main unit heats up, filming may automatically stop.
- New MF Assist「Focus Meter」
  X-H2 features a focus meter that can be used for MF assist during movie recording to enable more precise focus adjustments. It can also be used in combination with focus peaking.

  F-Log2 Support

  In addition to F-Log, X-H2 also supports F-Log2, which records an expanded dynamic range of 13+ stops.^* This range is wider than current F-Log, broadening post-production potential.
  - *When recording F-Log2, based on Fujifilm internal testing.
  - RAW Output via HDMI

    Combined with a compatible HDMI recording device from Atomos or Blackmagic Design, 12-bit RAW video output from X-H2 can be recorded as Apple ProRes RAW or Blackmagic RAW at resolutions and frame rates of up to 8K and 29.97 frames per second.

    Subject-Detection Autofocus

    X-Processor 5 features subject-detection AF based on Deep Learning technology that automatically detects and tracks a broad range of subjects, including animals, birds, cars, motorcycles, bicycles, airplanes, and trains – as well as human faces and eyes. Image-makers can concentrate on composition and creativity, confident that X-H2 will track focus accurately. X-H2’s higher pixel count increases the number of phase detection pixels, which improves AF-S focusing accuracy on subjects including landscapes and portraits. The camera also incorporates an improved AF prediction algorithm, newly developed for the X-H2S, enabling stable focusing even when using AF-C. The X-H2S excels in moving object tracking utilising the performance of the stacked sensor, while the X-H2 excels in accurate AF for static subjects.

    Image: Fujifilm

    Up to seven stops of in-body image
    stabilisation

    A 5-axis in-body image stabilisation system offers up to seven stops of compensation. This powerful feature, made possible by X-Processor 5 and a sensing control function, gives the freedom to handhold in conditions that previously would have required support. In addition, the in-body image stabilisation function enables the image sensor to be precisely shifted, for the camera’s Pixel Shift Multi Shot function.

Model name		FUJIFILM X-H2
Lens Mount		FUJIFILM X mount
Image sensor		23.5mm x 15.6mm (APS-C) X-Trans CMOS 5 HR with primary color filter
Number of effective pixels		40.2 millions pixels
Sensor Cleaning System		Ultra Sonic Vibration
Image Processing Engine		X-Processor 5
Storage media		SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 / CFexpress Type B Card (-2TB) Please check Compatibilityfor more detail. Please check the list of the operation confirmed CFexpress Type B Card
File format of still image	DCF	Compliant with Design rule for Camera File system (DCF2.0)
	JPEG	Exif Ver.2.32^*1
	HEIF	4:2:2 10bit
	RAW	14bit RAW (RAF original format)
	TIFF	8bit / 16bit RGB (In-camera Raw Conversion Only)
Number of recorded pixels	［L］	〈4:3〉 6864 x 5152 〈3:2〉 7728 x 5152 〈16:9〉 7728 x 4344 〈1:1〉 5152 x 5152 〈5:4〉 6432x5152
	［M］	〈4:3〉 4864 x 3648 〈3:2〉 5472 x 3648 〈16:9〉 5472 x 3080 〈1:1〉 3648 x 3648 〈5:4〉 4560x3648
	［S］	〈4:3〉 3456 x 2592 〈3:2〉 3888 x 2592 〈16:9〉 3888 x 2184 〈1:1〉 2592 x 2592 〈5:4〉 3264x2592
Panorama	［L］	〈vertical〉 9600 x 2160 〈Horizontal〉 9600 x 1440
	［M］	〈vertical〉 6400 x 2160 〈Horizontal〉 6400 x 1440
Digital Tele-Converter		2.0x / 1.4x / OFF
Sensitivity	Still Image	Standard Output: AUTO1 / AUTO2 / AUTO3 /ISO125-12800 (1/3 step) Extended Output: ISO64 / ISO80 / ISO100 / ISO25600 / ISO51200
	Movie	Standard Output: AUTO / ISO125-12800 (1/3 step) Extended Output: ISO25600
Exposure control		TTL 256-zone metering / Multi / Spot / Average / Center Weighted
Exposure mode		P (Program AE) / A (Aperture Priority AE) / S (Shutter Speed Priority AE) / M (Manual Exposure)
Exposure compensation	Still	-5.0EV - +5.0EV　1/3EV step
	Movie	-2.0EV - +2.0EV 1/3EV step
Image stabilizer	Mechanism	Image sensor shift mechanism with 5-axis compensation
	Compensation Effect	7.0 stops based on CIPA standard Pitch/yaw shake only *With XF35mmF1.4 R lens mounted
	Digital Image Stabilization	Yes (movie mode only)
	IS MODE BOOST	Yes (movie mode only)
Shutter type		Focal Plane Shutter
Shutter speed	Mechanical shutter	P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min.
	Electronic shutter	P mode: 4sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: 1sec. Fixed *The shutter speed ranges for continuous mode may differ from those listed here.
	Electronic front curtain shutter	P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min.
	Mechanical + Electronic shutter	P mode: 4sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: up to 60min. Mechanical shutter works until 1/8000sec. The shutter speed ranges for continuous mode may differ from those listed here.
	E-front + Mechanical shutter	P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min. *Electronic front curtain shutter works until 1/2000sec.
	E-front + Mechanical + Electronic shutter	P mode: 4sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: up to 60min. Electronic front curtain shutter works until 1/2000sec, Mechanical shutter works until 1/8000sec. The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting. Flash cannot be used. *The shutter speed ranges for continuous mode may differ from those listed here.
	Movie	8K: 1/8000sec. to 1/24 sec. 6.2K: 1/8000sec. to 1/24 sec. DCI4K/4K: 1/8000sec. to 1/4 sec. FHD: 1/8000sec. to 1/4 sec. *Cannot choose slower shutter speed than framerate for some settings.
	Synchronized shutter speed for flash	Mechanical shutter: 1/250sec. or slower
Continuous shooting		CH Electronic shutter Approx. 20fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 202 frames, Compressed RAW + JPEG 129 frames, Lossless compressed RAW + JPEG 95 frames, Uncompressed RAW + JPEG 90 frames) CH Electronic shutter Approx. 13fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW + JPEG 372 frames, Lossless compressed RAW + JPEG 361 frames, Uncompressed RAW + JPEG 223 frames) CH Electronic shutter Approx. 10fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW + JPEG 1000+ frames, Lossless compressed RAW + JPEG 1000+ frames, Uncompressed RAW + JPEG 1000+ frames) CH Electronic shutter Approx. 13fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 131 frames, Lossless compressed RAW+JPEG 131 frames, Uncompressed RAW+JPEG 127 frames) CH Electronic shutter Approx. 8.9fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 769 frames, Lossless compressed RAW+JPEG 751 frames, Uncompressed RAW+JPEG 302 frames) CH Mechanical shutter Approx. 15fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 400 frames, Compressed RAW+JPEG 110 frames, Lossless compressed RAW+JPEG 108 frames, Uncompressed RAW+JPEG 104 frames) CH Mechanical shutter Approx. 10fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 512 frames, Lossless compressed RAW+JPEG 492 frames, Uncompressed RAW+JPEG 223 frames) CH Mechanical shutter Approx. 7.0fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 1000+ frames, Lossless compressed RAW+JPEG 1000+ frames, Uncompressed RAW+JPEG 1000+ frames) Pre-shot Electronic shutter Approx. 20fps (1.29x Crop) (While half press 20 frames, After full press 1000+ frames) Pre-shot Electronic shutter Approx. 13fps (1.29x Crop) (While half press 13 frames, After full press 1000+ frames) Pre-shot Electronic shutter Approx. 10fps (1.29x Crop) (While half press 10 frames, After full press 1000+ frames) Pre-shot Electronic shutter Approx. 13fps (While half press 13 frames, After full press 1000+ frames) No. of recordable frames are calculated based on CFexpress Type B card in a cold start Recordable frames depends on recording media *Speed of continuous shooting depends on shooting environment and shooting frames
Drive Mode	AE Bracketing	2 frames / 3 frames / 5 frames / 7 frames / 9 frames *by 1/3EV step, up to ±3EV steps
	Filmsimulation bracketing	Any 3 types of film simulation selectable
	Dynamic Range Bracketing	100% / 200% / 400%
	ISO sensitivity Bracketing	±1/3EV / ±2/3EV / ±1EV
	White Balance Bracketing	±1 / ±2 / ±3
	Focus Bracketing	AUTO / MANUAL
	Multiple Exposure	Yes (Max. 9 frames) / Additive / Average / Bright / Dark
	HDR Mode	AUTO / 200% / 400% / 800% / 800% +
	Advanced filter	Toy camera / Miniature / Pop color / High-key / Low-key / Dynamic tone / Soft focus / Partial color (Red / Orange / Yellow / Green / Blue / Purple)
	Pixel Shift Multi Shot	Yes
Focus	Mode	Single AF / Continuous AF / MF
	Type	Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)
	Low-light Performance	Contrast: -4.0EV XF50mmF1.0 attached Phase Detection: -7.0EV XF50mmF1.0 attached
	AF frame selection	Single point AF: 13x9 / 25x17 (Changeable size of AF frame) Zone AF: 3x3 / 5x5 / 7x7 from 117 areas on 13×9 grid Wide/Tracking AF: Yes (AF-S: Wide / AF-C: Tracking) All: Yes
	Face/eye detection	Yes
	Subject detection	Yes (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train)
Flash	EF-X8	Guide Number: approx. 11 (ISO200・m) / approx. 8 (ISO100・m) Sync. Mode: 1st Curtain / 2nd Curtain Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF
	Shoe mount flash	Sync. Mode: 1st Curtain / 2nd Curtain / AUTO FP (HSS) Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / MULTI *When EF-X500 is set / OFF
	Synchronized terminal	Sync. Mode: 1st Curtain / 2nd Curtain Flash Mode: MANUAL
Hot shoe		Yes (Dedicated TTL Flash compatible)
Viewfinder		EVF: 0.5 inch OLED Color Viewfinder, Approx. 5.76 million dots Coverage of Viewing Area vs. Capturing Area: Approx. 100% Eyepoint: Approx. 24mm (from the Rear End of the Camera's Eyepiece) Diopter Adjustment: -5～+3m-1 Magnification: 0.80x with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1 Diagonal Angle of View: approx. 40° (Horizontal angle of view: approx. 32° ) Built-In Eye Sensor
LCD monitor		3.0 inch vari-angle Touch Screen Color LCD Monitor Aspect Ratio: 3:2 Dots: Approx. 1.62 million dots
Touch Screen Mode	Shooting Mode	Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), Touch Zoom (ON/OFF), EVF Touch Screen Area Setting
	Playback Mode	Swipe, Pinch-in / Pinch-out, Double-tap, Drag
Sub LCD monitor		1.28 inch Monochrome LCD Monitor Aspect Ratio: 1:1 Dots: 128x128-dot
Movie recording	File format	MOV: Apple ProRes 422 HQ, Linear PCM (Stereo sound 24bit / 48KHz sampling) Apple ProRes 422, Linear PCM (Stereo sound 24bit / 48KHz sampling) Apple ProRes 422 LT, Linear PCM (Stereo sound 24bit / 48KHz sampling) HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling) MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling) MP4: MPEG-4 AVC/H.264, AAC
	Movie compression	All Intra / Long GOP
	File size Frame rate Bitrate	[8K(16:9)] 7680 x 4320　29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps [6.2K(16:9)] 6240 x 3510　29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps [DCI4K HQ(17:9)] 4096 x 2160　29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps [4K HQ(16:9)] 3840 x 2160　29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps [DCI4K(17:9)] 4096 x 2160　59.94p/50p/29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps [4K(16:9)] 3840 x 2160　59.94p/50p/29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps [Full HD(17:9)] 2048 x 1080　59.94p/50p/29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps [Full HD(16:9)] 1920 x 1080　59.94p/50p/29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps [Full HD(17:9) High speed rec.] 2048 x 1080　240p/200p/120p/100p　720Mbps(recording)/360Mbps(recording)/200Mbps(recording) [Full HD(16:9) High speed rec.] 1920 x 1080　240p/200p/120p/100p　720Mbps(recording)/360Mbps(recording)/200Mbps(recording) For recording movies, use a CFexpress Type B card or SD memory card with UHS Speed Class 3 or higher. For recording movies in 360Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 60 or higher. For recording movies in 720Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 90 or higher. Selectable bitrate will be changed depends on the setting. Apple ProRes codec can be only recorded to CFexpress Type B card Bitrate for Apple ProRes codec is not selectable. *Recording time can become short depending on the temperature and/or shooting conditions
Film simulation mode		19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA/Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter, ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia)
Monochromatic Color		Yes
Grain Effect	Roughness	STRONG, WEAK, OFF
	Size	LARGE, SMALL
Color Chrome Effect		STRONG, WEAK, OFF
Color chrome Blue		STRONG, WEAK, OFF
Smooth Skin Effect		STRONG, WEAK, OFF
Dynamic range setting	Still	AUTO / 100％ / 200％ / 400％ ISO restriction: DR100%: No limit、DR200%: ISO250 or more、DR400%: ISO500 or more
	Movie	100％ / 200％ / 400％ ISO restriction: DR100%: No limit、DR200%: ISO250 or more、DR400%: ISO500 or more
White balance	Auto	White Priority / Auto / Ambience Priority
	Custom	Custom1 - 3
	Color temperature selection	2500K-10000K
	Preset	Daylight / Shade / Fluorescent Light-1 / Fluorescent Light-2 / Fluorescent Light-3 / Incandescent Light / Underwater
Clarity setting		±5 steps
Self-timer		10sec. / 2sec.
Interval timer shooting		Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing)
Wireless transmitter	Standard	IEEE802.11a/b/g/n/ac (standard wireless protocol)
	Encryption	WPA/WPA2 mixed mode, WPA3
	Access mode	Infrastructure
Bluetooth®	Standartd	Bluetooth Ver. 4.2 (Bluetooth low energy)
	Operating frequency (Center frequency)	2402 - 2480MHz

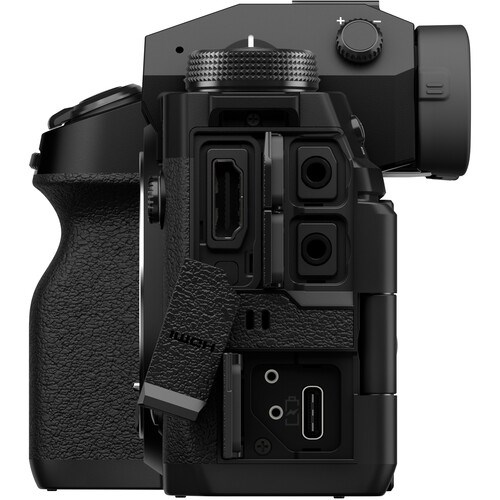

Terminal	Digital interface	USB Type-C (USB3.2 Gen2x1)
	HDMI output	HDMI connector (Type A)
	Others	ø3.5mm, stereo mini connector (Microphone) ø3.5mm, stereo mini connector (Headphone) ø2.5mm, Remote Release Connector Hot shoe Synchronized terninal
Power supply		NP-W235 Li-ion battery (included)
	Battery life for still images^*2	Economy Mode: Approx. 680 frames Normal Mode: Approx. 540 frames *When XF35mmF1.4 R is set
	Actual battery life of movie capture^*2	8K: Approx. 70min. (29.97p) 4K: Approx. 75min. (59.94p) Full HD: Approx. 85min. (59.94p), Approx. 90min. (120P) *Face detection is set to OFF
	Continuance battery life of movie capture^*2	8K: Approx. 100min. (29.97p) 4K: Approx. 120min. (59.94p) Full HD: Approx. 140min. (59.94p) *Face detection is set to OFF
Dimensions		Width: 136.3mm Height: 92.9mm Depth: 84.6mm (Minimum Depth: 42.8mm)
Weight		including battery and memory card: Approx. 660g excluding battery and memory card: Approx. 579g
Operation Environment	Operating Temperature	-10℃ - +40℃
	Operating Humidity	10% - 80% (no condensation)
Starting up period		Approx. 0.49sec.
Accessories included		Li-ion battery NP-W235 AC power adapter AC-5VJ Plug adapter USB cable Shoulder strap Body cap Hot shoe cover File transmitter/vertical battery grip connector cover Memory card slot cover Sync terminal cover Cooling fan connector cover Cable protector

*1 Exif 2.32 is a digital camera file format that contains a variety of shooting information for optimal printing
*2 Approximate number of frames or movie recording time that can be taken with a fully-charged based on CIPA Standard.

Movie Specification

Media Rec (CFexpress Type B card / SD memory card)

Resolution/Aspect	Size	Frame rate	File format/Compression	Bit rate*2	Bit depth	HDMI output Resolution(Frame rate)/Sampling/Bit depth	Crop Magnification
Resolution/Aspect	Size	Frame rate	File format/Compression	Bit rate*2	Bit depth	HDMI output Resolution(Frame rate)/Sampling/Bit depth	DIS ON	DIS OFF
8K 16:9	7680 x 4320	29.97p 25.00p 24.00p 23.98p	ProRes 422 HQ MOV*1	3520Mbps(29.97p)*3	10bit	FHD 4:2:2 10bit*4	Not possible	1.0x
			ProRes 422 MOV*1	2352Mbps(29.97p)*3
			ProRes 422 LT MOV*1	1632Mbps(29.97p)*3
			H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV	720Mbps 360Mbps		FHD 4:2:2 10bit (When H.265 All-Intra 4:2:2 MOV selected)4 4K 4:2:2 10bit (When H.265 All-Intra 4:2:0 MOV selected)4	Not possible	1.0x
			H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	720Mbps 360Mbps 200Mbps 100Mbps 50Mbps		FHD 4:2:2 10bit (When H.265 Long GOP 4:2:2 MOV selected)4 4K 4:2:2 10bit (When H.265 Long GOP 4:2:0 MOV selected)4	Not possible	1.0x
6.2K 16:9	6240 x 3510	29.97p 25.00p 24.00p 23.98p	ProRes 422 HQ MOV*1	2324Mbps(29.97p)*3	10bit	FHD 4:2:2 10bit*4	Not possible	1.0x
			ProRes 422 MOV*1	1553Mbps(29.97p)*3
			ProRes 422 LT MOV*1	1077Mbps(29.97p)*3
			H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV	720Mbps 360Mbps		FHD 4:2:2 10bit (When H.265 All-Intra 4:2:2 MOV selected)4 4K 4:2:2 10bit (When H.265 All-Intra 4:2:0 MOV selected)4	Not possible	1.0x
			H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	720Mbps 360Mbps 200Mbps 100Mbps 50Mbps		FHD 4:2:2 10bit (When H.265 Long GOP 4:2:2 MOV selected)4 4K 4:2:2 10bit (When H.265 Long GOP 4:2:0 MOV selected)4	Not possible	1.0x
DCI4K HQ 17:9 4K HQ 16:9	4096 x 2160 3840 x 2160	29.97p 25.00p 24.00p 23.98p	ProRes 422 HQ MOV*1	939Mbps(DCI 4K 29.97p)*3	10bit	DCI4K/4K 4:2:2 10bit	Not possible	1.0x
			ProRes 422 MOV*1	627Mbps(DCI 4K 29.97p)*3
			ProRes 422 LT MOV*1	435Mbps(DCI4K 29.97p)*3
			H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV	720Mbps 360Mbps			Not possible	1.0x
			H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	720Mbps 360Mbps 200Mbps 100Mbps 50Mbps			Not possible	1.0x
			H.264 All-Intra 4:2:0 MOV	360Mbps	8bit	DCI4K/4K 4:2:2 8bit	Not possible	1.0x
			H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4	360Mbps 200Mbps 100Mbps 50Mbps	8bit	DCI4K/4K 4:2:2 8bit	Not possible	1.0x
DCI4K 17:9 4K 16:9	4096 x 2160 3840 x 2160	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	ProRes 422 HQ MOV*1	1877Mbps(DCI4K 59.94p)*3	10bit	DCI4K/4K 4:2:2 10bit	Not possible	59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x
			ProRes 422 MOV*1	1254Mbps(DCI4K 59.94p)*3
			ProRes 422 LT MOV*1	870Mbps(DCI4K 59.94p)*3
			H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV	720Mbps 360Mbps			1.1x	59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x
			H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	720Mbps 360Mbps 200Mbps 100Mbps 50Mbps			1.1x	59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x
			H.264 All-Intra 4:2:0 MOV	360Mbps	8bit	DCI4K/4K 4:2:2 8bit	1.1x	1.0x
			H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4	360Mbps 200Mbps 100Mbps 50Mbps	8bit	DCI4K/4K 4:2:2 8bit	1.1x	1.0x
FHD 17:9 FHD 16:9	2048 x 1080 1920 x 1080	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	ProRes 422 HQ MOV*1	440Mbps(FHD16:9 59.94p)*3	10bit	FHD 4:2:2 10bit*5	Not possible	59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x
			ProRes 422 MOV*1	294Mbps(FHD16:9 59.94p)*3
			ProRes 422 LT MOV*1	204Mbps(FHD16:9 59.94p)*3
			H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV	720Mbps 360Mbps			1.1x	59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x
			H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	720Mbps 360Mbps 200Mbps 100Mbps 50Mbps			1.1x	59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x
			H.264 All-Intra 4:2:0 MOV	360Mbps	8bit	FHD 4:2:2 8bit*5	1.1x	59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x
			H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4	360Mbps 200Mbps 100Mbps 50Mbps	8bit	FHD 4:2:2 8bit*5	1.1x	59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x
High speed FHD 17:9 FHD 16:9	2048 x 1080 1920 x 1080	240fps(4×/8×/10×) 200fps(4×/8×) 120p (2x/4x/5x) 100p (2x/4x)	ProRes 422 HQ MOV*1	1760Mbps (when recording FHD16:9 240p)*3	10bit	FHD(59.94p) 4:2:2 10bit*6	Not possible	1.23x
			ProRes 422 MOV*1	1176Mbps (when recording FHD16:9 240p)*3
			ProRes 422 LT MOV*1	816Mbps (when recording FHD16:9 240p)*3
			H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV	720Mbps (when recording) 360Mbps (when recording)
			H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	720Mbps (when recording) 360Mbps (when recording) 200Mbps (when recording)
			H.264 All-Intra 4:2:0 MOV	360Mbps (when recording)	8bit	FHD(59.94p) 4:2:2 8bit*6
			H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4	360Mbps (when recording) 200Mbps (when recording)	8bit	FHD(59.94p) 4:2:2 8bit*6

HDMI Output

Resolution/Aspect	Size	Frame rate	HDMI output Resolution/Sampling/Bit depth	Crop Magnification
Resolution/Aspect	Size	Frame rate	HDMI output Resolution/Sampling/Bit depth	DIS ON	DIS OFF
8K 16:9	7680 x 4320	29.97p 25.00p 24.00p 23.98p	8K 4:2:2 10bit	Not possible	1.0x
6.2K 16:9	6240 x 3510	29.97p 25.00p 24.00p 23.98p	FHD 4:2:2 10bit*4	Not possible	1.0x
DCI4K HQ 17:9 4K HQ 16:9	4096 x 2160 3840 x 2160	29.97p 25.00p 24.00p 23.98p	DCI4K/4K 4:2:2 10bit	Not possible	1.0x
DCI4K 17:9 4K 16:9	4096 x 2160 3840 x 2160	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	DCI4K/4K 4:2:2 10bit	1.1x	59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x
FHD 17:9 FHD 16:9	2048 x 1080 1920 x 1080	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	FHD 4:2:2 10bit *5	1.1x	59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x

HDMI Output (High speed REC HDMI ONLY）

Resolution/Aspect	Size	Frame rate	HDMI output Resolution(Frame rate)/Sampling/Bit depth			Crop Magnification
Resolution/Aspect	Size	Frame rate	HDMI output Resolution(Frame rate)/Sampling/Bit depth			DIS ON	DIS OFF
FHD 16:9	1920 x 1080	120p 100p	FHD(120p/100p) 4:2:2 10bit			Not possible	1.23x

HDMI RAW Output

Resolution/Aspect	Size	Frame rate		Crop Magnification
Resolution/Aspect	Size	Frame rate		DIS ON	DIS OFF
8K 16:9	7680 x 4320	29.97p 25.00p 24.00p 23.98p		Not possible	1.0x

*1 ProRes codec can be recorded to only CFexpress Type B card
*2 Bit rate will be changed depend on the subject
*3 Bit rate for ProRes codec can not be selected
*4 The resolution from HDMI output is different from selected setting
*5 When the aspect ratio is not 16:9, the image is output in 16:9 with a black band.
*6 The frame rate from HDMI output is different from selected setting
