| Year Introduced |
1999 |
|
| Mounts On |
Full Frame, APS-C |
|
| Lenses / Groups |
16/13 |
|
| Angle of View: Diagonal |
34° – 12° |
|
| Angle of View: Horizontal |
29° – 10° |
|
| Angle of View: Vertical |
19°30' – 7° |
|
| |
| Aperture Range - Wide / Long |
f/4.0-32 |
|
| Number of Aperture Blades |
8 |
|
| Rounded Aperture? |
|
|
| |
| Manufacturer Specification Weight |
24.9 oz (705g) |
|
| Actual Weight |
25.2 oz (715g) |
|

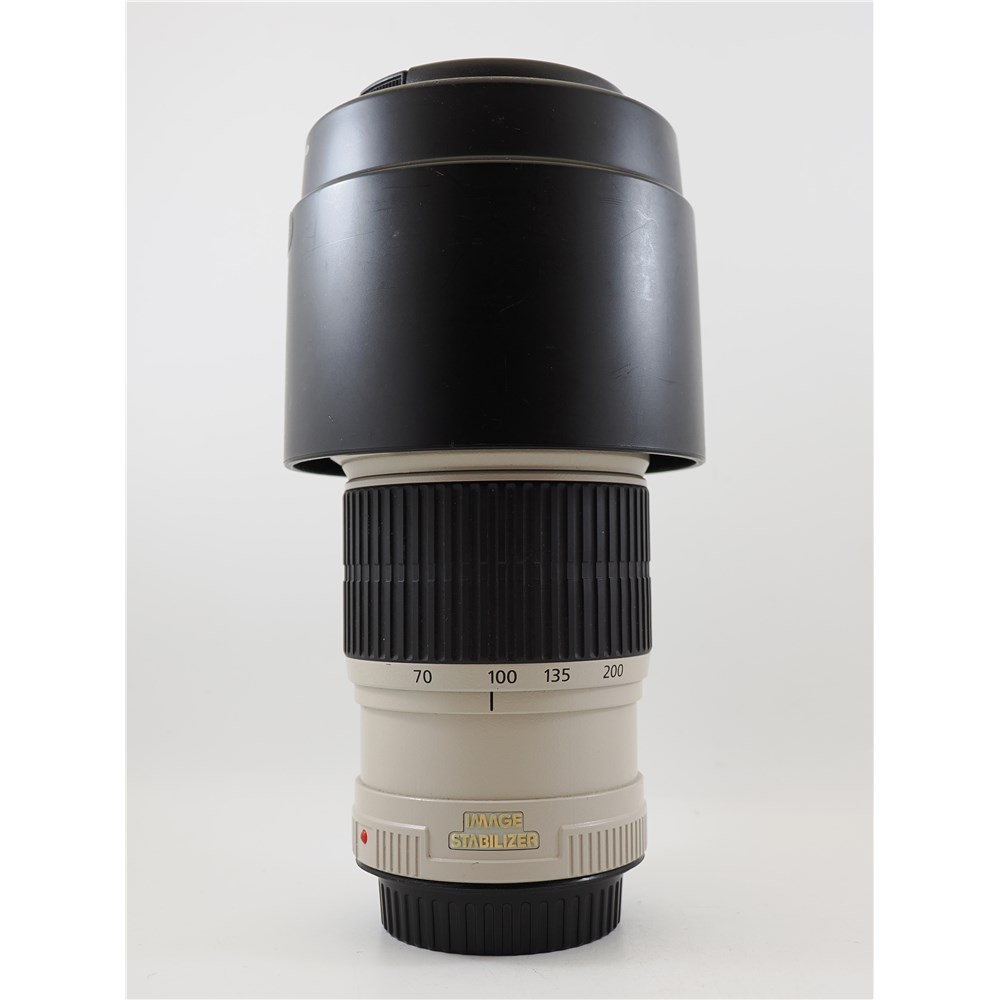

| Lens Hood Weight |
2.5 oz (70g) |
|
| Tripod Ring Weight |
4.9 oz (139g) |
|
| In-Use Weight |
32.6 oz (924g) |
|
| |
| Manufacturer Spec Size (DxL) |
2.99 x 6.77” (76 x 172mm) |
|
| Measured Size (DxL) |
2.99 x 7.08” (76 x 179.8mm) |
|
| Max Diameter at Tripod Ring |
3.9” (98.3mm) |
|
| Max Length at Full Extension |
7.08” (179.8mm) |
|
| Internal Zoom? / Extends with Zoom? |
Y / N |
|
| Internal Focusing? / Extends with Focusing? |
Y / N |
|
| Lens Hood Size (DxL) |
3.94 x 3.15” (100 x 80mm) |
|
| Lens Length with Hood (Min-Max) |
9.99 - 9.99” (253.8 - 253.8mm) |
|
| Size of Rings: Focus / Zoom |
1.59” / 1.95” (40.3mm / 49.5mm) |
|
| Filter Size |
67mm UV ► CP ► |
|
| Front Element (Filter Mount) Rotates |
N |
|
| |
| AF Motor Type |
Ring USM |
|
| Full Time Manual Focus |
Y |
|
| Focus Ring Rotation |
130° |
|
| Focus Limiter? / Focus Limiter Ranges |
|
|
| Distance Scale? / Type |
Y / Window |
|
| |
| Specified Min Focus Distance |
47.24” (1200mm) |
|
| Tested Min Focus Distance (Wide / Long) |
47.2” / 47.05” (1199mm / 1195mm) |
|
| Maximum Magnification (MM) |
0.21x |
|
| Magnification Range with 12mm Ext Tube |
0.21-0.04x |
|
| Magnification Range with 25mm Ext Tube |
0.39-0.09x |
|
| |
| Zoom Ring Rotation |
60° |
|
| Tripod Ring Included? / Removable? |
O / Y |
|
| Zoom Ring Lock Switch? |
N |
|
| Lens Hood Included / Model? |
Y / ET-74 Buy ► |
|
| Weather Sealed? / Filter Required? |
N |
|
| Image Stabilization? / Stops? / Tripod Sensing? |
N |
|
| Extender Compatible? |
Y |
|
| Case Included? / Type? |
Y / LP1224 Buy ► |
|
| 47.25" x 31.5" Subject Framing Distance |
70mm = 8.78'
85mm = 10.38'
100mm = 12.16'
135mm = 16.07'
200mm = 22.64'
280mm = 30.22' (w/ 1.4x)
400mm = 43.70' (w/ 2.0x) |
|
| 1200mm x 800mm Subject Framing Distance |
70mm = 2676mm
85mm = 3163mm
100mm = 3706mm
135mm = 4899mm
200mm = 6902mm
280mm = 9212mm (w/ 1.4x)
400mm = 13319mm (w/ 2.0x) |
