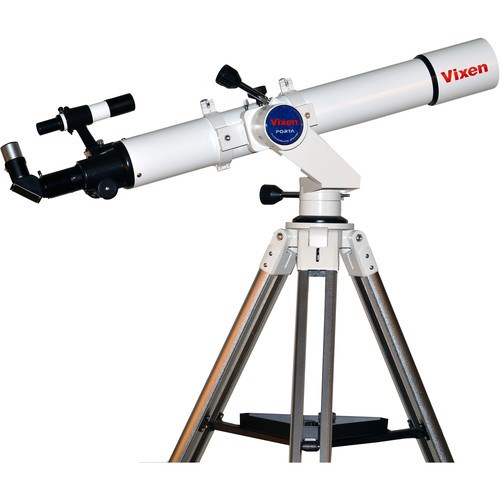

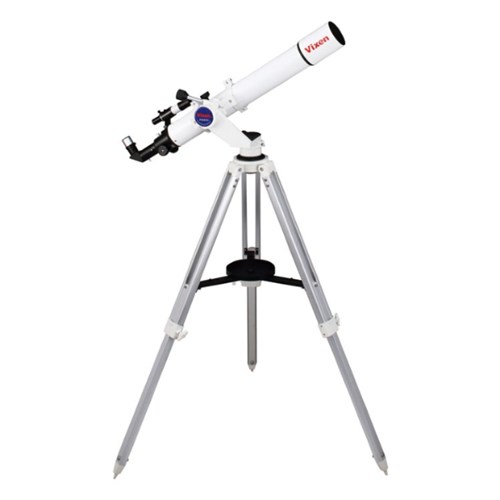

Vixen Porta II A80Mf 80mm x 910mm Refractor Scope

116063

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
My Store:
Change Store
Shipping Delay - ETA 4-8 Weeks
  • Product Description
  • Specifications
  • What's in the Box?

Vixen Porta II-R30Sf 130x650mm Reflector Telescope

  • 80mm Achromatic Refractor
  • 910mm Focal Length, f/11 Focal Ratio
  • 1.25" Rack-and-Pinion Focuser
  • 1.25" 6.3mm and 20mm Eyepieces
  • Two Eyepieces, 90° Erecting Prism
  • 6x30mm Finderscope with Bracket
  • Porta II Tall Alt-Azimuth Mount
  • Large Control Knobs
  • Alt-Azimuth Worm-Gear Tension Adjustment
  • 2-Section Aluminum Tripod
  • 80mm objective
  • f/11 focal ratio
  • 910mm focal length
  • Refractor-style optical path
  • Achromatic lens configuration corrects spherical and chromatic aberrations to produce distortion-free high-contrast images with true color representation
  • Fully coated optics produce bright and clear images with true color rendition
  • Resolution: 1.45 arcsec

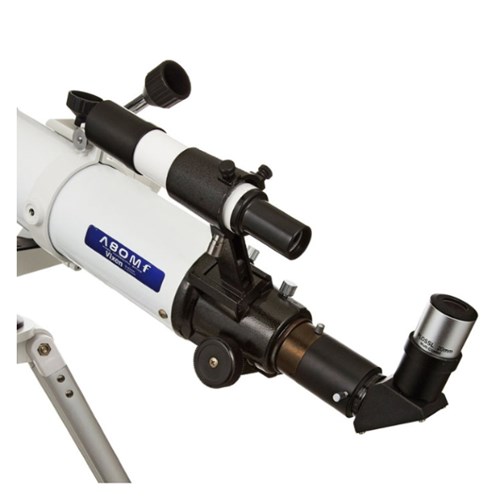

  • Rack-and-pinion focuser with 1.25" focusing tube
  • Standard 42mm T-thread for prime-focus astrophotography; optional camera-specific T-ring required
  • Dew/sun shield reduces interference from peripheral terrestrial light and limits condensation on objective
Optical Design Achromatic Refractor
Aperture 80 mm / 3.2"
Focal Length 910 mm
Focal Ratio f/11.4
Eyepiece Barrel Diameter 1.25"
Diagonal 90° Erecting
Finderscope Yes
Mounting System Vixen Style
General
Wi-Fi No
Weight 7.6 lb / 3.5 kg
Packaging Info
Package Weight 9 lb
Box Dimensions (LxWxH) 39 x 9 x 9"
Vixen Optics Porta II Tall Alt-Azimuth Mount Specs
Mount
Mount Type Manual; Alt-Azimuth
GoTo Capability No
Payload Capacity 20 lb / 9 kg
Motor None
Altitude Adjustment 360°
Latitude Adjustment 360°
Polar Axis Scope None
Tripod
Height Adjustment Range 40 to 67" / 102 to 170 cm
Leg Sections 2
Materials Aluminum Alloy
General
Mounting System Vixen Style
GPS No
Wi-Fi None
Dimensions Not Specified by Manufacturer
Weight 15 lb / 6.8 kg (with Tripod)

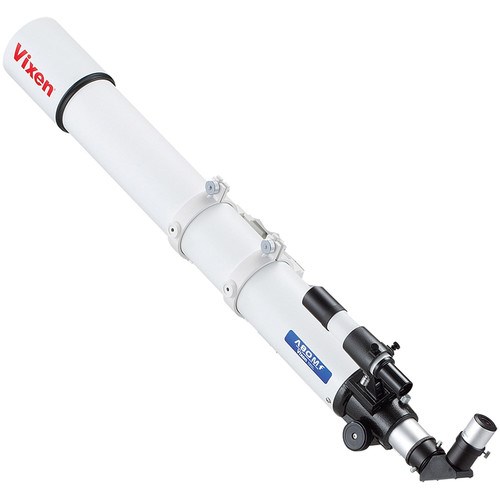

  • Vixen Optics A80Mf 80mm f/11 Achro Refractor Telescope (OTA Only)

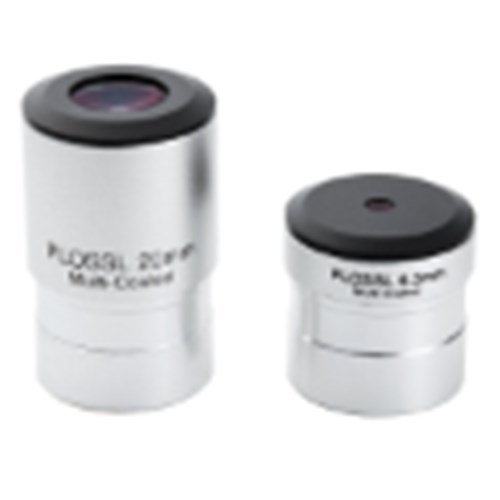

  • 20mm Eyepiece
  • 6.3mm Eyepiece
  • 6x30 Finderscope
  • 90° Erect-Image Prism
  • Set of Mounting Rings
  • Dew Shield
  • Limited 5-Year Warranty
  • Vixen Optics Porta II Tall Alt-Azimuth Mount
  • Tripod
  • Accessory Tray
  • Allen Wrench Tool Set
  • 2 x Flexible Tracking Handles
