Sony V Lock Extension Unit

Key Features
  • Add Additional I/O to PXW-FX9 Camera
  • Compatible with XDCAM Air Streaming
  • REF, Raw Video & Timecode BNC Outputs
  • Wired LAN, 2 x USB Type-A Outputs
  • Adds ENG Shoulder Mount Capability
  • 4-Pin XLR 10 to 12.5 VDC Power Output
  • Enables ENG-style shoulder mounting for FX9
  • Multi-pin V-lock-type camera mount
  • 4-pin XLR DC output

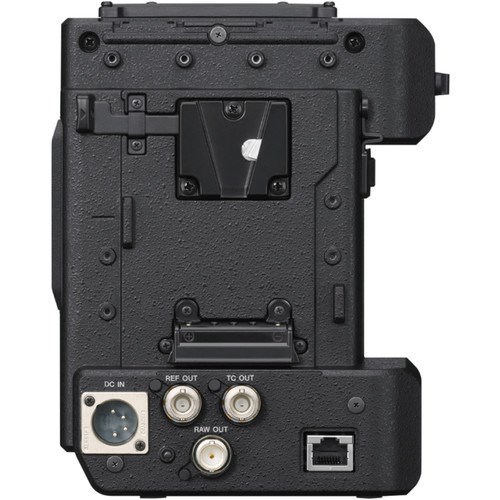

  • REF, timecode, and raw video BNC outputs
  • 2-pin light power output
  • D-Sub 15-pin port for wireless receiver
  • One LAN and two USB Type-A ports for live streaming and XDCAM Air capability

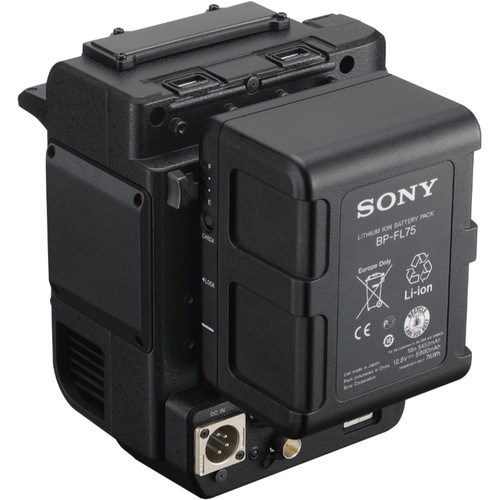

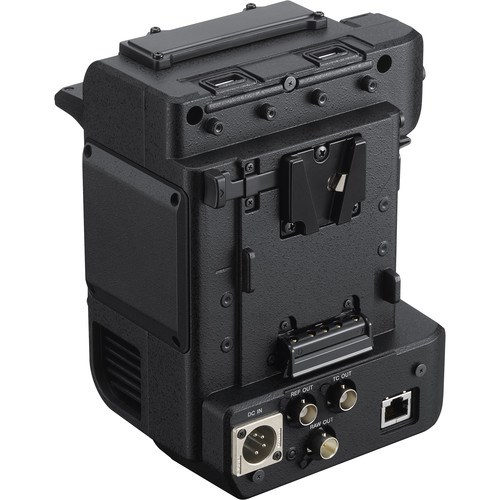

Add the XDCA-FX9 Extension Unit from Sony to the back of your PXW-FX9 camera to add an ENG-style shoulder mount and additional I/O and power to your camera. The unit features a 4-pin XLR DC power output to power accessories and other equipment, as well as three BNC outputs for raw video, a reference signal, and timecode. A LAN interface and two USB ports provide live streaming and file transfer abilities, as well as compatibility with XDCAM Air streaming playback.

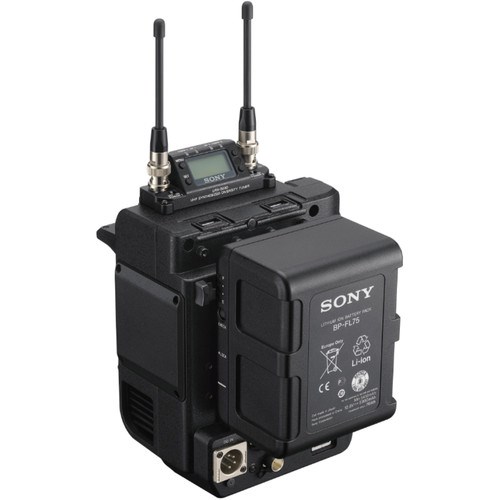

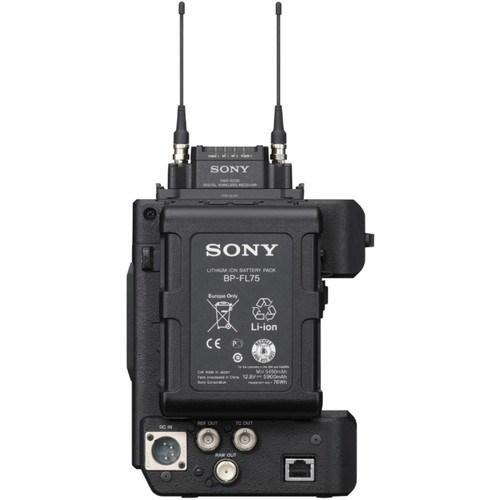

With the latest firmware update, the unit supports 16-bit raw 4K/2K recording output to compatible external recorders, as well as provide the functionality to a built-in wireless audio slot for DWX/UWP wireless receivers.

Camera Interface    Multi-Pin Camera Mount
Supported Video Formats    16-Bit Raw Video up to DCI 4K
LAN Connectors    1 x RJ45, 1000/100/10BASE-T
Video Outputs    1 x BNC, Raw
1 x BNC, Reference
1 x BNC, Timecode
Inputs    1 x D-SUB 15-Pin (Wireless Receiver)
Other Connectors    2 x USB Type-A
1 x 2-Pin, 20 VDC Light
Power Input    1 x 4-Pin XLR
Power Output    1 x 4-Pin LEMO-Type
10 to 12.5 VDC, 2 A
Power    12 VDC, 11 to 17 V
Power Consumption    43 to 69 W
Dimensions    6.9 x 6.2 x 5.4" / 177.3 x 157.3 x 136.5 mm
Weight    2.2 lb / 1 kg
Packaging Info
Package Weight    3.765 lb
Box Dimensions (LxWxH)    10.4 x 9.9 x 9.3"
Sony XDCA-FX9 Extension Unit for PXW-FX9 Camera
