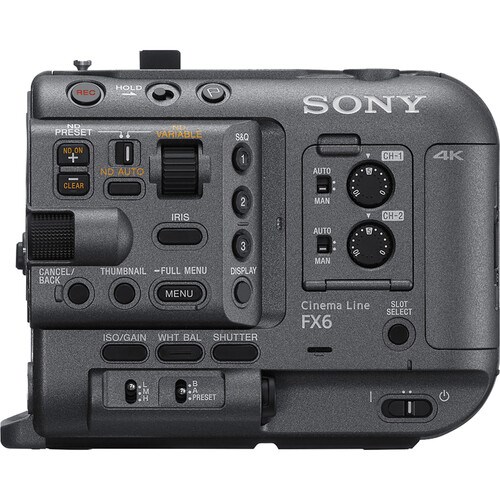

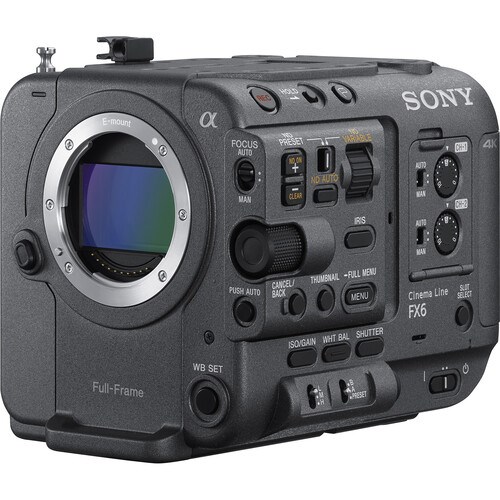

Sony Cinema Line FX6 Full Frame E-Mount Camera

Sony FX6 Cinema Line Full Frame E-Mount Camera (Body Only)

• 4K Full-Frame CMOS Exmor R Sensor
• 15+ Stops of Dynamic Range
• Wide ISO Range
• Electronically Variable ND Filters
• Advanced XAVC Codec Options
• High Frame Rate Selections
• Expressive Cinematic Look
• Fast Hybrid/Phase Detection Autofocus
• Image Stabilization and More with Catalyst and Metadata
• Touchscreen 3.5" LCD Control
• 4-Channel Audio Recording
• CFexpress Media Slots and Multiple Recording Modes

High Frame Rate Selections

• For slow-motion and fast action looks, choose from full-frame rates ranging from:
• 1-60 fps in HD to DCI 4K resolutions
• 100 or 120 fps in HD through UHD 4K
• 150, 180, 200, or 240 fps in Full HD

Super35 choices include:
1-60, 100, and 120 fps in Full HD

Image Sensor
Sensor Size Full-Frame
Sensor Type CMOS
Sensor Resolution Actual: 12.9 Megapixel
Effective: 10.2 Megapixel
Color Filter Bayer
Shutter Type Rolling Shutter
ISO 800 (Native)
12,800 (Expanded)
320 to 409,600 (Expanded)
Gain -3 to 30 dB
Advertised Dynamic Range 15 Stops
Camera
Lens Mount Sony E-Mount
Lens Communication Yes
Interchangeable Lens Mount None
Shutter Speed 1/1 to 1/8000 sec
Built-In ND Filter 1/4 to 1/128 Stop Electronic ND Filter
Built-In Microphone Type Stereo
Mono
Media/Memory Card Slot Dual Slot: CFexpress Type A / SD
Variable Frame Rates DCI 4K: 1 to 60 fps
UHD: 1 Up to 120 fps
1080p: 1 Up to 240 fps
Internal Recording
Recording Modes XAVC-I 4:2:2 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (240 to 600 Mb/s)
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (240 to 600 Mb/s)
1920 x 1980p at 23.98/25/29.97/50/59.94 fps (89 to 222 Mb/s)
XAVC-L 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 150 Mb/s)
XAVC-L 4:2:2 10-Bit:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
Gamma Curve HDR-HLG, S Cinetone, Sony S-Log, Sony S-Log 3
Audio Recording AVC-Intra: 2/4-Channel 24-Bit 48 kHz LPCM Audio
AVC-Long: 2/4-Channel 24-Bit 48 kHz LPCM Audio
Still Image Support Not Specified by Manufacturer
External Recording
Raw Output SDI/BNC In Raw Mode:
4096 x 2160 16-Bit at 23.98/24/25/29.97/50/59.94 fps
3840 x 2160 16-Bit at 23.98/25/29.97/50/59.94 fps
Interfaces
Video Connectors 1 x BNC (12G-SDI) Output
1 x HDMI Output
Audio Connectors 2 x 3-Pin XLR Mic/Line Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Other I/O 1 x BNC Timecode Input/Output
1 x USB Type-C
1 x USB Micro-B
1 x 2.5 mm Control
Wireless Interfaces 2.4 GHz, 5 GHz Wi-Fi
Display
Display Type Included External Touchscreen LCD
Size 3.5"
Resolution 1280 x 720 (2,760,000 Dot)
EVF
EVF Optional, Not Included
Power
Battery Type Sony BP-U Series
Power Connectors 1 x Barrel (19.5 VDC) Input
Power Consumption 18 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C

• Sony FX6 Full-Frame Cinema Camera (Body Only)
• Handle Unit
• 3.5" LCD Monitor
• Grip Remote Control
• Sony BP-U35 Lithium-Ion Battery Pack
• BC-CU1 Battery Cradle
• AC Adapter
• Power Cord
• USB Type-C Cable
• LCD Hood
• Cold Shoe Kit
• Lens Mount Cap
• Handle Connector Cap
