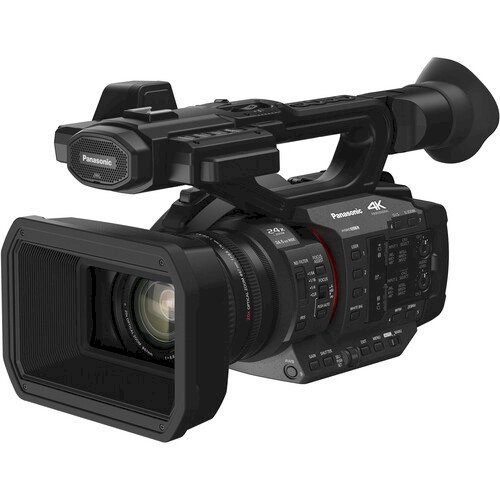

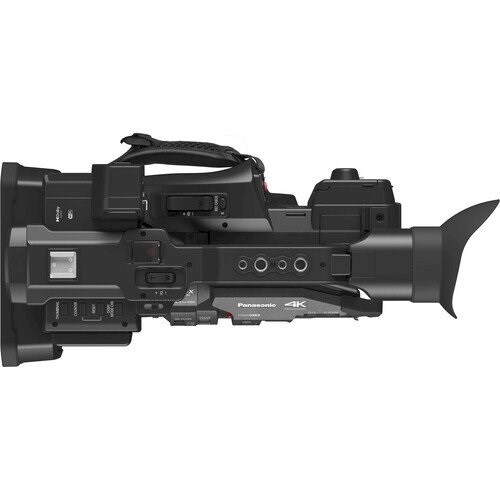

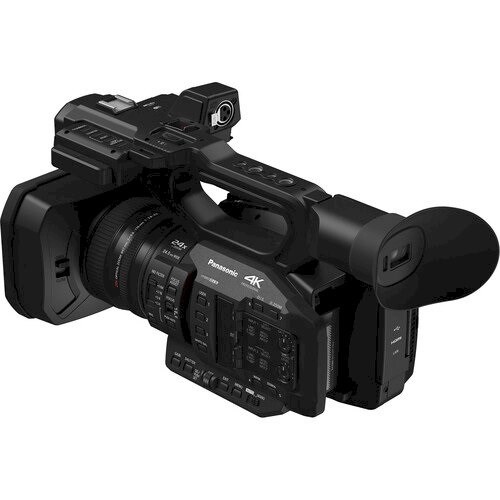

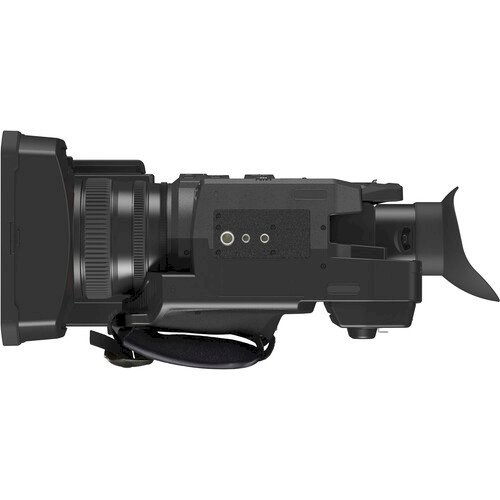

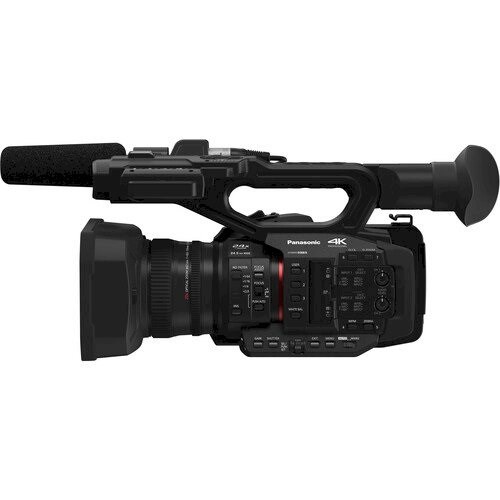

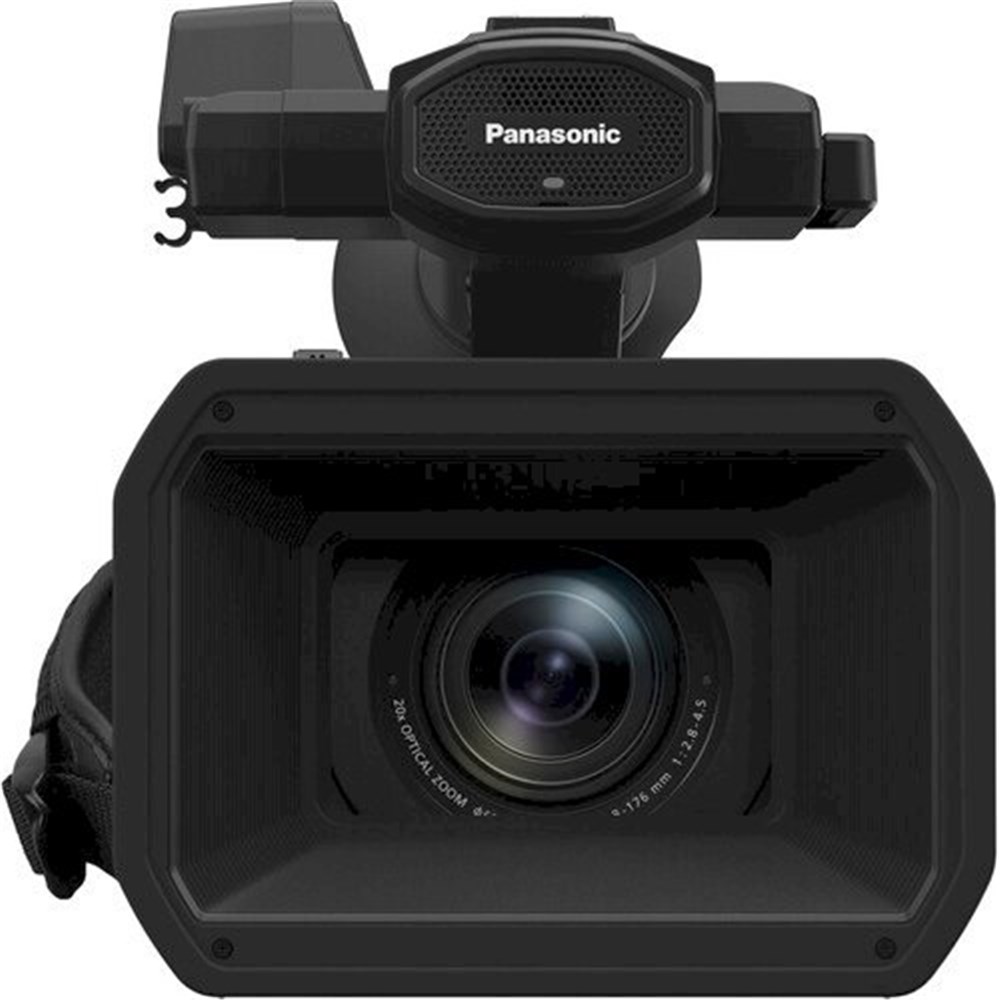

Panasonic HC-X2GC Video Camera

Panasonic HC-X2GC Video Camera

• Up to UHD 4K60 Video with Live Streaming
• 15MP 1" MOS Sensor, 5-Axis Hybrid OIS+
• Built-In Wi-Fi & Ethernet; HDMI/SDI Out
• XLR Audio Inputs; Timecode In/Out
• 20x Optical Zoom, 4K 24x/HD 32x i.Zoom
• Built-In ND Filters, 120 fps Slow Motion
• Up to 10-Bit UHD 4K60 4:2:0 & 4K30 4:2:2
• Records MP4, MOV, AVCHD to Dual SD Slots
• Wide 25.4mm Lens, 3.5" LCD Display
• High-Speed AF with Face Detection
• A 2.4 GHz Wi-Fi module is built-in, so there is no need to purchase a separate wireless LAN module. Wi-Fi connection is possible using only the main unit. A tablet/smartphone with the HC ROP (available for free on Apple's App Store or Google Play) can be used for wireless remote control. The app can be used to control up to eight cameras. There is also a built-in Ethernet connection so you can add the camera to a wired LAN.
• The 4-Drive Lens System simultaneously and independently drives 4 lens groups (group 2, iris, group 3, group 4). The lens size and drive range for each of the 4 groups can be efficiently suppressed to optimize image quality and zoom power, maintaining a compact body.
• In both UHD/FHD modes, in addition to Optical Image Stabilization (O.I.S.), Electronic Image Stabilization operates to detect and correct handshakes in the 5-axis direction, including rotational blurring. This provides powerful correction in unstable situations, such as low-angle and high-angle shooting.
• HDMI outputs up to 3840 x 2160 UHD 4K 4:2:2 10-bit and 3G-SDI outputs 1920 x 1080 FHD 4:2:2 10-bit, high image quality output, compatible with various applications and recorders.
• By moving the Micro Drive Focus Unit minutely and quickly, highly precise AF performance is also achieved when shooting in 4K or shooting with a shallow depth of field.
• ND filters are built into the lens to suppress the amount of incident light. The filters can be selected (1/4, 1/16, 1/64, or Clear) to match the shooting environment. This is convenient, for example, when you want to shoot at a slow shutter speed in bright daylight. Also, when opening the aperture, you can attain high resolution and a shallow depth of field.
• The optical 20x zoom lens features an optical zoom of 20x, a 24x maximum digital i.Zoom range in UHD 4K, and a maximum 32x digital i.Zoom in 1080p. The lens can quickly cover the entire zoom range, so you won't miss your shots.
• HD mode achieves a super-slow-motion effect with a maximum of 120 fps or 100 fps. It supports high-quality 10-bit recording in FHD mode. The image area is not cropped even at high frame rates.
• Two XLR inputs with switchable 48V phantom power supply/MIC/LINE. In MOV mode, 24-bit linear PCM recording delivers high-resolution sound quality. The volume control dial enables 2-channel control, and it also features an OSD level meter and a 3.5mm stereo headphone output.
• Double SD card slots are provided to enable unlimited relay recording by simply changing SD cards, and allow the use of various recording systems to ensure high recording reliability.

Bring your mobile sports, event, or multi-camera video productions into the world of 4K with the Panasonic HC-X2 4K Camcorder. Featuring a large 1" 15.03MP 4K sensor, the HC-X2 can record high-quality, professional-grade video in up to UHD 4K (3840 x 2160) 10-bit 4:2:2 resolutions. You can also record 1080p in VFR (variable frame rate) in 10 increments from 2 to 60 fps and record HD video in a super-slow-motion mode at a frame rate up to 120 fps. The X2 features numerous enhancements to its high-speed AF with face detection, HLG 13-stop dynamic range, a brighter monitor, UHD 4K image stabilization, timecode input and output, HDMI and 3G-SDI output, and built-in Ethernet and Wi-Fi.

Sensor Resolution

Effective: 15.03 Megapixel

Sensor Type

1"-Type MOS Sensor

Image Stabilisation

Optical in Integrated Lens, 5-Axis (Video Only)
Digital

Built-In ND Filter

Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Capture Type

Stills & Video

Shutter Type

Electronic Global Shutter

Shutter Speed

1/8000 to 1/6 Second

Precise Scan Rate Control

No

Minimum Illumination

0.2 Lux at 1/30 Shutter Speed

White Balance

2000 to 15,000K
Presets: ATW, Auto

Focal Length

8.8 to 176mm (35mm Equivalent Focal Length: 24.5 to 490mm)

Optical Zoom Ratio

20x

Max Digital Zoom

32x (in 1080p)
24x (in UHD 4K)

Maximum Aperture

f/4.5

Minimum Aperture

f/2.8

Filter Size

67 mm

Control Rings

Focus
Zoom
Iris

Focus Control

Autofocus
Manual Focus

Recording Modes

MOV 4:2:0 10-Bit
UHD 4K (3840 x 2160) up to 23.98p/25p/29.97PsF/50p/59.94p [100 to 200 Mb/s VBR]
MOV 4:2:0 8-Bit
UHD 4K (3840 x 2160) up to 23.98p/25p/29.97p/50p/59.94p [150 to 150 Mb/s VBR]
MOV 4:2:2 10-Bit
UHD 4K (3840 x 2160) up to 23.98p/25p/29.97p [150 Mb/s VBR]
Full HD (1920 x 1080) up to 23.98p/25p/29.97p/50i/50p/59.94p [50 to 200 Mb/s VBR]
MP4 4:2:0 10-Bit
UHD 4K (3840 x 2160) up to 23.98p/25p/29.97p/50p/59.94p [72 to 100 Mb/s VBR]
MP4 4:2:0 8-Bit
UHD 4K (3840 x 2160) up to 23.98p/25p/29.97p [72 Mb/s VBR]
Full HD (1920 x 1080) up to 23.98p/50p/59.94p [50 Mb/s VBR]
AVCHD 4:2:0 8-Bit
Full HD (1920 x 1080) up to 23.98p/29.97p/50i/50p/59.94p [17 to 25 Mb/s VBR]
HD (1280 x 720) up to 50p/59.94p [8 Mb/s VBR]

Variable Frame Rates

1080p: 2 to 60 fps

Recording Limit

Up to 1650 Minutes

Broadcast Output

NTSC/PAL

Built-In Microphone Type

Stereo

Audio Recording

AVCHD: 2-Channel 16-Bit 48 kHz
MP4: 2-Channel 16-Bit 48 kHz AAC Audio
MOV: 2-Channel 24-Bit 48 kHz

IP Streaming

MP4, RTMPS, RTMP, RTP, RTSP, H.264: 1920 x 1080 at 24p, 30p, 50p, 59.94p, 60p (0.5 to 24.00 Mb/s)
MP4, RTMPS, RTMP, RTP, RTSP, H.264: 1280 x 720 at 24p, 25p, 30p, 50p, 59.94p, 60p (0.5 to 24.00 Mb/s)
MP4, RTMPS, RTMP, RTP, RTSP, H.264: 640 x 360 at 24p, 25p, 30p, 50p, 59.94p, 60p (0.5 to 24.00 Mb/s)
MP4, RTMPS, RTMP, RTP, RTSP, H.264: 320 x 180 at 25p, 30p, 50p, 59.94p, 60p (0.5 to 24.00 Mb/s)

Image Sizes

16:9 DCF / EXIF / JPEG
3840 x 2160
1920 x 1080
1280 x 720

Aspect Ratio

16:9

Image File Format

JPEG

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-I)

Video I/O

1 x 1/8" / 3.5 mm TRRS A/V (Composite) Output
1 x HDMI Output
1 x BNC (3G-SDI) Output

Audio I/O

2 x XLR 3-Pin Microphone (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output

Power I/O

1 x Barrel (11.4 to 12.6 VDC) Input

Other I/O

1 x 2.5 mm Sub-Mini Input
1 x USB Type-C Input
1 x BNC (Timecode) Input/Output

Wireless

Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g)

Size

3.5"

Resolution

2,760,000 Dot

Display Type

Articulating LCD

Type

Built-In Electronic (OLED)

Size

0.39"

Resolution

1,770,000 Dot

Focus Type

Auto and Manual Focus

Focus Mode

Automatic, Manual Focus

Battery Type

Panasonic AG-VBR Series

Accessory Mount

1 x Cold Shoe Mount

Dimensions (W x H x D)

6.8 x 7.7 x 13.5" / 17.3 x 19.5 x 34.4 cm (With Protrusions)

Weight

4.50 lb / 2.04 kg (Body Only)
5.49 lb / 2.49 kg (With Battery, Grip, Viewfinder)

• Panasonic HC-X2 4K Camcorder
• Power Supply
• Power Cable
• 5900mAh Battery
• Battery Charger
• Microphone Holder
• Microphone Holder Screw Set
• Input Terminal Cap
• Eye Cup
• Lens Hood
