OM System M.Zuiko ED 12-40mm F2.8 Pro II Lens

117059

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
  • Product Description
  • Specifications
  • What's in the Box?
  • Warranty

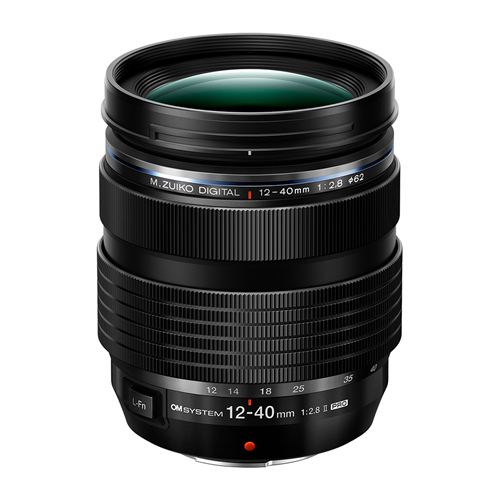

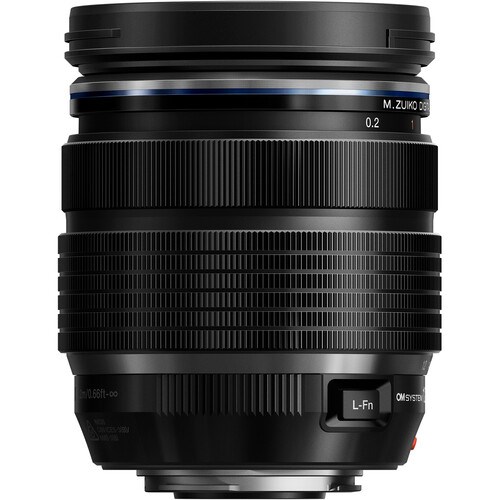

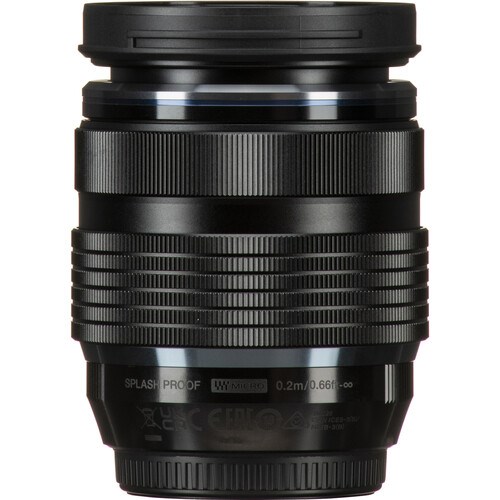

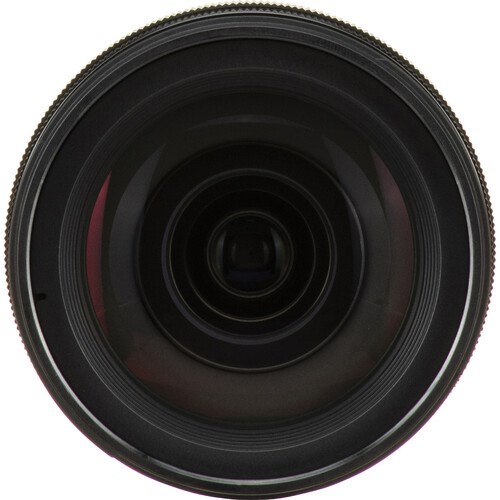

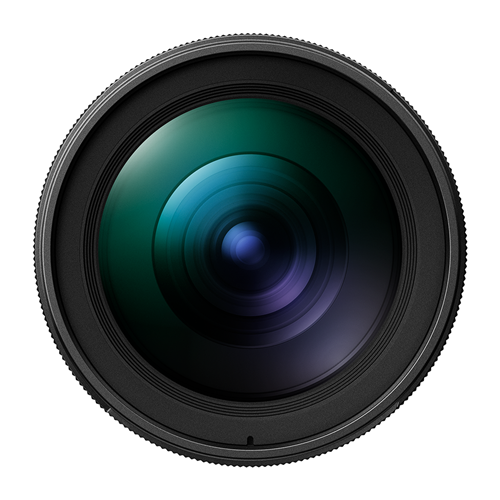

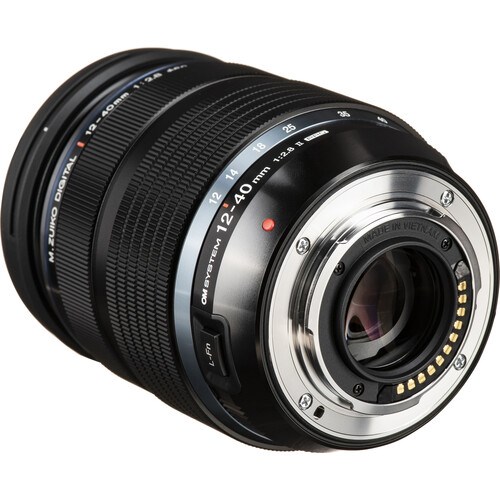

M.Zuiko Digital ED 12-40mm F2.8 PRO II

Clearer, sharper imaging than ever before

Key Features:
  • Reliable weather-resistant performance
  • 35mm equivalent: 24-80mm
  • Further improved high image quality and a compact, lightweight design in a standard zoom lens with a fixed maximum aperture of F2.8
  • Advanced IP53 dustproof and splashproof performance, and freezeproof performance to -10°C
  • Fluorine coating added
  • Excellent resolution across the entire zoom range
  • Closest focusing distance of 20 cm (at all focal distances),
This model uses an optical design with 14 elements in 9 groups (1 EDA lens, 2 aspherical lens, 1 DSA lens, 2 ED lens, 1 HD lens, 2 HR lens) with 4 aspherical lenses including a DSA lens effectively placed to achieve a compact, lightweight form and superior depictive performance of an M.Zuiko PRO lens. Effectively compensating for aberrations that occur when zooming, results in high resolution from the centre to the edges of the frame across the entire zoom range, from wide-angle 24mm equivalent1 to mid-telephoto 80mm equivalent1. This high-performance lens fully utilises the high image quality performance of the camera body when using High Res Shot mode.
The latest manufacturing techniques suppress surface scattering on aspherical lenses, significantly reducing flares compared to conventional products, resulting in clearer depictive performance. Optimal placement of coating, including ZERO (Zuiko Extra-low Reflection Optical) coating, improves resistance to backlighting.

Suited to LANDSCAPE, PORTRAIT, TRAVEL and ASTRO photographers.
Focal Length
12 to 40mm (35mm Equivalent: 24 to 80mm)
Maximum Aperture
f/2.8
Lens Mount
Micro Four Thirds
Lens Format Coverage
Micro Four Thirds
Focus Type
Autofocus
Image Stabilization
No
Filter Size
62 mm (Front)
Maximum Aperture
f/2.8
Minimum Aperture
f/22
Lens Mount
Micro Four Thirds
Lens Format Coverage
Micro Four Thirds
Angle of View
84° 30'
Minimum Focus Distance
7.9" / 20 cm
Maximum Magnification
0.3x
Optical Design
14 Elements in 9 Groups
Diaphragm Blades
7, Rounded
Focus Type
Autofocus
Image Stabilization
No
Filter Size
62 mm (Front)
Dimensions (ø x L)
2.8 x 3.3" / 70 x 84 mm
Weight
13.5 oz / 382 g
Packaging Info
Package Weight
1.42 lb
Box Dimensions (LxWxH)
8.5 x 4.6 x 4.6"
  • Lens cap (LC-62G)
  • Lens rear cap
  • Lens hood (LH-66D)
  • wrapping cloth
  • instruction manual
  • warranty card
