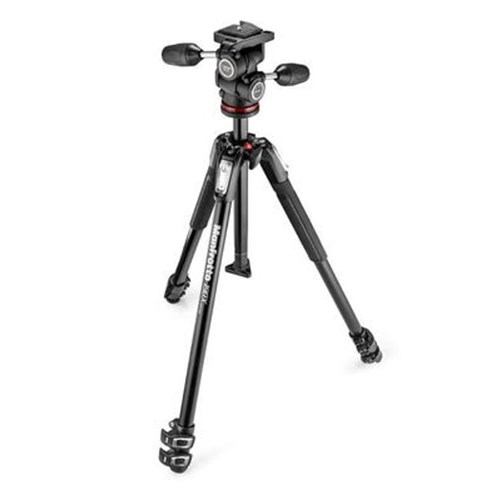

Manfrotto 190X3 + 804RC2 3 Way Head Kit

Product Code: 109018

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
  • Product Description
  • Specifications
  • What's in the Box?

Manfrotto 190X 3 + 804RC2 3 Way Head Kit

Manfrotto's 190X3 Three Section Tripod with MHXPRO-2W Fluid Head is suitable for still photographers, video shooters, and even birdwatchers who want professional features in a small package. The included head supports over eight pounds of camera and accessories on a head with two fluid drag settings to smooth your tilts. The head allows you to tilt from straight down to almost straight up in one continuous move, and the quick release camera plate lets you quickly pull your camera from the head when you have to move quickly.

Two tilt drag settings allow you to adjust the head to match the needs of the shot, and the fixed pan settings provide you resistance for slow smooth pans. The aluminum legs feature a 10" triangular-shaped center column that adds height while maintaining torsional stability. The spreaderless design and independent leg height adjustment allow you to use the legs on uneven surfaces without suffering from the wobble that ground-level spreaders can cause. Four preset locking positions allow you to lower the legs to approx. 7.5" high or nearly to the ground with the optional ground level adapter.

The Manfrotto MK190X3-3W1 Aluminum Tripod pairs the MT190X3 legs with the 804 MK II 3-Way Pan/Tilt Head. The tripod features a Quick Power Lock System, ground-level adapter, and an Easy Link attachment. It can hold up to 22 lb of gear, and has a maximum height of 67.7". The ground-level adapter replaces the center column to allow the ball head's plate to sit just 8.27" above the ground with the legs at their widest angle.

The QPL system allows the three leg sections to be completely extended with one hand for a simple setup. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg has four angles to accommodate uneven ground or rough terrain.

The included 804 MK II 3-way pan/tilt head incorporates retractable handles to decrease the overall size when not in use. A built-in spring assists with the tilting motion of the head by compensating for heavier lenses and cameras with off-center loads. The head stands 4.7" high, weighs 1.65 lb, and can hold up to 8.8 lb. A 200LT-PL quick-release plate is included for quickly attaching and removing your camera from the head.

  • Load Capacity: 22 lb
  • Max Height: 67.7"
  • Min Height: 8.27"
  • Folded Length: 27.9"
  • Leg Sections: 3
  • Weight: 6.2 lb
  • Ground Level Adapter
  • Quick Power Leg Locks
  • Easy Link Attachment
  • 3-Way Pan Tilt Head with QR Plate
Material Black anodized aluminum
Maximum Height 57.48" (146 cm)
Maximum Height w/o Column Extended 48" (122 cm)
Minimum Height 3.35" (8.5 cm)
Folded Length 22.44" (57 cm)
Load Capacity 11.02 lb (5.0 kg)
Total Weight 3.97 lb (1.8 kg)
Legs
Leg Stages / Sections 2/3
Independent Leg Spread Yes, 25, 46, 66, 88° angles
Leg Tube Diameters 25, 20, 16 mm
Leg Cross Section Round
Leg Lock Type Flip lock
Spiked / Retractable Feet No, rubber
Head Mount Thread Size 3/8"-16
Bubble Level No
Weight Legs only: 3.97 lb (1.8 kg)
Center Column
Center Column Type Rapid, friction lock
Q90 transverse column feature; column swings 90 degrees horizontal
Center Column Sections 1
Column Cross Section 3-Faceted
Reversible Column No
Center Brace No
  • Manfrotto 190XPROB Pro Aluminum Tripod
  • Manfrotto 804RC2 3-Way Pan/Tilt Head with RC2 Quick Release & 200PL QR Plate
  • Manfrotto 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter
