Manfrotto 190X3 + 2 Way Fluid Head Kit


inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
  • Product Description
  • Specifications
  • What's in the Box?
  • Warranty

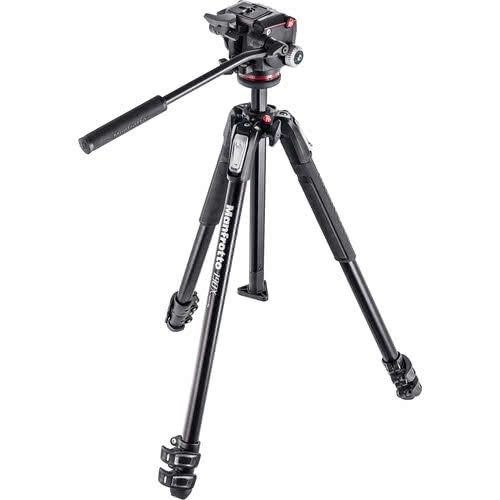

Manfrotto 190X3 Three Section Tripod with MHXPRO-2W Fluid Head

 Manfrotto's 190X3 Three Section Tripod with MHXPRO-2W Fluid Head is suitable for still photographers, video shooters, and even birdwatchers who want professional features in a small package. The included head supports over eight pounds of camera and accessories on a head with two fluid drag settings to smooth your tilts. The head allows you to tilt from straight down to almost straight up in one continuous motion, and the quick-release camera plate lets you quickly pull your camera from the head when you have to move quickly.

Two tilt drag settings allow you to adjust the head to match the needs of the shot, and the fixed pan settings provides you resistance for slow smooth pans. The aluminum legs feature a 10" triangular-shaped center column that adds height while maintaining torsional stability. The spreaderless design and independent leg height adjustment allow you to use the legs on uneven surfaces without suffering from the wobble that ground-level spreaders can cause. Four preset locking positions allow you to lower the legs to approx. 7.5" high or nearly to the ground with the optional ground level adapter.

  • Load Capacity: 8.8 lb
  • Maximum Height 66.9"
  • Weight: 5.8 Pounds
  • Two Tilt Drag Settings
  • Fixed Pan Drag
  • Separate Pan and Tilt Locks
  • QR Plate
  • 3 Section, 2 Stage Aluminum Legs
  • Four Pre-Set Locking Positions
  • Easy Link Accessory Port

27.2" / 69 cm
Weight    5.8 lb / 2.7 kg
Load Capacity    2.2" (55 mm) center of gravity: 8.8 lb / 4 kg
Material    AdaptoTechnopolymer, aluminum
Quick Release    Yes, 200PL
Camera Mount Thread Size    1/4"-20
Tripod Mount Thread Size    3/8"-16
Tilt Range    -60 to 90°
Bubble Level    Yes
Fluid Drag    Tilt: 2 steps, variable
Pan: fixed
Independent Pan Lock    Yes
Independent Tilt Lock    Yes
Height    3.9" (10 cm)
Weight    1.7 lb (0.76 kg)
Tripod Legs
Material of Construction    Aluminum
Load Capacity    15.4 lb / 7 kg
Height    Max Height
63" / 160 cm (with center column extended)
53.1" / 135 cm (with center column retracted)

Min Height
3.5" / 9 cm

23.2" / 59 cm
Weight    4.4 lb / 2 kg
Packaging Info
Package Weight    7.4 lb
Box Dimensions (LxWxH)    30.5 x 6 x 6"

  • Manfrotto 190X3 Three Section Tripod with MHXPRO-2W Fluid Head
  • Manfrotto MHXPRO 2-Way, Pan-and-Tilt Head with 200PL-14 Quick Release
  • Panhandle
  • Tripod Legs

Warranty: 2 years + 8 year extension
This products is warranted to be fit for the purpose for which it has been designed, and to be free from defects in materials and workmanship. This guarantee does not cover the product against subsequent damage or misuse. The period of validity of the Standard Limited Warranty is defined by the law in force in the country, state or region where the product is sold. Please retain your receipt as proof of purchase to repair your product under warranty.

How to get an extra warranty coverage
Beyond the standard compulsory coverage outlined above, this product is eligible for a warranty extension valid up to 10 years from the date of purchase. The Limited Conventional Warranty Extension does not affect the standard compulsory coverage. To take advantage of the warranty extension scheme, you must register your purchase at
