| Cabinet Color |
Black |
| Panel |
|
| Type |
IPS |
| Backlight |
Wide-Gamut LED |
| Size |
27" / 68.5 cm |
| Native Resolution |
2560 x 1440 (16:9 aspect ratio) |
| Viewable Image Size (H x V) |
596.7 x 335.7 mm |
| Pixel Pitch |
0.233 x 0.233 mm |
| Pixel Density |
109ppi |
| Display Colors |
1.07 billion colours, 10-bit display (from a palette of 278 trillion, 16-bit LUT) |
| Viewing Angles (H / V, typical) |
178°, 178° |
| Brightness (typical) |
400 cd/m |
| Contrast Ratio (typical) |
1600:1 |
| HDR Gamma |
HLG, PQ curve |
| Response Time (typical) |
19 ms (Gray-to-gray) |
| Wide Gamut Coverage (typical) |
Adobe RGB: 99%, DCI-P3: 98% |
| Video Signals |
|

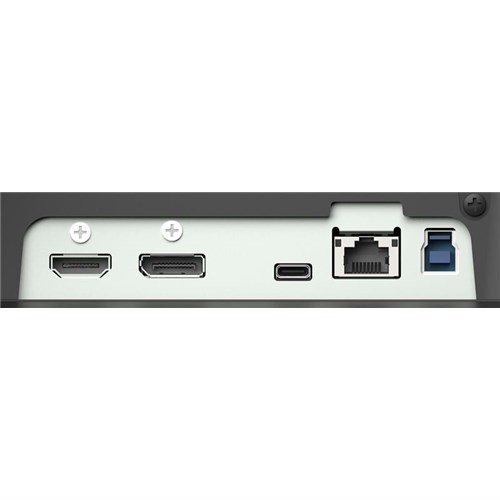

| Input Terminals |
USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 1.4) |
| Digital Scanning Frequency (H / V) |
USB Type-C, DisplayPort, DVI: 26 - 89 kHz, 23 - 61 Hz
HDMI: 15 - 89 kHz, 23 - 61 Hz |
| USB |
|
| Upstream |
USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 92 W max.), Type-B |
| Downstream |
USB 3.1 Gen 1: Type-A x 2
USB 2.0: Type-A x 2 |
| USB LAN Adapter |
RJ-45 (1000BASE-T) |
| Power |
|
| Power Requirements |
AC 100 - 240 V, 50 / 60 Hz |
| Maximum Power Consumption |
187 W |
| Typical Power Consumption |
17 W |
| Power Save Mode |
0.5 W or less |
| Standby Mode |
0.5 W or less |

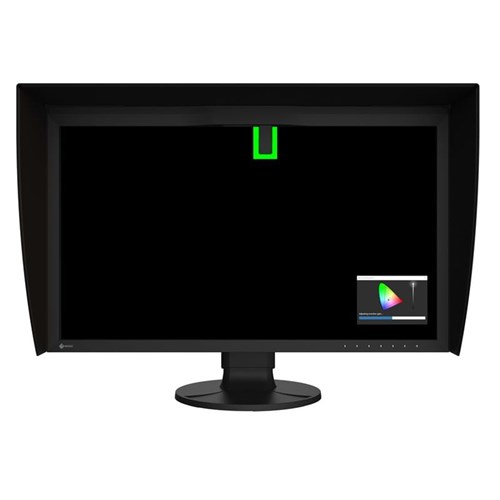

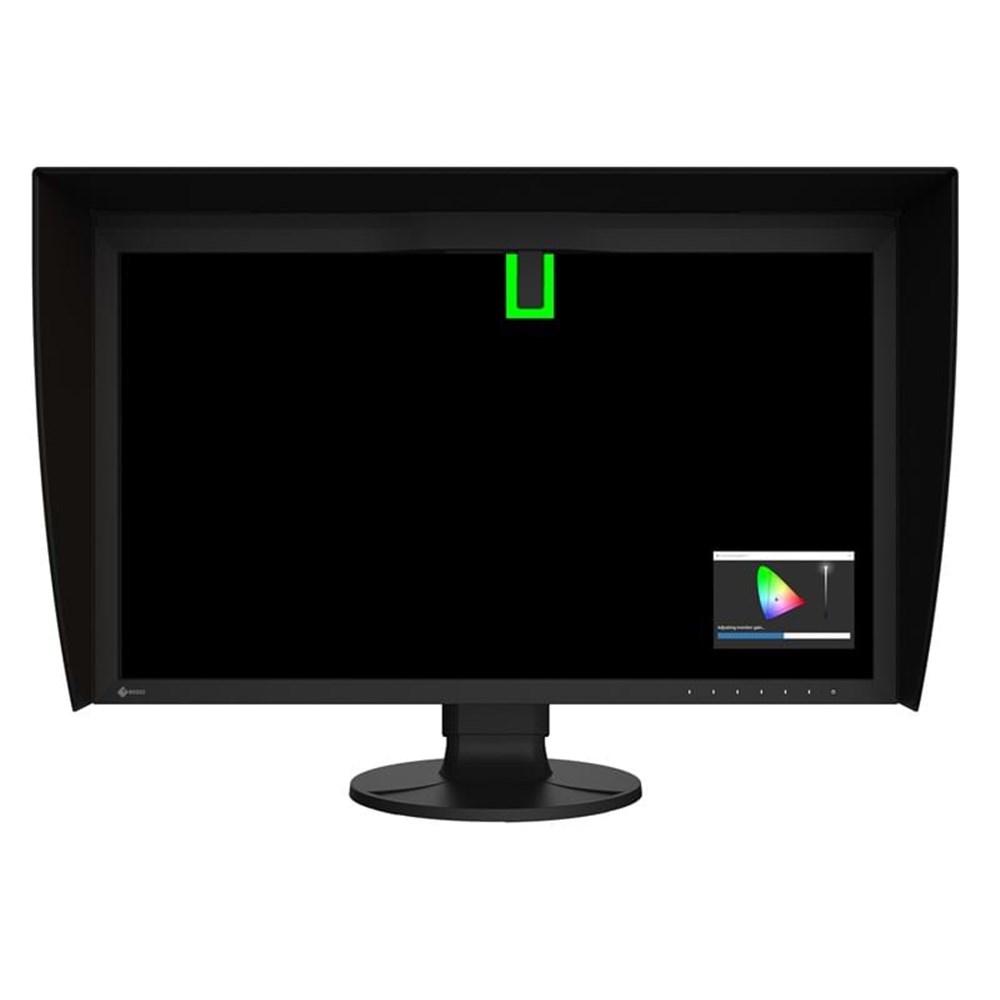

| Built-in Calibration Sensor |
Yes |
| Features & Functions |
|
| Brightness Stabilization |
Yes |
| Digital Uniformity Equalizer |
Yes |
| Preset Modes |
Colour Mode (User, BT.2020, BT.709, DCI-P3, PQ_DCI-P3, HLG_BT.2100, Adobe RGB, sRGB, CAL, SYNC_SIGNAL) |
| OSD Languages |
English, German, French, Spanish, Italian, Swedish, Simplified Chinese,
Traditional, Chinese, JapaneseColor Adjustment, PQ Option, HLG Option, SelfCalibration, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, BT.709 Gamut warning, Luminance Warning, Marker, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority, Ethernet |
| Physical Specifications |
|
| Dimensions (Landscape, W x H x D) |
638 x 415.9 - 570.9 x 245 mm |
| Dimensions (Without Stand, W x H x D) |
638 x 390 x 86.2 mm |
| Dimensions (Landscape with Hood, W x H x D) |
648 x 420.9 - 575.9 x 346 mm |
| Net Weight |
9.4 kg |
| Net Weight (Without Stand) |
6.4 kg |
| Net Weight (With Hood) |
9.8 kg |
| Height Adjustment Range |
155 mm |

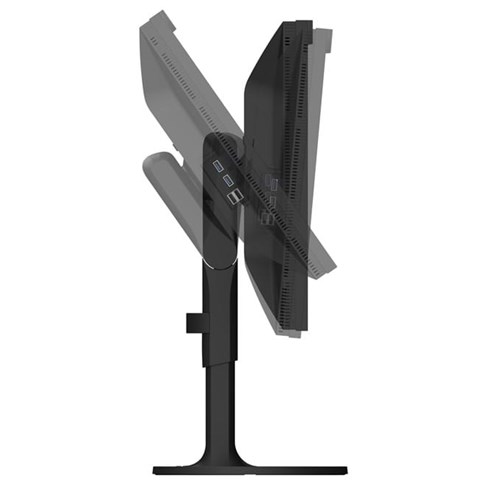

| Tilt |
35° Up, 5° Down |
| Swivel |
344° |

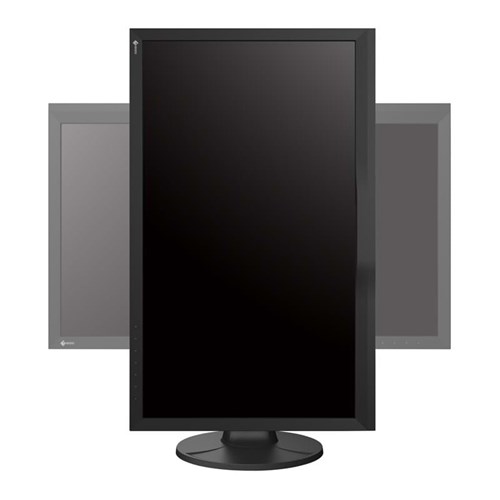

| Pivot |
90° |
| Hole Spacing (VESA Standard) |
100 x 100 mm |
| Environmental Requirements |
|
| Operating Temperature |
0 - 35 °C |
| Operating Humidity (R.H., non condensing) |
20 - 80 % |
| Certifications & Standards (Please contact EIZO for the latest information.) |
CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), FograCert Softproofing System (class A) |
| Dedicated Software |
|
| Easy Screen-to-Print Color Matching Tool Quick Color Match |
Supported |
| Proprietary Software |
|
| Color Mangement Software ColorNavigator 7 |
Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) |
|
| Signal Cables |
USB Type-C (2 m), HDMI (2 m) |
| Others |
AC power cord, USB cable, adjustment certificate, setup guide, ScreenCleaner, monitor hood, warranty card |
| Warranty |
Five Years
Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later. |
| Dimension Drawing |
PDF |
