DJI Matrice 30 RPAS Standard Package

DJI Matrice 30 RPAS Standard Package
(EXCLUDES TB30 BATTERIES)

• A balance of power and portability delivers higher operational efficiency Flight Time: 41 minutes Wind Resistance: 15m/s Service Ceiling: 7000m Max Speed: 23m/s
• With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.
• Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.
• Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.
• Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments. Bolster your connection with DJI Cellular Module, an optional 4G dongle that supports stable video transmission in complex, or remote work environments.
• Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.
• The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.

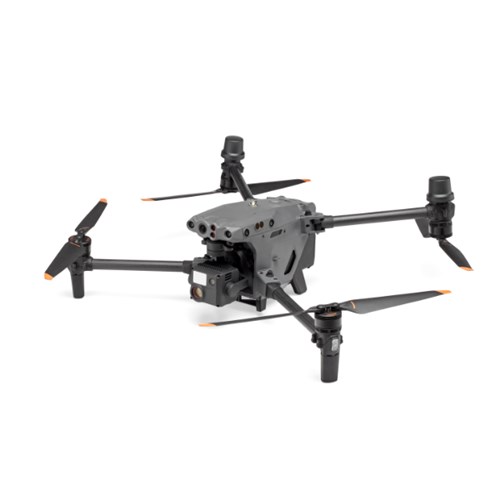

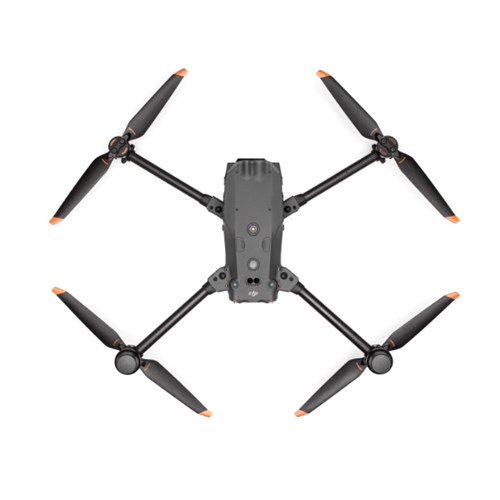

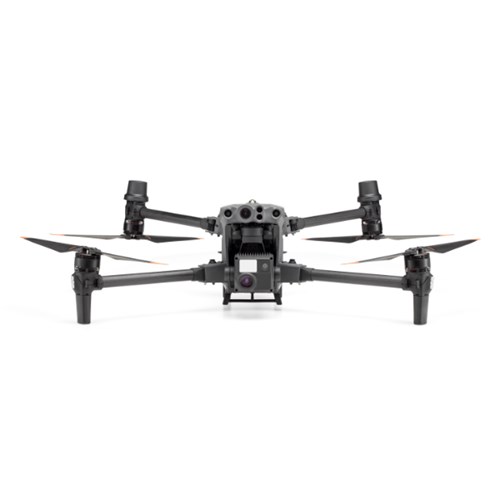

The M30 is a lightweight & portable all in one drone that comes with a 12MP Wide Camera and 48MP Zoom Camera.

Dimensions
(unfolded, excl. propellers)
470×585×215 mm (L×W×H)

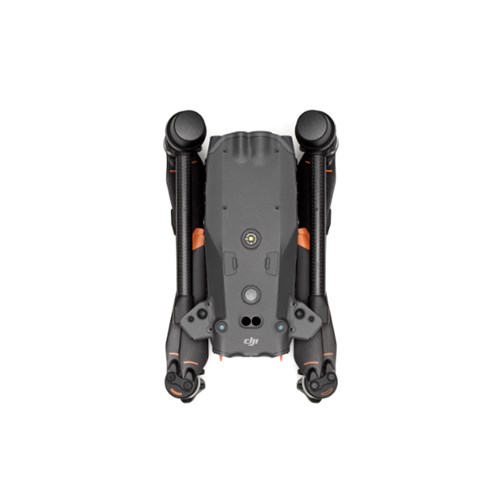

Dimensions (folded)    365×215×195 mm (L×W×H)
Diagonal Wheelbase    668 mm
Weight (incl. two batteries)    3770 ± 10 g
Max Takeoff Weight    4000 g
Transmitter Power (EIRP)    2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
Hovering Accuracy
(windless or breezy)    Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
RTK Positioning Accuracy
(fixed RTK enabled)    1 cm+1 ppm (horizontal)
1.5 cm+1 ppm (vertical)
Max Angular Velocity    Pitch: 150°/sec.; Yaw: 100°/sec.
Max Tilt Angle    35° (N-mode and Forward Vision System enabled: 25°)
Max Ascent/Descent Speed    6 m/s, 5 m/s
Max Tilt Descent Speed    7 m/s
Max Horizontal Speed    23 m/s
Max Service Ceiling Above Sea Level
(without other payload)

5,000 m (with 1671 propellers)
7,000 m (with 1676 propellers)
Max Wind Resistance    15 m/s
12 m/s during taking off and landing
Max Hover Time    36 min
Max Flight Time    41 min
Motor Model    3511
Propeller Model    1671
1676 High Altitude (not included)
Ingress Protection Rating    IP55
GNSS    GPS+Galileo+BeiDou+GLONASS
(GLONASS is supported only when RTK module is enabled)
Operating Temperature    -20° to 50° C


Gimbal

Angular Vibration Range    ±0.01°
Controllable Range    Pan: ±90°
Tilt: -120° to +45°
Mechanical Range    Pan: ±105°
Tilt: -135° to +60°
Roll: ±45°


Zoom Camera

Sensor    1/2" CMOS, Effective pixels: 12M
Lens    DFOV: 84°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞

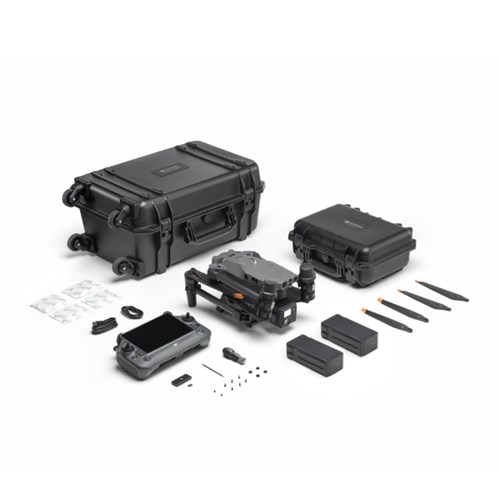

• DJI Matrice 30 aircraft body
• DJI RC Plus remote controller
• BS30 Battery Station
• 2 x 1671 Propellers (CW & CCW)
• USB-C cable
• USB-C to USB-C cable
• Carry case
• Screws & tools
• Note, TB30 batteries are sold separately.
