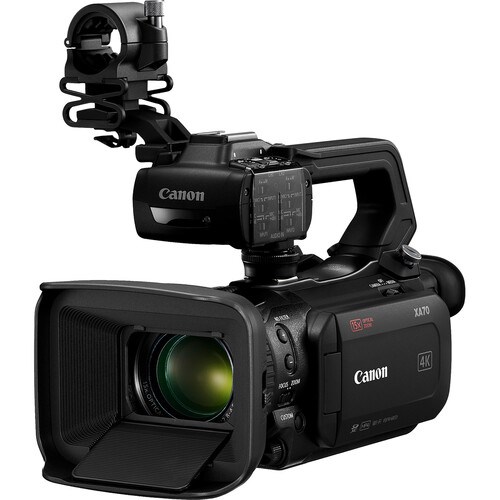

Canon XA70 4K Camcorder

Canon XA70 4K Camcorder

Key Features

• 1" CMOS Sensor, DIG!C DV 6 Processor
• Up to UHD 4K30 Video Recording
• Mini-HDMI Output
• Integrated 15x Optical Zoom Lens
• Dual XLR and Mic/Line Audio Input
• USB Type-C Output with UVC Support
• 5-Axis Optical Image Stabilization
• Dual-Pixel CMOS Autofocus Feature
• Dual SD Relay and Simultaneous Recording
• 3.5" Touchscreen LCD, Tiltable OLED EVF

The Canon XA70 Professional UHD 4K Camcorder is a compact, lightweight camera featuring UHD 4K capture, a 1" CMOS sensor, two XLR audio inputs, and one mini-HDMI output which fits right into the ENG category for documentary or journalism-style productions. Updated from its XA55 predecessor, this model features a larger 3.5mm LCD capacitive touchscreen display, a higher resolution tiltable 0.36" OLED EVF, OSD metadata recording, and fast USB Type-C video-only output with UVC support for livestreaming to a computer.

Imaging
Sensor Resolution    Actual: 13.4 Megapixel (4268 x 3148)
Effective: 8.29 Megapixel (3840 x 2160)
Sensor Type    1"-Type CMOS Sensor
Image Stabilization    Optical in Integrated Lens
Digital
Built-In ND Filter    Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Capture Type    Stills & Video
Exposure Control
Shutter Speed    1/2000 to 1 Second
Minimum Illumination    1.7 Lux at 1/30 Shutter Speed
0.1 Lux at 1/2 Shutter Speed
White Balance    2000 to 15,000K
Lens
Focal Length    8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm)
Optical Zoom Ratio    15x
Maximum Aperture    f/2.8 to 4.5
Minimum Focus Distance    Wide: 0.4" / 1.0 cm
Entire Zoom Range: 23.6" / 60.0 cm
Filter Size    58 mm
Focus Control    Autofocus
Manual Focus
Internal Video Capture
Recording Modes    H.264/MP4 4:2:0 8-Bit
3840 x 2160 at 23.98p/24.00p/29.97p
1920 x 1080 at 23.98p/24.00p/29.97p/59.94p [35 to 45 Mb/s]
1280 x 720 at 59.94p [8 Mb/s]
XF-AVC 4:2:0 8-Bit
3840 x 2160 at 23.98p/24.00p/29.97p
1920 x 1080 at 23.98p/24.00p/29.97p/59.94p
Recording Limit    Up to 2120 Minutes
Broadcast Output    NTSC
Built-In Microphone Type    Stereo
Audio Recording    MP4: 2-Channel 16-Bit AAC Audio
MP4: 4-Channel 16-Bit LPCM Audio
XAVC: 4-Channel 24-Bit LPCM Audio
External Video Capture
IP Streaming    None
Interface
Media/Memory Card Slot    Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O    1 x Mini-HDMI (HDMI 2.0) Output
Audio I/O    2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Headphone Input
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O    1 x USB Type-C Input
Other I/O    1 x USB Type-C Output
Wireless    None
Global Positioning (GPS, GLONASS, etc.)    None
Monitor
Size    3.5"
Resolution    2,760,000 Dot
Display Type    Articulating Touchscreen LCD
Viewfinder
Type    Built-In Electronic (LCD)
Size    0.36"
Resolution    1,770,000 Dot
Focus
Focus Type    Auto and Manual Focus
Focus Mode    Automatic, Manual Focus
Environmental
Operating Temperature    32 to 72°F / 0 to 40°C (Recommended)
Storage Temperature    23 to 113°F / -5 to 45°C
Operating Humidity    85%
Storage Humidity    60%
General
Battery Type    Canon BP-8 Series
Power Consumption    5.3 W
Tripod Mounting Thread    1/4"-20 Female
Accessory Mount    1 x Cold Shoe Mount
Dimensions (W x H x D)    8.4 x 4.3 x 3.6" / 21.3 x 10.9 x 9.1 cm
Weight    2.2 lb / 985 g (Body Only)
3.2 lb / 1460 g (With Battery, Handle, Recording Media)

• Canon XA70 UHD 4K30 Camcorder with Dual-Pixel Autofocus
• Canon PD-E1 USB Power Adapter
• Canon BP-820 Lithium-Ion Single Battery Pack (1780mAh, Retail Packaging)
• Lens Hood with Lens Cover
• Handle
• Microphone Holder
