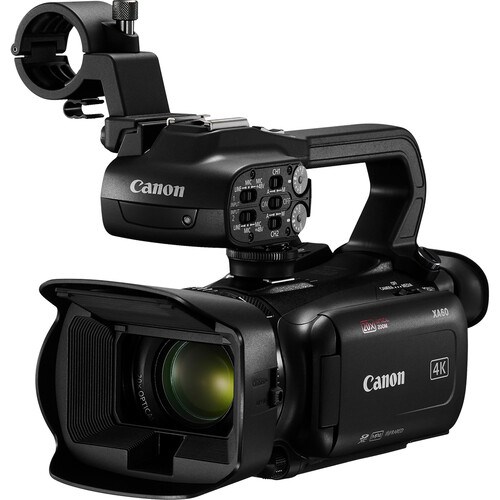

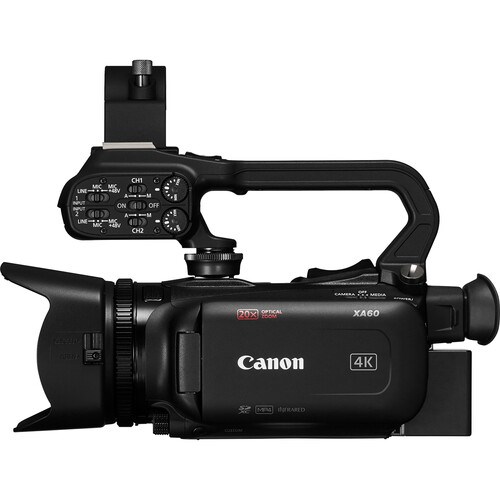

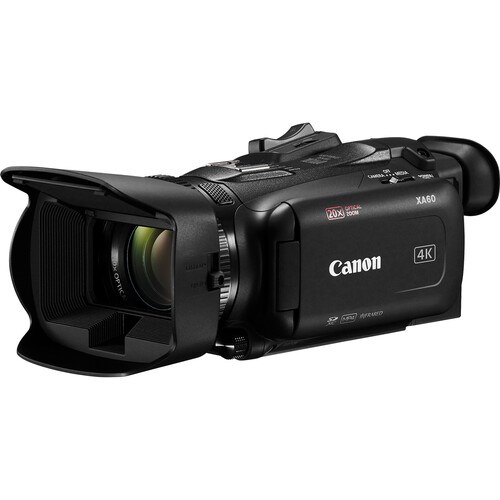

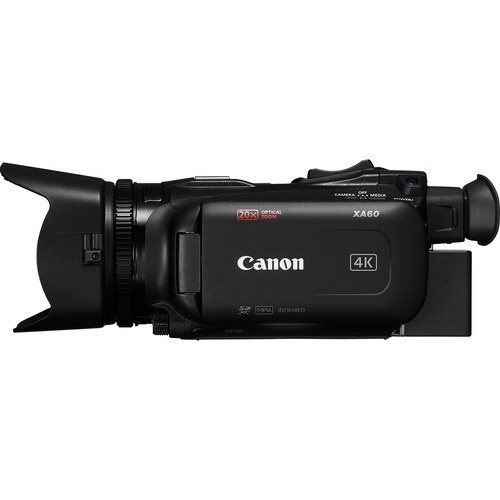

Canon XA60 4K Camcorder

Canon XA60 4K Camcorder

Key Features

• 1/2.3" CMOS Sensor, DIG!C DV 6 Processor
• Up to UHD 4K30 Video Recording
• Mini-HDMI Video Output
• Integrated 20x Optical Zoom Lens
• USB Type-C Output with UVC Support
• Infrared, Optical Image Stabilization
• 3.5" Touchscreen LCD, Tiltable OLED EVF
• Record 4K in XF-AVC and MP4 Formats
• Dual SD Relay and Simultaneous Recording
• Dual XLR and Mic/Line Audio Input

The Canon XA60 Professional UHD 4K Camcorder is a compact, lightweight camera that features many similarities to its XA45 predecessor, including UHD 4K capture, a 1/2.3" CMOS sensor, two XLR audio inputs, and one mini-HDMI output, making it suitable for the ENG category for documentary or journalism-style productions. This streamlined model features a larger 3.5mm LCD capacitive touchscreen display, a higher resolution tiltable 0.36" OLED EVF, XF-AVC and MP4 recording formats, OSD metadata recording, and fast USB Type-C video-only output with UVC support for livestreaming to a computer.

Imaging
Sensor Type    1/2.3"-Type CMOS Sensor
Image Stabilization    Optical in Integrated Lens
Digital
Capture Type    Video Only
Exposure Control
Shutter Type    Electronic Global Shutter
Shutter Speed    1/2000 to 1 Second
Gain    0 to 24 dB (Native)
Signal-to-Noise Ratio    3 dB
Minimum Illumination    5 Lux at 1/30 Shutter Speed
0.3 Lux at 1/2 Shutter Speed
White Balance    2000 to 15,000K
Lens
Focal Length    3.6 to 73.4mm (35mm Equivalent Focal Length: 29.3 to 627mm)
Optical Zoom Ratio    20x
Maximum Aperture    f/1.8 to 2.8
Minimum Focus Distance    Wide: 0.4" / 1.0 cm
Entire Zoom Range: 23.6" / 60.0 cm
Control Rings    Focus
Zoom
Focus Control    Autofocus
Manual Focus
Internal Video Capture
Recording Modes    H.264/MP4/XF-AVC
3840 x 2160 at 23.98p/24.00p/29.97p [150 Mb/s]
1920 x 1080 at 23.98p/24.00p/29.97p/59.94p [17 to 35 Mb/s]
1280 x 720 at 59.94p [8 Mb/s]
Broadcast Output    NTSC
Built-In Microphone Type    Stereo
Audio Recording    MP4: 2-Channel 16-Bit AAC Audio
MP4: 4-Channel 16-Bit LPCM Audio
External Video Capture
IP Streaming    None
Interface
Media/Memory Card Slot    Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O    1 x Mini-HDMI (HDMI 2.0) Output
Audio I/O    2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Headphone Input
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O    1 x USB Type-C Input
Other I/O    1 x USB Type-C
Monitor
Size    3.5"
Resolution    2,760,000 Dot
Display Type    Articulating Touchscreen LCD
Viewfinder
Type    Built-In Electronic (LCD)
Size    0.36"
Resolution    1,770,000 Dot
Focus
Focus Type    Auto and Manual Focus
Focus Mode    Automatic, Manual Focus
Environmental
Operating Temperature    32 to 72°F / 0 to 40°C (Recommended)
Storage Temperature    23 to 113°F / -5 to 45°C
Operating Humidity    85%
Storage Humidity    60%
General
Battery Type    Canon BP-8 Series
Tripod Mounting Thread    1/4"-20 Female
Accessory Mount    1 x Cold Shoe Mount on Included Handle
Dimensions (W x H x D)    7.2 x 4.3 x 3.3" / 18.3 x 10.9 x 8.4 cm (Without Protrusions)
Weight    1.6 lb / 740 g (Body Only)
2.5 lb / 1135 g (With Battery, Handle, Recording Media)

• Canon XA60 Professional UHD 4K Camcorder
• Canon PD-E1 USB Power Adapter
• Canon BP-820 Lithium-Ion Single Battery Pack (1780mAh, Retail Packaging)
• Lens Cap
• Lens Hood with Lens Barrier
• Handle Unit
• Microphone Holder Unit
