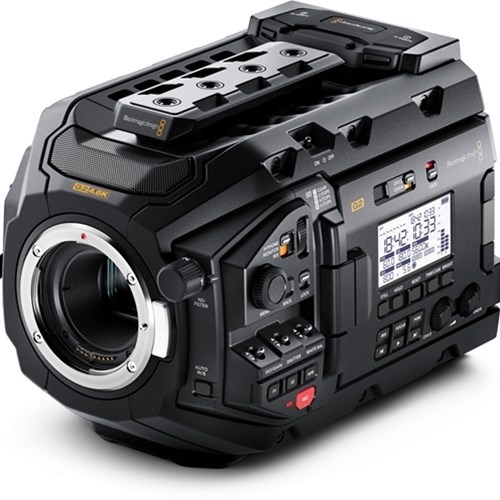

Blackmagic URSA Mini Pro 4.6K

Blackmagic URSA Mini Pro 4.6K

• 4.6K Super 35 HDR CMOS Sensor
• 4.6K up to 120 fps, 300 fps at 1080p
• 15 Stops of Dynamic Range at 3200 ISO
• USB-C Expansion Port for External Disks
• Blackmagic RAW & ProRes 444/422 Support
• Dual CFast 2.0 and SD Memory Card Slots
• 12G-SDI Output, Timecode and REF Input
• 2 XLR Audio Inputs with Phantom Power
• 2-/4-/6-Stop ND Filter, Magnesium Body
• Interchangeable Lens Mount

New G2 Model Features

• Updated Super 35 4.6K image sensor
• 4608 x 2592 with 15 stops of dynamic range at 3200 ISO
• 4.6K images at up to 120 frames per second
• Windowed 4K DCI at up to 150 frames per second
• Windowed 1080 HD at 300 frames per second
• Blackmagic RAW images in both film and extended video modes
• Raw compression levels up to 12:1
• USB-C expansion port for recording to external drives

Imaging
Lens Mount    Canon EF
Lens Communication    Yes
Sensor Resolution    Effective: 11.9 Megapixel (4608 x 2592)
Sensor Type    25.34 x 14.25 mm (Super35)
Built-In ND Filter    Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Shutter Type    Rolling Shutter
Advertised Dynamic Range    15 Stops
Internal Recording
Raw Recording    Raw 12-Bit:
4608 x 2592 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
4608 x 1920 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
4096 x 2304 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps
3072 x 2560 at 23.98/24/25/29.97/30/59.94/60/120/150 fps
2048 x 1152 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps
2048 x 1080 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps
1920 x 1080 at 23.98/24/29.97/30/50/59.94/60/300 fps
Recording Modes    ProRes 4444XQ 4:4:4 12-Bit:
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (312.5 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120/240 fps (62.5 MB/s)
ProRes 422HQ 4:2:2 10-Bit:
4608 x 2592p at 23.98/24/25/29.97/30/50/59.94/60/80 fps
4608 x 1920p at 23.98/24/25/29.97/30/60/80 fps
4096 x 2304p at 23.98/24/25/29.97/30/50/59.94/60/80 fps
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/80 fps
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (110 MB/s)
3072 x 2560p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps
2048 x 1152p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps
2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120/240 fps (27.5 MB/s)
Variable Frame Rates    Up to 300 fps
External Recording
Raw Output    USB:
4096 x 2592 at 60 fps
3840 x 2160 12-Bit at 60 fps
1920 x 1080 12-Bit at 30/60 fps
Media/Memory Card Slot    Dual Slot: SD/SDHC/SDXC (UHS-II)
Video Connectors    1 x BNC (12G-SDI) Input
2 x BNC (12G-SDI) Output
Audio Connectors    2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Output
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Input/Output
Other I/O    1 x USB Type-C Data
1 x BNC Timecode Input
1 x BNC Reference Input
2 x 2.5 mm LANC Control Input
Size    4.0"
Display Type    Articulating Touchscreen LCD
Secondary Display    Side: Status Display
Power
Power Connectors    1 x 4-Pin XLR Input
1 x 12-Pin Molex Input/Output
1 x 4-Pin XLR (12 VDC) Output
Environmental
Operating Temperature    32 to 104°F / 0 to 40°C
Storage Temperature    -4 to 113°F / -20 to 45°C
Operating Humidity    0 to 90%
Accessory Mount    1 x 1/4"-20 Female
1 x Battery Plate Mount
Dimensions    8.2 x 8 x 5.8" / 21 x 20.1 x 14.7 cm
Weight    5.1 lb / 2.3 kg
Packaging Info
Package Weight    7.82 lb
Box Dimensions (LxWxH)    14.8 x 8.7 x 7.9"

In the Box

• Blackmagic Design URSA Mini Pro 4.6K G2 Digital Cinema Camera
• Turret Dust Cap
• Power Supply
• DaVinci Resolve Full-Version License
• Limited 1-Year Warranty

Not in the Box

• Essential Power Cables (Not Included)
• Essential Recording Media (Not Included)
• Essential Cine Lenses (Not Included)
