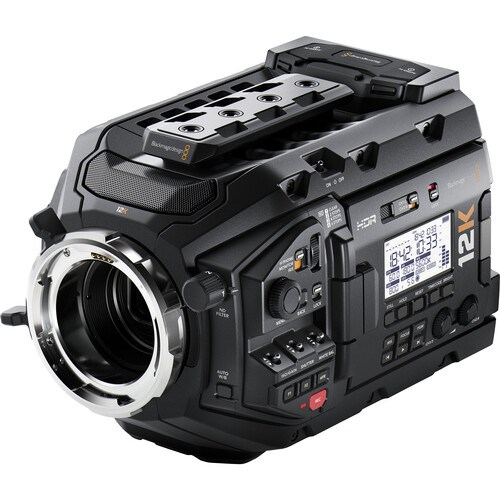

Blackmagic Ursa Mini Pro 12K

116478

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
My Store:
Change Store
  • Product Description
  • Specifications
  • What's in the Box?

Blackmagic Ursa Mini Pro 12K

  • 12K Super35 HDR CMOS Sensor
  • 12K 17:9 to 60 fps/12K 2.4:1 to 75 fps
  • DCI 8K to 120 fps/14 Stops Dynamic Range
  • User-Changeable PL Lens Mount
  • 4K Super16 up to 220 fps
  • 80MP/frame Blackmagic Raw
  • Dual CFast or SD Card Recording
  • USB Type-C Recording to Disk/SSD
  • 12,288 x 6480 12K Super35 sensor
  • 14 stops of dynamic range
  • 80MP per frame; new color science
  • 12K 2.4:1 imaging up to 75 fps, 8K and DCI 4K up to 120 fps
  • 8K and 4K anamorphic: up to 160 fps, Super16 4K to 240 fps
  • Flexible Blackmagic Raw recording options plus raw stills capture
  • Broadcast lens connector support
  • Dual CFast and UHS-II SD card recorders
  • Raw compression levels up to 18:1
  • SuperSpeed USB Type-C expansion port for external recording
  • Metadata support and timecode clock
Imaging
Lens Mount    PL
Interchangeable Lens Mount    Yes
Lens Communication    Yes
Sensor Resolution    Effective: 79.6 Megapixel (12,288 x 6480)
Sensor Type    27.03 x 14.25 mm (Super35) CMOS
Built-In ND Filter    Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
ISO Sensitivity    800 (Native)
Shutter Type    Rolling Shutter
Advertised Dynamic Range    14 Stops
Internal Recording
Raw Recording    Raw 12-Bit:
12288 x 6480 at 23.98/24/25/29.97/30/50/59.94/60 fps (72 to 578 MB/s)
11520 x 648 at 23.98/24/25/29.97/30/50/59.94/60 fps
12288 x 5112 at 23.98/24/25/29.97/30/50/59.94/60 fps
7680 x 6408 at 23.98/24/25/29.97/30/50/59.94/60 fps
8192 x 4320 at 23.98/24/25/29.97/30/50/59.94/60 fps (32 to 258 MB/s)
7680 x 4320 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
8192 x 3408 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
5120 x 4272 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
6144 x 3240 at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18 to 145 MB/s)
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (8 to 65 MB/s)
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
4096 x 1704 at 23.98/24/25/29.97/30/59.94/60 fps
2560 x 2136 at 23.98/24/25/29.97/30/50/59.94/60 fps
Recording Modes    Not Specified by Manufacturer
Variable Frame Rates    12K: Up to 60 fps
12K Anamorphic: Up to 75 fps
8K: Up to 120 fps
DCI 4K: Up to 120 fps
8K Anamorphic: Up to 160 fps
4K Anamorphic: Up to 160 fps
6K (Windowed): Up to 120 fps
DCI 4K (Windowed): Up to 240 fps
Audio Recording    2-Channel 24-Bit 48 kHz
Still Image Support    Raw
External Recording
Raw Output    USB:
12 x 6480
8192 x 4320
6144 x 3240
4096 x 2160
Media/Memory Card Slot    Dual Slot: SD/SDHC/SDXC (UHS-II)
Video Connectors    1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
1 x BNC (3G-SDI) Monitor Output
Audio Connectors    2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Output
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Input/Output
Built-In Microphone Type    Stereo
Other I/O    1 x USB Type-C USB 3.1 Gen 2
1 x USB Type-C Data Input
Size    4.0"
Display Type    Articulating Touchscreen LCD
Secondary Display    Side: Status Display
EVF    Optional, Not Included
Power
Power Connectors    1 x 4-Pin XLR Input
1 x 12-Pin Molex Input/Output
1 x 4-Pin XLR (12 VDC) Output
Environmental
Operating Temperature    32 to 104°F / 0 to 40°C
Storage Temperature    -4 to 113°F / -20 to 45°C
Operating Humidity    0 to 90%
Accessory Mount    4 x 1/4"-20 Female
1 x ARRI/Hirth Rosette
Dimensions    9.2 x 5.92 x 5.87" / 23.37 x 15.04 x 14.91 cm
Weight    5.62 lb / 2.55 kg
  • Blackmagic Design URSA Mini Pro 12K (PL)
  • PL Lens Mount
  • Port Cap
  • Power Supply
  • DaVinci Resolve Studio Activation Key
