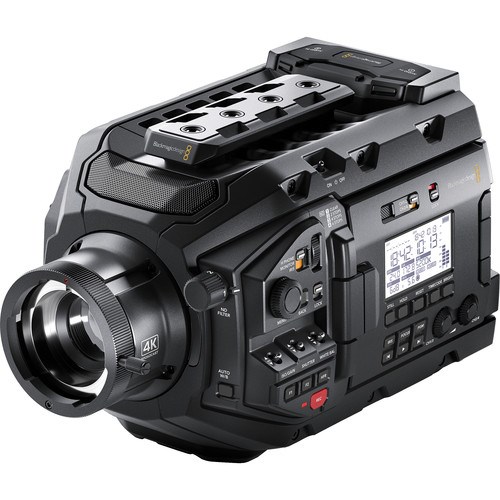

Blackmagic Ursa Broadcast Camera

Blackmagic Ursa Broadcast

• 4K 2/3" CMOS Sensor Size with B4 Lens
• Compatible with 2/3" B4 Lenses
• UHD 4K and 1080p up to 60 fps
• Records to Apple ProRes and Avid DNx
• Cinema DNG Raw Recording
• 2 x UHS-II SD, 2 x CFast 2.0 Slots
• 3G-SDI and 12G-SDI Outputs
• Genlock and Timecode

Imaging
Lens Mount    B4
Sensor Resolution    Not Specified by Manufacturer
Sensor Type    1/2.3" CMOS Sensor
Shutter Speed    1/75 to 1/2000 sec
Gain    -6 to 18 dB
White Balance    3200 to 6500K
Recording
Recording Modes    ProRes 4444XQ:
3840 x 2160p (312.5 Mb/s)
1920 x 1080p (62.5 Mb/s)
1920 x 1080i at 50/59.94/60 fps
ProRes 422:
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps (18.4 Mb/s)
1920 x 1080i at 50/59.94/60 fps
Audio Recording    Raw: 2-Channel 24-Bit 48 kHz
Still Image Support    Not Specified by Manufacturer
IP Streaming    None
Media/Memory Card Slot    Dual Slot: SD/SDHC/SDXC (UHS-II)
Video Connectors    1 x BNC (12G-SDI) Output
1 x BNC (12G-SDI) Input
Audio Connectors    1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Input/Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
Built-In Microphone Type    Stereo
Other I/O    1 x USB Type-C Input
1 x 2.5 mm LANC Control Output
Size    4.0"
Display Type    Articulating Touchscreen LCD
Secondary Display    Side: LCD Status Display
EVF
Power
Power Connectors    1 x 4-Pin XLR Input
1 x 12-Pin Molex Input
1 x 4-Pin XLR (12 to 20 VDC) Output
Power Consumption    0 W
Environmental
Operating Temperature    32 to 104°F / 0 to 40°C
Storage Temperature    -4 to 113°F / -20 to 45°C
Operating Humidity    0 to 90%
Accessory Mount    1 x Battery Plate Mount
Dimensions    10.07 x 5.9 x 5.8" / 25.58 x 14.9 x 14.7 cm
Weight    5.7 lb / 2.6 kg

In the Box
Blackmagic Design URSA Broadcast Camera
Turret Dust Cap
Power Supply (Requires IEC Power Cable)

Not in the Box
Essential Required Power Cable (Not Included)
Essential Recording Media (Not Included)
