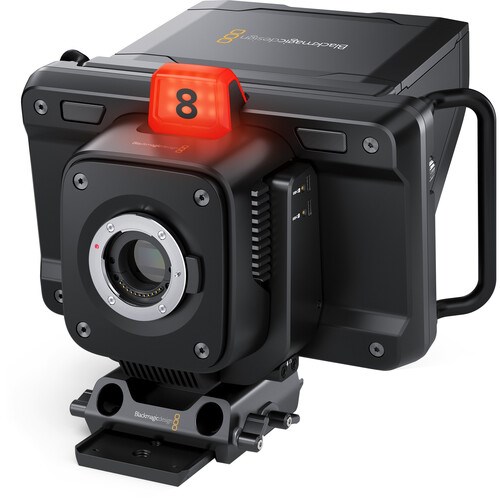

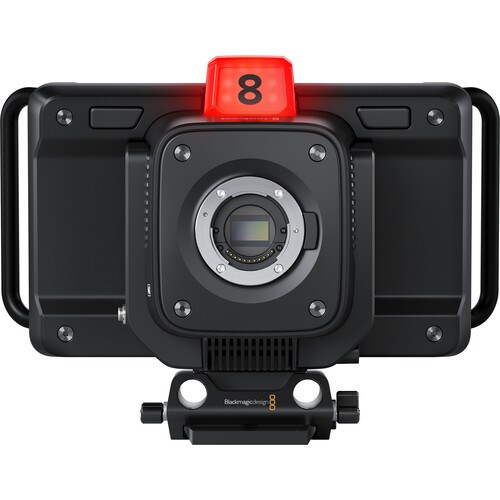

Blackmagic StudioCamera 4K Plus Camera

Blackmagic Studio Camera 4K Plus

Key Features

• Micro Four Thirds Lens Mount
• Capture up to UHD 4K 3840 x 2160p60

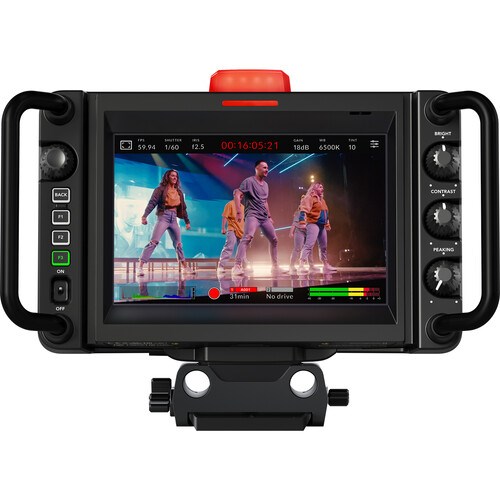

• 7" High-Brightness HDR Touchscreen LCD
• HDMI Video Output Designed for ATEM Mini
• Record to External USB Type-C Disks
• Records Blackmagic RAW, Up to 25,600 ISO
• 3.5mm Audio Input, Built-In Mics
• Built-In DaVinci Resolve Color Corrector
• Large Tally Light
• Light Carbon Fiber Polycarbonate Body

Imaging
Sensor Resolution    Not Specified by Manufacturer
ISO Sensitivity    100 to 25,600
Gain    0 to 18 dB
Signal-to-Noise Ratio    63 dB
Camera
Lens Mount    Micro Four Thirds
Shutter Speed    1/5000 to 1/24 Second
Built-In ND Filter    None
Built-In Microphone Type    Stereo
Broadcast System Compatibility    NTSC, PAL
Interfaces
CCU Interface    None

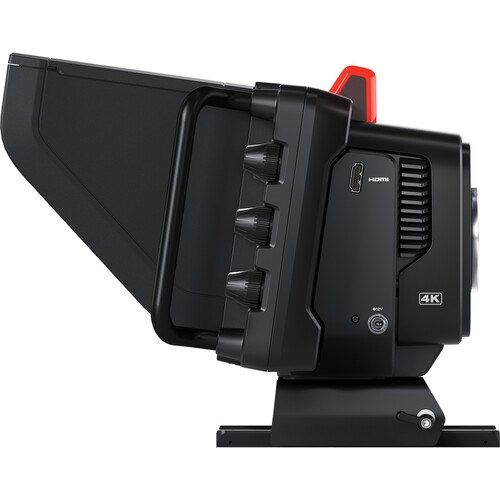

Video I/O    1 x HDMI Output
Audio I/O    1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output

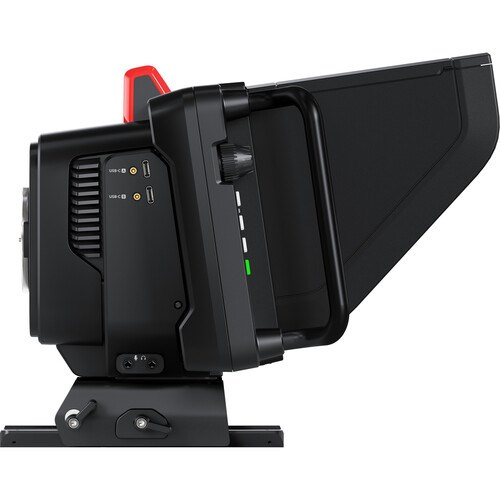

Other I/O    2 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output
Recording
Recording Modes    DNxHD/ProRes:
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Raw Recording    Blackmagic RAW
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]
Audio Recording    Raw: 2-Channel 24-Bit 48 kHz LPCM Audio
Display
Display Type    Fixed Touchscreen LCD
Size    7"
Resolution    1920 x 1200
Power
Power I/O    1 x Barrel (12 VDC) Input
Power Consumption    >46 W
Environmental
Operating Temperature    32 to 104°F / 0 to 40°C
Storage Temperature    -4 to 113°F / -20 to 45°C
Operating Humidity    0 to 90%
General
Accessory Mount    2 x 1/4"-20 Female
Tripod Mount    3/8"-16 Female
Dimensions (W x H x D)    10.77 x 6.68 x 6.59" / 27.36 x 16.97 x 16.74 cm (Without Protrusions)
Weight    3.71 lb / 1.68 kg
Packaging Info
Package Weight    6.975 lb
Box Dimensions (LxWxH)    12.4 x 10.3 x 8.2"

• Blackmagic Design Studio Camera 4K Plus
• Sun Hood
• Turret Dust Cap
• Universal Power Supply with International Socket Adapters
• 15mm LWS Tripod Mount
• Tally Decal Set
