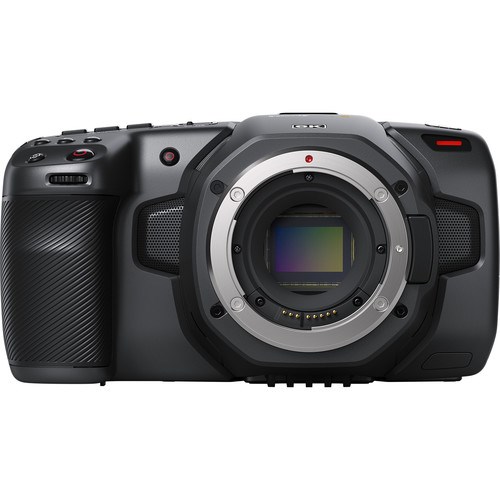

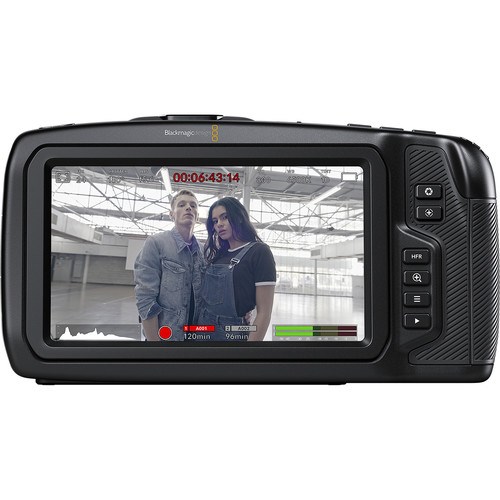

Blackmagic Pocket Cinema 6K - Canon EF

Blackmagic Pocket Cinema 6K

• Active Canon EF/EF-S Mount
• Super 35-Sized HDR Sensor
• Record 6K 6144 x 3456 up to 50 fps
• Dual Native 400 & 3200 ISO to 25,600
• 5" 1920 x 1080 Touchscreen Display
• Record up to 120 fps Windowed HD
• CFast 2.0 & SD/UHS-II Card Slots
• External Recording via USB Type-C
• 13-Stop Dynamic Range, 3D LUT Support
• Includes DaVinci Resolve Studio License

Lens Mount    Canon EF
Lens Communication    Yes
Sensor Resolution    Effective: 21.2 Megapixel (6144 x 3456)
Sensor Type    23.1 x 12.99 mm (Super35) CMOS
Built-In ND Filter    None
ISO Sensitivity    100 to 25,600 (Expanded)
Shutter Type    Rolling Shutter
Advertised Dynamic Range    13 Stops
Internal Recording
Raw Recording    Raw:
6144 x 3456 at 23.98/24/25/29.97/30/50 fps (49 to 483 MB/s)
6144 x 2560 at 23.98/24/25/29.97/30/50/59.94/60 fps (37 to 359 MB/s)
5744 x 3024 at 23.98/24/25/29.97/50/59.94/60 fps (40 to 395 MB/s)
Recording Modes    ProRes 422HQ:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 to 117.88 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 to 110 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (27.5 MB/s)
ProRes 422:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (78.63 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18.4 MB/s)
ProRes 422LT:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (54.63 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (51 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (12.75 MB/s)
ProRes 422 Proxy:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (5.6 MB/s)
Variable Frame Rates    Up to 120 fps
External Recording
Video Output    4:2:2 10-Bit via HDMI:
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Raw Output    USB:
6144 x 3456 at 23.98/24/25/29.97/30/50 fps
6144 x 2560 at 23.98/24/25/29.97/30/50/59.94/60 fps
5744 x 3024 at 23.98/24/25/29.97/30/50/59.94/60 fps
Video Connectors    1 x HDMI Output
Audio Connectors    1 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Built-In Microphone Type    Stereo
Other I/O    1 x USB Type-C Video Output
1 x 3.5 mm Timecode Input (Shared with 3.5 mm Mic/Line input)
Wireless Interfaces    Bluetooth Control
Size    5"
Resolution    1920 x 1080
Display Type    Fixed Touchscreen LCD
EVF
EVF    Optional, Not Included
Power
Battery Type    Canon LP-E6
Power Connectors    1 x Weipu SF610/S2 Input
Environmental
Operating Temperature    32 to 104°F / 0 to 40°C
Storage Temperature    -4 to 113°F / -20 to 45°C
Operating Humidity    0 to 90%
Accessory Mount    1 x 1/4"-20 Female
Tripod Mounting Thread    1/4"-20 Female
Material of Construction    Carbon Fiber
Dimensions    7 x 4 x 3.8" / 177.8 x 101.6 x 96.52 mm
Weight    1.98 lb / 898 g
Packaging Info
Package Weight    3.8 lb
Box Dimensions (LxWxH)    10.8 x 7.4 x 6.9"

• Blackmagic Design Pocket Cinema Camera 6K (Canon EF/EF-S)
• Lens Port Cap
• Camera Strap
• Power Supply with International Adapters (30W)
• LP-E6 Battery
• DaVinci Resolve Studio Activation Key
