Manfrotto MVH500AH Flat Base Video Head


inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
  • Product Description
  • Specifications
  • What's in the Box?

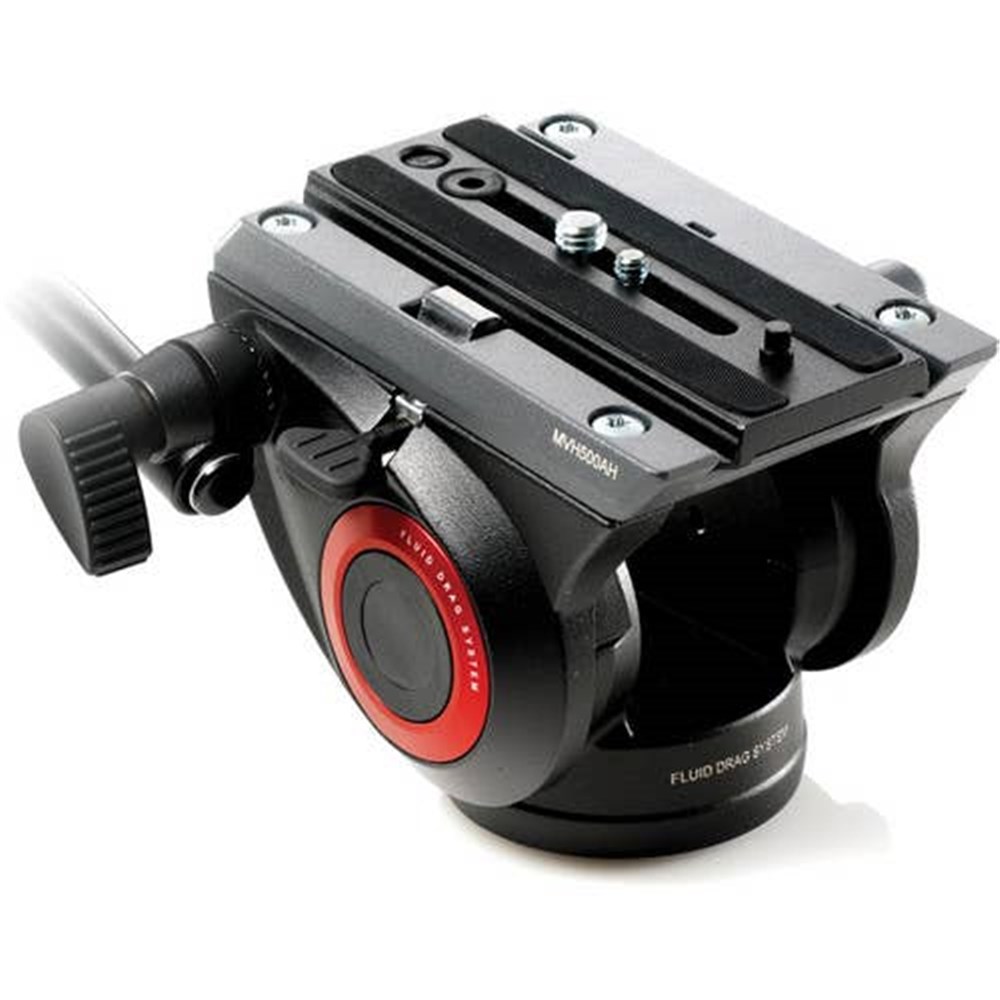

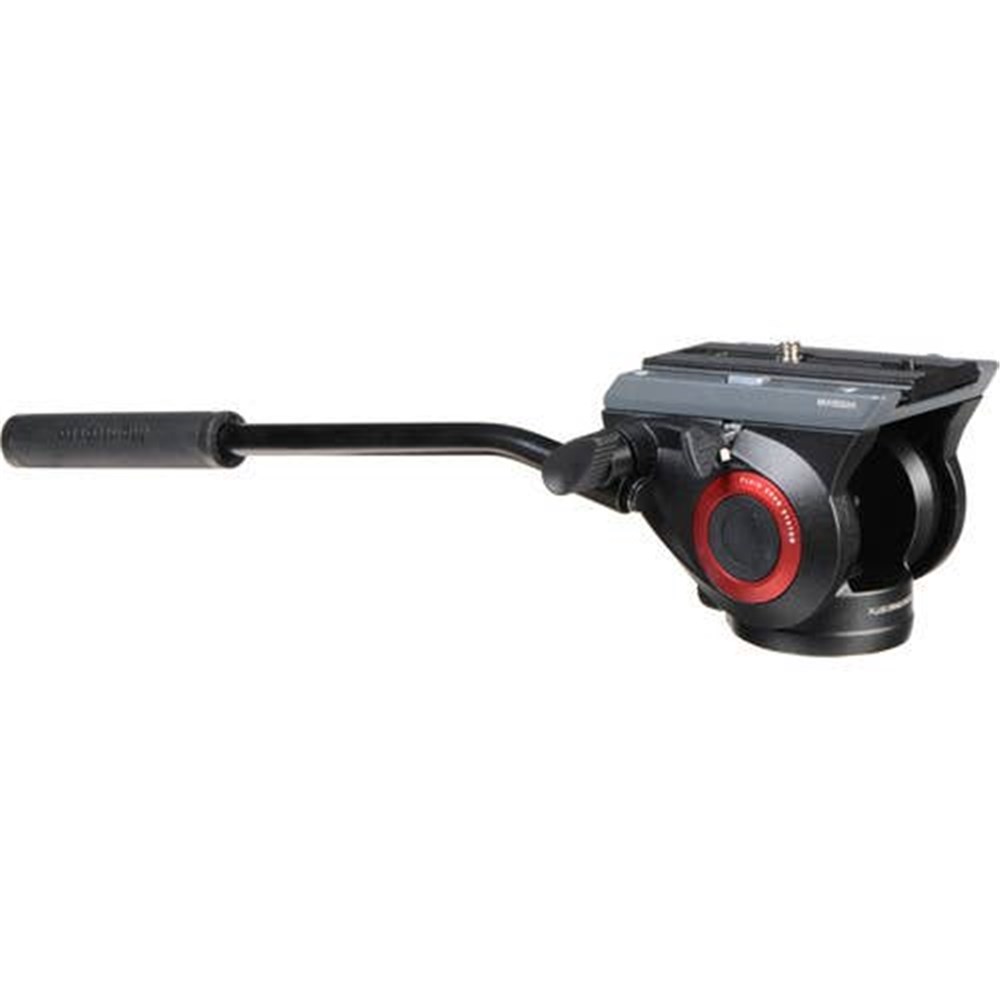

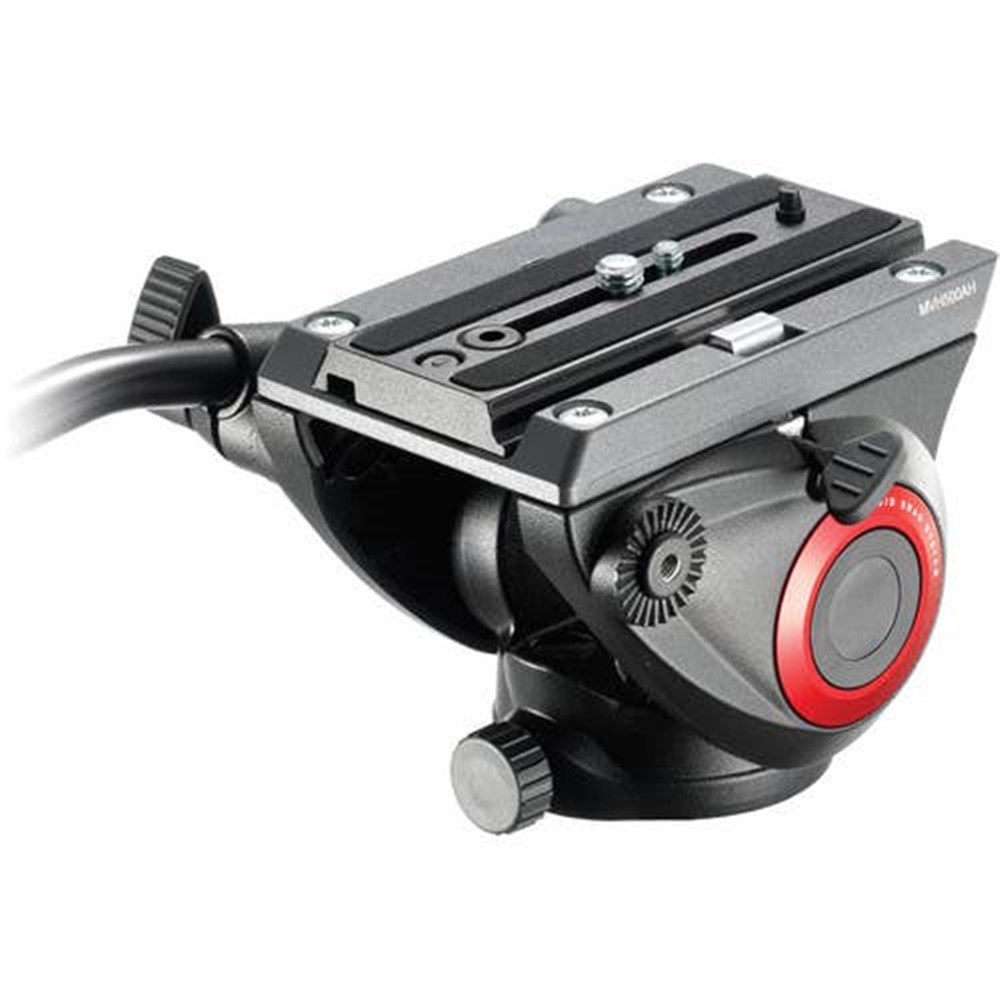

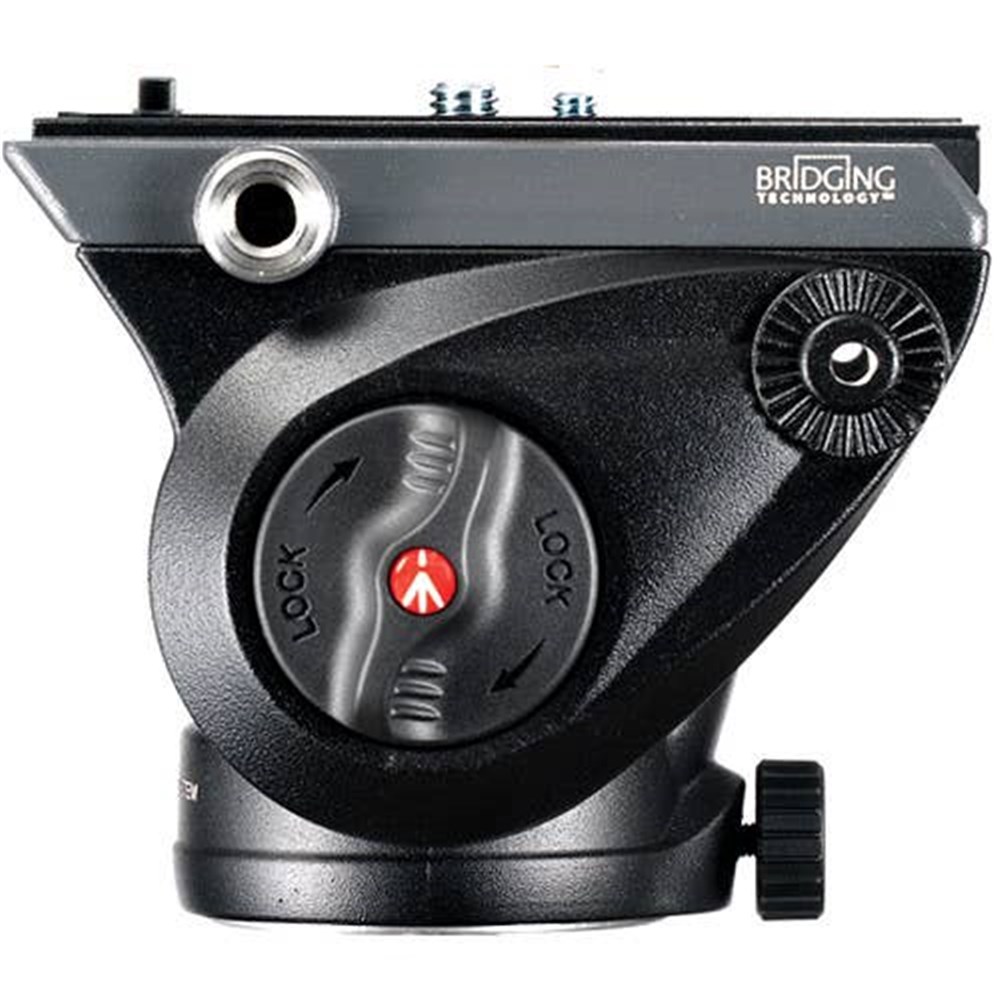

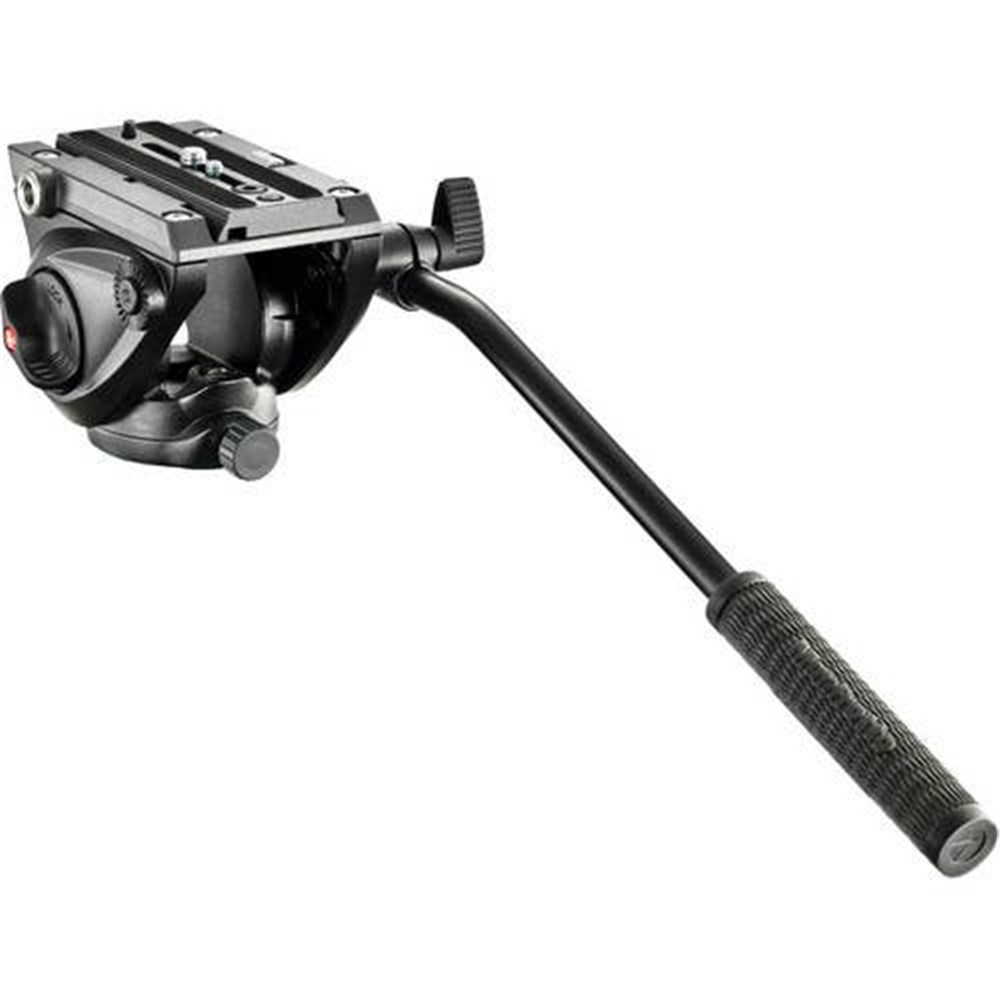

Manfrotto MVH500AH Flat Base Video Head

Key Features
  • Load Capacity: 17.6 lb
  • Wide Platform for HDSLRs
  • Side Lock System for Safer Mounting
  • Aluminum Alloy Construction
  • Spring Loaded Counterbalance
  • Includes Long Quick Release Plate
  • 1/4 inch and 3/8 inch Camera Attachment
  • Additional 3/8 inch Accessory Connection

The Manfrotto MVH500AH Fluid Video Head is designed with a wide platform, optimal for HDSLR camera bodies. Smooth and precise, it has a maximum load capacity of 17.6 lb and professional quality fluid cartridges on both its pan and tilt axes. It has a pre-set spring-loaded counterbalance of 5.3 lb, its lateral tilt range is -70°/+90° and it provides 360° panning rotation.

The side lock system on the MVH500AH allows the camera and sliding QR plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. This makes it easier and safer to mount your camera on this head. The head attaches to a tripod via a 3/8 inch - 16 thread and includes a 500PLONG sliding balance plate with a captive 1/4 inch - 20 tie-down screw and a 3/8 inch - 16 adapter bushing. It also provides an Easy Link 3/8" connector on the side of the head to attach accessories such as a video monitor.

Load Capacity    5 kg
Weight    0.9 kg
Materials    Aluminum Alloy
Quick Release    Yes - 500PLONG
Counterbalance Weight    Pre-set to 2.4 kg
Counterbalance System    Yes
Bubble Spirit Level (No.)    Yes/No
Tilt Drag    Yes - fluid cartridge with fixed drag
Pan Bar Included    1
Load Capacity    5 kg
Height    9.5 cm
Temperature Range    -20 - 60 C
Leveling Bubble/Illuminated    Yes/No
Pan Bar    1 - included
Pan Lock    Yes
Pan Range    360
Spring Loaded Counter Balance    Yes
  • Manfrotto MVH500AH Fluid Video Head
  • Manfrotto MVH500AH Fluid Video Head with Flat Base
  • 500PLONG Quick Release Plate
  • Handle
