Manfrotto 300XM Modular Gimbal

Manfrotto 300XM Modular Gimbal

Key Features

• 7.5 lb Payload
• Customizable Modular Design
• Touch LCD Access to Most Modes/Settings
• 501PL Platform & QR Plate
• Axis Locks for Easy Balancing
• 360° Panoramic Range
• Tilt: +110 to -45°, Roll: +20 to -20°
• Up to 10-Hour Battery Life
• iOS/Android Companion App
• Dual Charging Ports
• The gimbal and handle feature internal batteries, so they can be used independently, and they recharge both handle and gimbal at the same time
• Multifunctional knob for greater control and focus points
• LCD touchscreen and joystick operation for easy gimbal setup, with or without the app
• Balancing position memory on both vertical and cross arms provides quick camera setup for fast, repeatable results from shoot to shoot
• 501PL-type quick release plate base with extra higher block for longer lens camera
• 10-hour usage time; 2.6-hour charge time
• Extendable cross arm for wider camera compatibility

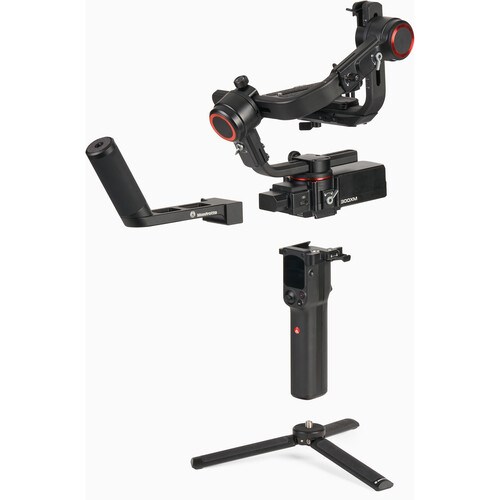

• Versatile handle for shooting at different angles, detachable for easy storage and transportation
• Detachable mini tripod base for easy gimbal setup and standing use
• Compatible with Manfrotto GimBoom collection and all supports included in the Manfrotto Move system

Grip Design    Single Handgrip
Gimbal
Load Capacity    7.5 lb / 3.4 kg
Number of Axes    3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Rotation Range    Mechanical Range
Pitch (Tilt): 360°
Pitch (Tilt): 340°
Roll: 340°
Controllable Range
Yaw (Pan): 360°
Pitch (Tilt): 155° (-45 to 110°)
Roll: 40° (-20 to 20°)
Follow Speed    Tilt: 2 to 75°/s
Pan: 3 to 150°/s
Camera Control    On Compatible Models (See Full Compatibility List)
Connectivity
Inputs/Outputs    1 x USB-C (Power) Input
1 x USB-C (Control) Output
Wireless Protocol    Wi-Fi (Unspecified Type)
Battery
Battery Type    1 x Built-In
Battery Capacity    2500 mAh
Battery Runtime    10 Hours
Battery Charging Time    2.6 Hours
Battery Chemistry    Lithium-Ion
General
Display Type    Fixed Touchscreen LCD
Materials    ABS, Aluminum
Mounting    1 x 3/8"-16 Female
1 x 1/4"-20 Female
Dimensions    18.1 x 7.71 x 14.41" / 45.97 x 19.58 x 36.61 cm
Weight    4.4 lb / 2 kg
Packaging Info
Package Weight    9.5 lb
Box Dimensions (LxWxH)    14.8 x 12 x 4"

• Manfrotto MVG300XM Modular Gimbal
• Quick Release Plate
