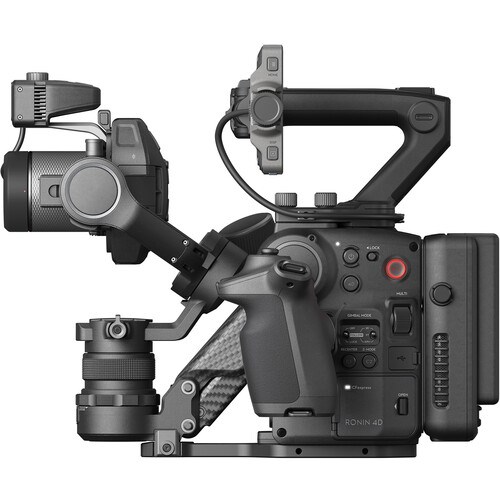

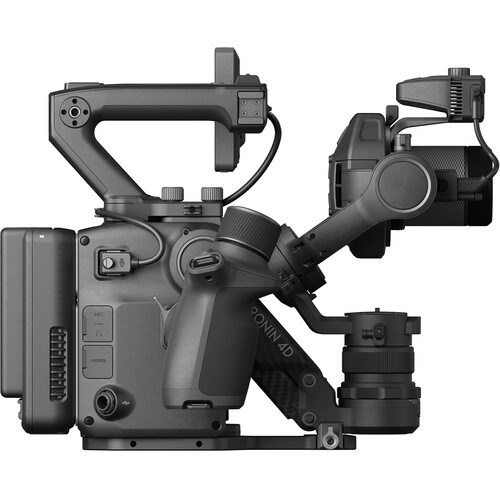

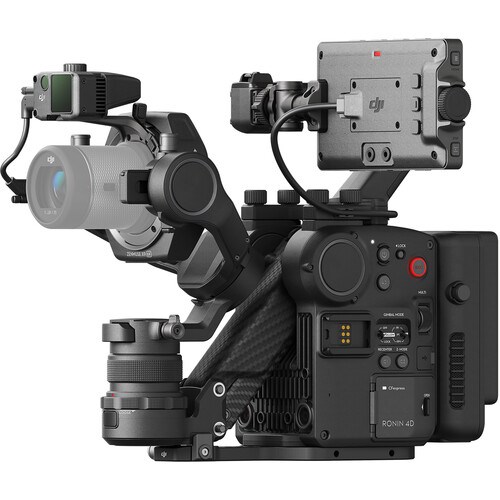

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo

• All-in-One Camera Gimbal System
• This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig
• Combination design reduces your setup time at the start of the day and in between setups and locations
• Included modular components:
• Left and right control handgrips
• ProSSD 1TB media drive
• LiDAR range finder
• Top Handle
• Baseplate
• Separately available components:
• 7" high-bright, touchscreen monitor
• Wireless video transmitter
• X9 focus motor
• Leica M lens mount
• 3-channel FIZ lens control unit
• CineCore 3.0 Imaging Processing System
• The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing
• The Ronin 4D uses the CineCore 3.0 system to support internal recording of Apple ProRes Raw, ProRes 422 HQ, and H.264 video
• Industry-standard ACES workflow support provide easy compatibility with other cinema cameras
• Advanced 4-Axis Stabilization
• Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves
• Z-axis stabilization built into the camera, 3-axis stabilization in the gimbal
• Tilt stabilization uses dual, symmetrical motors
• Pan and X (roll) axes with additional stiffness buffering
• Downward ToF (time of flight) sensor
• Forward and downward-facing dual-vision sensors
• Built-in IMU (inertial measurement unit) and barometer
• New and improved stabilization algorithm
• Zenmuse X9-8K Camera with DL Lens Mount
• The D4's DL lens mount supports DJI's current selection of lightweight, carbon fiber 16, 24, 35, and 50mm lenses
• Full-frame capture with all but the 16mm DL lens
• Interchangeable lens mounts available for use with Sony E-mount or Leica M-mount lenses
• Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses
• Please see the current lens compatibility list here
• Captures Raw, 4:22 HQ, and H.264
• Captures 8K full-frame raw at rates up to 75 fps in full-frame 2.39:1
• Captures up to 5.5K raw at rates up to 60 fps in Super 35 17:9
• Capture up to 8K30 ProRes 422 HQ video in 17:9 full-frame
• Capture up to DCI 4K60 ProRes 422 HQ or H.264 in 17:9 full-frame or Super35
• Dual Native ISO
• 800/5000 dual native ISO
• EI 200 to 12800
• 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions
• In-Camera ND Filters
• Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions
• Especially handy for outdoor shoots with changing cloud cover
• Motorized filter system
• Carry in "built" mode for easy company moves
• LiDAR Focus Control
• LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range
• Excellent focusing performance even in low-light environments
• Focus pulling can be viewed graphically, thanks to a built-in depth meter
• Intuitive and highly accurate focusing system
• Modular LiDAR focusing module attached to the front of the D4 rig
• Autofocus Features
• Maintains focus, even when motion blur is produced by fast-moving subjects
• Separately available focus motor for use with manual lenses
• Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators
• Automated Manual Focus
• The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus
• Operators can grab the focus wheel of the right handgrip at any time to manually focus
• Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes
• ActiveTrack Pro
• DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate
• ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system
• Dual Focus, Iris, and Control Grips
• Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)
• Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode
• Single User or Crew-Assisted Operation
• Top-notch stabilization in a lightweight form
• Ideal for both solo operators as well as assistant-accompanied shoots
• Designed to counter footsteps from inexperienced gimbal shooters
• Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted
• Sport mode is available with the touch of a button, accommodating faster-paced action
• Use in standard, underslung, jib, and crane setups
• Media Storage Options
• Requires a ProSSD 1TB drive (included) to capture raw footage
• USB Type-C port for external recording; no reader needed to offload footage
• Integrated CFexpress Type-B card slot

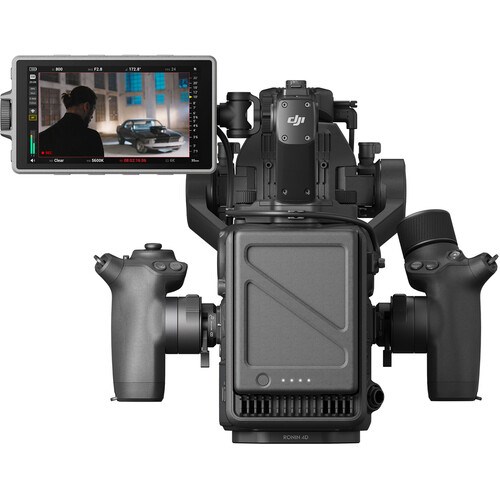

• Built-In 5.5" Touchscreen Monitor
• 5.5" 1920 x 1080 monitor
• 1000 cd/m² display
• Touchscreen control
• Audio Recording
• Integrated stereo microphones capture dual-channel 24-bit audio
• Built-in 3.5mm audio input port and XLR port via expander plate
• Power Options
• Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2
• Each battery provides up to 2.5 hours of capture time
• Batteries charge fully in approximately 1.5 hours
• Support auto-heating for cold weather use
• AC adapter for uninterrupted shooting

Lens Mount    DL
Interchangeable Lens Mount    Yes
Sensor Resolution    Effective: 35.4 Megapixel
Sensor Type    Full-Frame CMOS
Image Stabilization    Digital, 4-Axis
Built-In ND Filter    Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256), 9 Stop (1/512) ND Filters
Internal Filter Holder    Yes
ISO Sensitivity    800 to 5000 (Native)
200 to 12,800
Shutter Type    Rolling Shutter
Shutter Speed    1/24 to 1/8000 sec
Advertised Dynamic Range    14 Stops
White Balance    2000 to 11,000K
Gimbal
Rotation Range    Yaw (Pan): 285°
Pitch (Tilt): 210° (-55 to 155°)
Roll: 70° (-35 to 35°)
Z-Axis Adjustment Range    5.1" / 130 mm
Follow Speed    Pan/Tilt/Roll: 360°/s using DJI Master Wheels or Pro Force
Pan/Tilt/Roll: 120°/s using Ronin 4D Handgrip
Load Capacity    2.1 lb / 960 g
Internal Recording
Raw Recording    Raw:
8192 x 4320
Recording Modes    ProRes 422HQ:
8192 x 4320p at 23.98/24/25/29.97/30 fps
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/120 fps
H.264 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60 fps
Gamma Curve    HDR-HLG, Rec709
Audio Recording    2-Channel 48 kHz LPCM Audio
Still Image Support    None
External Recording
Video Output    USB:
8192 x 4320p at 23.98/24/25/29.97/30 fps
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
SDI/BNC:
8192 x 4320p at 23.98/24/25/29.97/30 fps
4096 x 2160p at 23.98/24/25/29.97/59.94/60 fps
Raw Output    USB In Raw, Full Frame Mode:
8192 x 4320 at 23.98/24/25/29.97/30/50/59.94/60/72/75 fps
IP Streaming    None
Interface
Media/Memory Card Slot    Single Slot: DJI ProSSD
Single Slot: CFexpress Type B
Video Connectors    1 x BNC (3G-SDI) Output
1 x HDMI Output
Audio Connectors    1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Built-In Microphone Type    Stereo
Other I/O    1 x USB Type-C USB 3.1 Gen 1 Data, Video Input/Output
1 x Proprietary Monitor Output
1 x BNC Timecode
Monitor
Size    5.5"
Resolution    1920 x 1080
Display Type    Tilting Touchscreen LCD
EVF
EVF    Optional, Not Included
Power
Battery Type    DJI TB50
Power Connectors    1 x Barrel (12 to 30 VDC) Input
Environmental
Operating Temperature    14 to 104°F / -10 to 40°C
Storage Temperature    -4 to 140°F / -20 to 60°C
Physical
Material of Construction    Carbon Fiber, Aluminum, Magnesium Alloy
Accessory Mount    2 x 1/4"-20 Female
1 x 3/8"-16 Female
2 x Cold Shoe Mount
Dimensions    12.2 x 11.4 x 10.9" / 309 x 290 x 277 mm (With Protrusions)
9.3 x 6.3 x 4.5" / 235 x 160 x 115 mm (Without Protrusions)
Weight    10.3 lb / 4.67 kg
3.2 lb / 1.45 kg
2.29 lb / 1.04 kg

• DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
• Zenmuse X9-8K Gimbal Camera
• DL Mount
• DL Mount Body Cap
• DL Mount Lens Cap
• X9 Gimbal Base Cap
• Ronin 4D Gimbal Base Cap
• Main Body
• 2 x Handgrip
• Handgrip Extended Control Stick
• Top Handle
• High-Bright Main Monitor
• TB50 Battery Mount
• TB50 Intelligent Battery
• 2 x Handgrip Strap
• Power Adapter
• 8 x AC Power Cable
• TB50 Charging Adapter
• Baseplate
• LiDAR Range Finder/Focus Motor Cable
• USB Type-A to Type-C Cable
• Ronin 4D Carrying Case
• Ball-End Allen Key (3mm)
• 6 x 1/4"-20 Screw (10mm)
• LiDAR Range Finder
• LiDAR Range Finder Holder
• C-Shaped DL Mount Ring
• 2 x M2-3 Screw (3mm)
• Ball-End Allen Key (1.5mm)
