• Model

  • DMMT02

  • Dimensions

  • 28.58×28.04×13.52 mm (L×W×H)

  • Weight

  • Approx. 11 g (excluding the magnet clip and magnet)

  • Wireless Mode

  • GFSK 2Mbps

  • Equivalent Isotropic Radiated Power (EIRP)

  • < 20 dBm

  • Wireless Mode Operating Frequency

  • 2.400-2.4835 GHz

  • Bluetooth Protocol

  • Bluetooth 5.3

  • Bluetooth Operating Frequency

  • 2.400-2.4835 GHz

  • Bluetooth Transmitter Power (EIRP)

  • < 20 dBm

  • Battery Type

  • Li-ion

  • Battery Capacity

  • 114 mAh

  • Battery Energy

  • 0.45 Wh

  • Battery Voltage

  • 3.87 V

  • Charging Specification

  • Max 5 V

  • Charging Temperature

  • 5° to 45° C (41° to 113° F)

  • Operating Temperature

  • -10° to 45° C (14° to 113° F)

  • Charging Time

  • Approx. 70 minutes

  • Operating Time

  • Approx. 11.5 hours

    Measured using DJI Mic Mini 2 (2 TX + 1 RX), with noise cancellation off, during close-range audio recording under interference-free conditions, with the transmitter connected to the receiver and the receiver connected to a camera via the Camera Audio Cable (3.5mm TRS).

DJI Mic Mini Receiver

  • Model

  • DMMR01

  • Dimensions

  • 46.50×29.61×19.32 mm (L×W×H)

  • Weight

  • Approx. 17.8 g (including the interface cover)

  • Wireless Mode

  • GFSK 2Mbps

  • Equivalent Isotropic Radiated Power (EIRP)

  • < 20 dBm

  • Operating Frequency

  • 2.400-2.4835 GHz

  • Bluetooth Protocol

  • Bluetooth 5.3

  • Bluetooth Transmitter Power (EIRP)

  • < 20 dBm

  • Bluetooth Operating Frequency

  • 2.400-2.4835 GHz

  • Battery Type

  • Li-ion

  • Battery Capacity

  • 170 mAh

  • Battery Energy

  • 0.66 Wh

  • Battery Voltage

  • 3.87 V

  • Charging Specification

  • Max 5 V

  • Charging Temperature

  • 5° to 45° C (41° to 113° F)

  • Operating Temperature

  • -10° to 45° C (14° to 113° F)

  • Charging Time

  • Approx. 100 minutes

  • Operating Time

  • Approx. 10.5 hours

    Measured using DJI Mic Mini 2 (2 TX + 1 RX), with noise cancellation off, during close-range audio recording under interference-free conditions, with the transmitter connected to the receiver and the receiver connected to a camera via the Camera Audio Cable (3.5mm TRS).

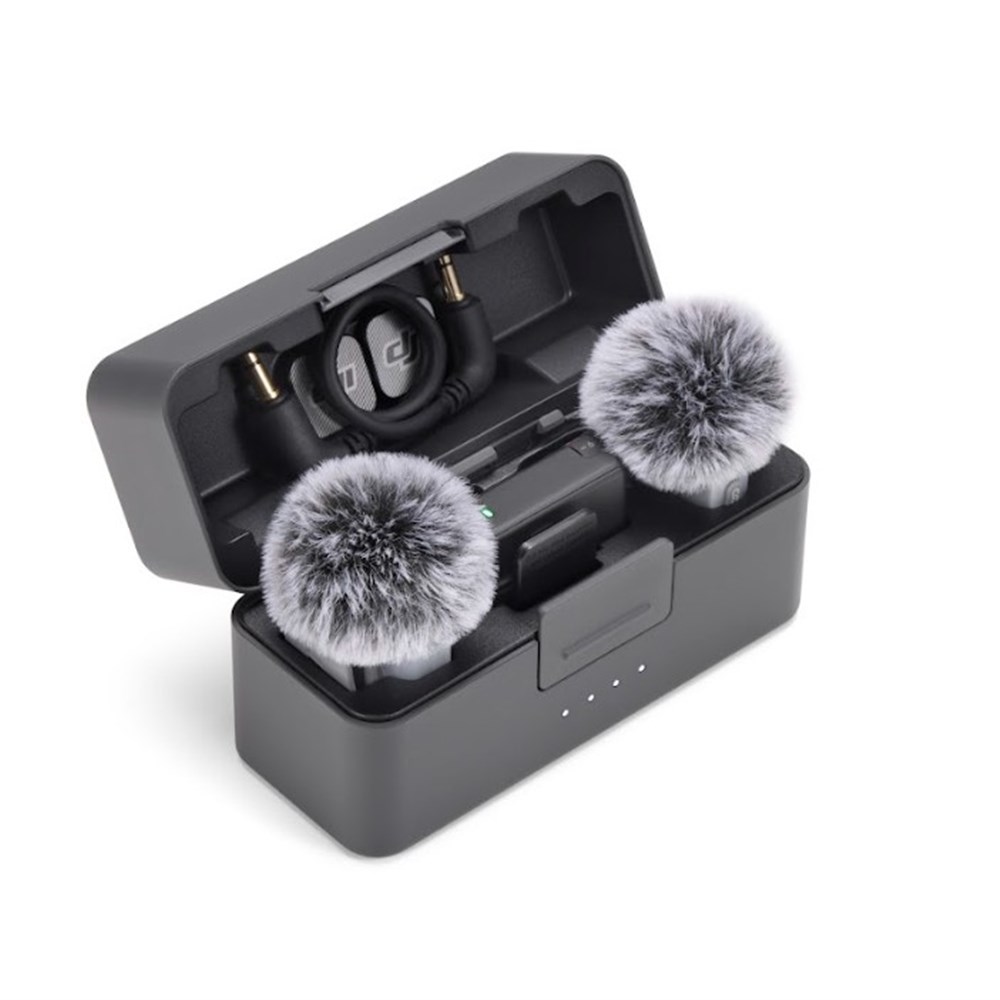

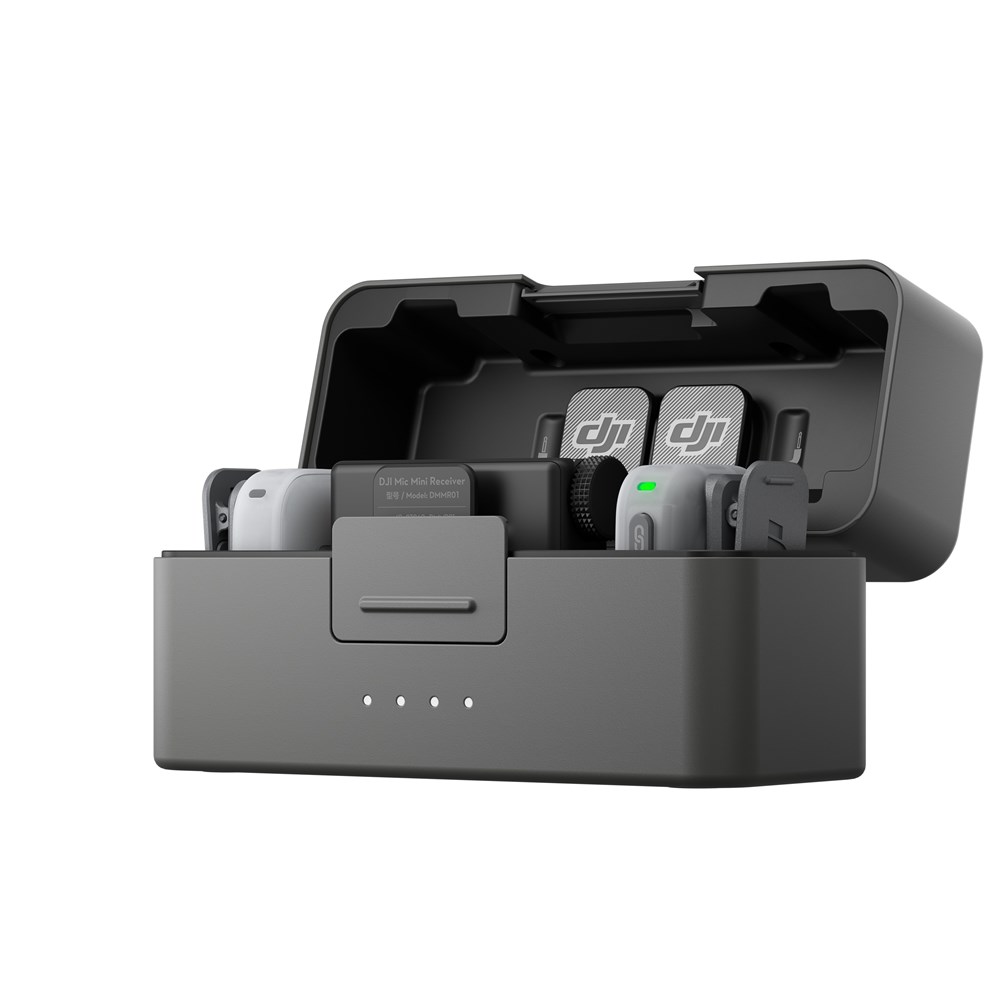

DJI Mic Mini 2 Charging Case

  • Model

  • DMMC02

  • Dimensions

  • 106.30×42.50×59.20 mm (L×W×H)

  • Weight

  • Approx. 159.3 g (charging case only)

  • Battery Type

  • Li-ion

  • Battery Capacity

  • 1950 mAh

  • Battery Energy

  • 7.55 Wh

  • Battery Voltage

  • 3.87 V

  • Charging Specification

  • Max 5 V, 3 A

  • Charging Temperature

  • 5° to 40° C (41° to 104° F)

  • Operating Temperature

  • 5° to 45° C (41° to 113° F)

  • Charging Time

  • Approx. 2 hours

  • Charging Cycles for TX and RX

  • When charging two transmitters and one receiver simultaneously, a fully charged charging case can fully charge them for approx. 3.6 times.

DJI Mic Series Mobile Receiver

  • Model

  • DMMR02

  • Dimensions

  • 39.26×27.26×8.97 mm (L×W×H)

  • Weight

  • Approx. 6.5 g

  • Wireless Mode

  • GFSK 2Mbps

  • Equivalent Isotropic Radiated Power (EIRP)

  • < 20 dBm

  • Operating Frequency

  • 2.400-2.4835 GHz

  • Bluetooth Protocol

  • Bluetooth 5.3

  • Bluetooth Transmitter Power (EIRP)

  • < 20 dBm

  • Bluetooth Operating Frequency

  • 2.400-2.4835 GHz

  • Charging Temperature

  • 5° to 45° C (41° to 113° F)

  • Operating Temperature

  • -10° to 45° C (14° to 113° F)

DJI Mic Mini 2 Charging Case (1 TX + 1 Mobile RX)

  • Model

  • DMMCS2

  • Dimensions

  • 78.8×33.07×44.70 mm (L×W×H)

  • Weight

  • Approx. 71.0 g (charging case only)

  • Battery Type

  • Li-ion

  • Battery Capacity

  • 275 mAh

  • Battery Energy

  • 1.07 Wh

  • Battery Voltage

  • 3.87 V

  • Charging Specification

  • Max 5 V, 3 A

  • Charging Temperature

  • 5° to 40° C (41° to 104° F)

  • Operating Temperature

  • 5° to 45° C (41° to 113° F)

  • Charging Time

  • Approx. 1 hour

  • Charging Cycles for TX

  • Approx. 1.3 cycles when charging one TX

General

  • Polar Pattern

  • Omnidirectional

  • Frequency Response

  • Low Cut Off: 20 Hz - 20 kHz
    Low Cut On: 100 Hz - 20 kHz

  • Maximum Sound Pressure Level (SPL)

  • 120 dB SPL@1% THD

  • Max Input Level (3.5 mm)

  • -

  • Equivalent Noise

  • 24 dBA

  • Monitor Interface Output Power

  • 20 mW@1 kHz, 32 Ω (DJI Mic Series Mobile Receiver)

  • Max Transmission Distance

  • 400 m*

    300 m**

    200 m***

    * When used with the DJI Mic Mini Receiver in DJI Mic Mini 2 (2 TX + 1 RX), transmission distance can reach up to 400 m in open, unobstructed, interference-free environments.
    ** When used with the DJI Mic Series Mobile Receiver in green light mode with two DJI Mic Mini 2 or two DJI Mic Mini transmitters, transmission distance can reach up to 300 m in open, unobstructed, interference-free environments.
    *** When used with the DJI Mic Series Mobile Receiver in blue light mode, mixing any two from DJI Mic Mini 2, DJI Mic 3, DJI Mic Mini, or DJI Mic 2 transmitters, transmission distance can reach up to 200 m in open, unobstructed, interference-free environments.
