Canon XF605 4K Camcorder

116591

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
My Store:
Change Store
  • Product Description
  • Specifications
  • What's in the Box?

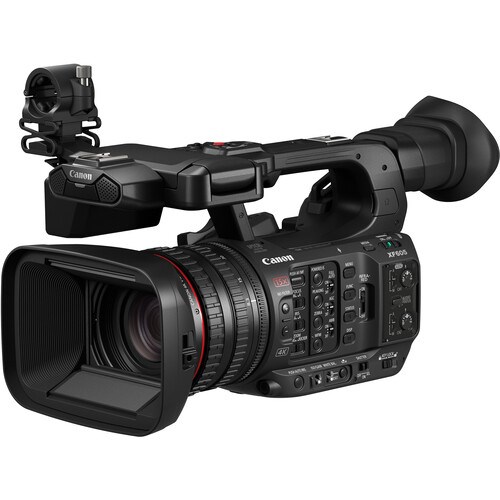

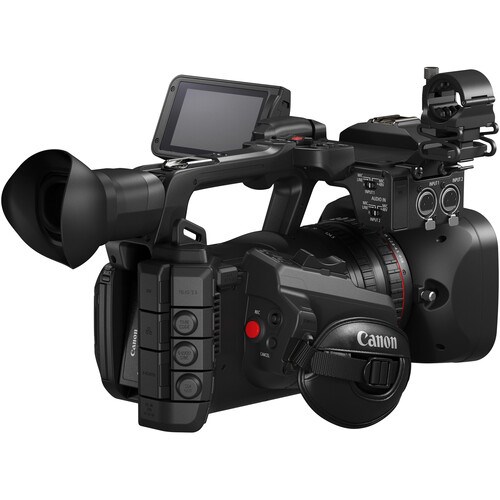

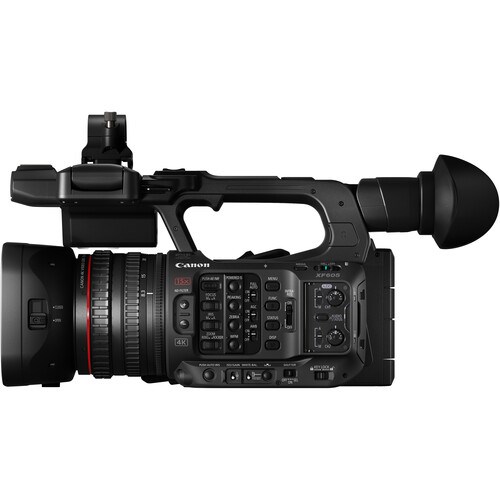

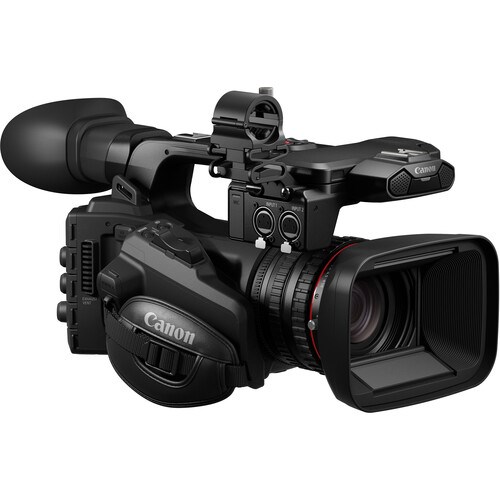

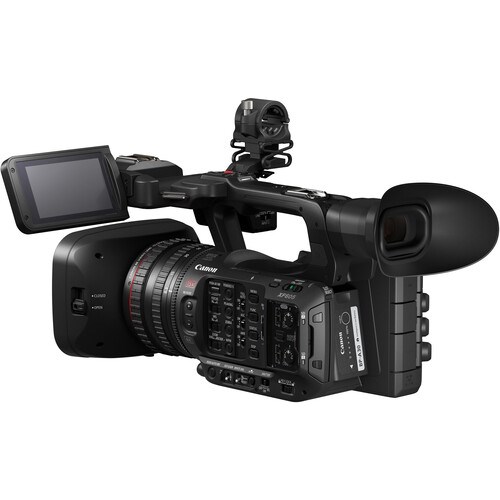

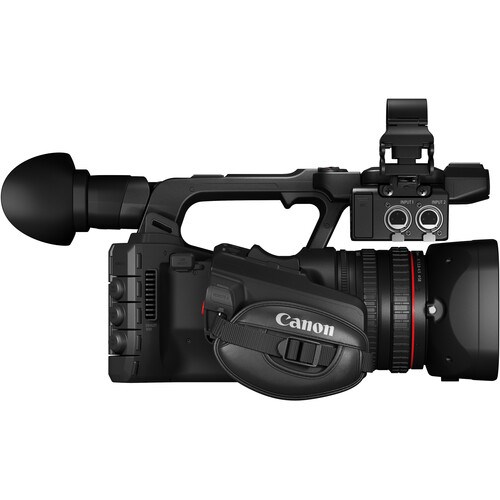

Canon XF605 UHD 4K HDR Pro Camcorder

  • 1" CMOS Sensor, 4:2:2 10-Bit
  • H.265/H.264 MP4 Format, XF-AVC
  • UHD 4K up to 60 fps, 1080p to 120 fps
  • iOS App | 15x Optical/30x Digital Zoom
  • Dual-Pixel CMOS Autofocus Feature
  • HDR Recording, Canon Log 3, Wide DR
  • 12G-SDI & HDMI Outputs
  • Optical & Digital Stabilization
  • Four XLR Inputs, 4-Channel LPCM Audio
  • Discrete Focus, Iris, Zoom Lens Rings
  • Eye AF zeroes in on your subject's eye for crisp eye focus
  • EOS iTR AF X (head detection) does a neat trick of remaining focused on your subject even after they turn their head to the side or away from the camera
Imaging
Sensor Resolution    Actual: 13.4 Megapixel (4268 x 3148)
Effective: 8.29 Megapixel (3840 x 2160)
Sensor Type    1" CMOS Sensor
Image Stabilization    Optical in Integrated Lens
Digital
Built-In ND Filter    Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Shutter Type    Rolling Shutter
Shutter Speed    1/4 to 1/2000 sec
Shutter Angle    11 to 360°
Sensitivity    f/12 at 2000 lux
Minimum Illumination    1.5 Lux at 1/30 Shutter Speed
White Balance    2000 to 15,000K
Lens
Focal Length    8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm)
Optical Zoom Ratio    15x
Max Digital Zoom    30x ( in 1080p)
Maximum Aperture    f/2.8
Minimum Aperture    f/4.5
Optical Design    18 Elements in 14 Groups
Minimum Focus Distance    Entire Zoom Range: 2.0' / 60.0 cm
Wide: 0.4" / 1.0 cm
Filter Size    58 mm
Control Rings    Focus
Zoom
Iris
Focus Control    Autofocus
Manual Focus
Recording
Recording Modes    MXF/XF-AVC 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (160 to 410 Mb/s)
1920 x 1080p at 23.98/25/29.97/30/50/59.94/120 fps (50 to 310 Mb/s)
1920 x 1080i at 50/59.94 fps (50 to 160 Mb/s)
1280 x 720p at 23.98/25/29.97/30/50/59.94 fps
H.265/MP4 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (135 to 225 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (12 Mb/s)
H.265/MP4 4:2:0 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 170 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (9 Mb/s)
H.264/MP4 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (150 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s)
1280 x 720p at 50/59.94 fps
Variable Frame Rates    to 120 fps
Gamma Curve    Canon Log 3, HDR-HLG
Audio Recording    2-Channel 16-Bit 48 kHz AAC Audio
4-Channel 24-Bit 48 kHz LPCM Audio
Still Image Support    Not Specified by Manufacturer
IP Streaming    MPEG2: 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 16.00 Mb/s)
MPEG2: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s)
Interface
Media/Memory Card Slot    Slot 1: SD/SDHC/SDXC
Slot 2: SD/SDHC/SDXC
Video Connectors    1 x HDMI (HDMI 2.0) Output
1 x BNC (12G-SDI) Output
Audio Connectors    2 x 3-Pin XLR Input
1 x 1/8" / 3.5 mm Stereo Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Built-In Microphone Type    Stereo
Other I/O    1 x USB Type-A Output
1 x USB Type-C
1 x BNC Genlock, Sync Input/Output
1 x BNC Timecode Input/Output
1 x 2.5 mm Control
1 x 8-Pin D-Sub Control
1 x RJ45 LAN Input/Output
Wireless Interfaces    2.4 / 5 GHz MIMO Wi-Fi Video Output, Audio Output, Control
Monitor
Size    3.45"
Resolution    2,760,000 Dot
Display Type    Articulating Touchscreen LCD
EVF
EVF    Attached
EVF Display Type    OLED
Screen Size    .36"
EVF Resolution    1,770,000 Dots
Power
Battery Type    Canon BP-A Series
Power Connectors    1 x Barrel (24 VDC) Input
Power Consumption    21.5 W
Environmental
Operating Temperature    32 to 104°F / 0 to 40°C
Operating Humidity    0 to 85%
Physical
Accessory Mount    1 x Cold Shoe Mount
1 x Multi-Interface Shoe
Tripod Mounting Thread    1/4"-20 Female
3/8"-16 Female
Built-In Light    Yes (Infrared)
Dimensions    15.2 x 8.6 x 8.3" / 385 x 219 x 210 mm (With Protrusions)
13.1 x 6.8 x 6.6" / 333 x 173 x 168 mm (Without Protrusions)
Weight    4.4 lb / 2010 g
  • Canon XF605 UHD 4K HDR Pro Camcorder
  • Canon BP-A30 Battery Pack for EOS C300 Mark II, C200, and C200B
  • Canon CA-CP200L Compact AC Power Adapter
  • Lens Cap
  • Lens Hood
