Canon C70 Cinema Camera

115533

  • This Product is marked as "Special Order" - We do not usually have in-store stock of this item, but it is available to order. Please be aware that average wait times for "Special Order" items can be anywhere from 2 - 4 weeks (Subject to supplier indication and changes)

FREE BONUS BATTERY WITH PURCHASE!

'BPA60N'

✓ Copied to clipboard!

Should the Bonus Battery Model not be in stock at the time of your camera purchase, Diamonds Camera will endeavour to get it to you ASAP.

inc GST
Increase value Decrease value
  • Product Description
  • Specifications
  • What's in the Box?
  • Warranty

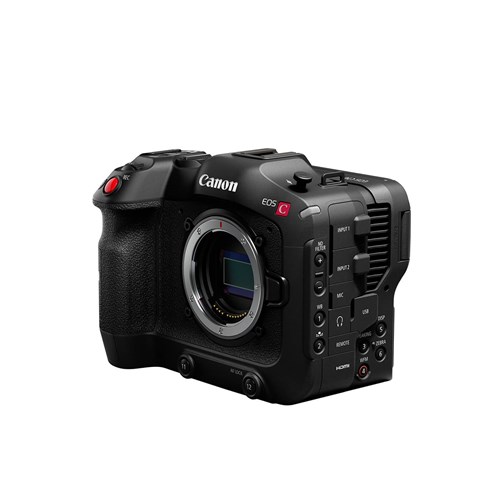

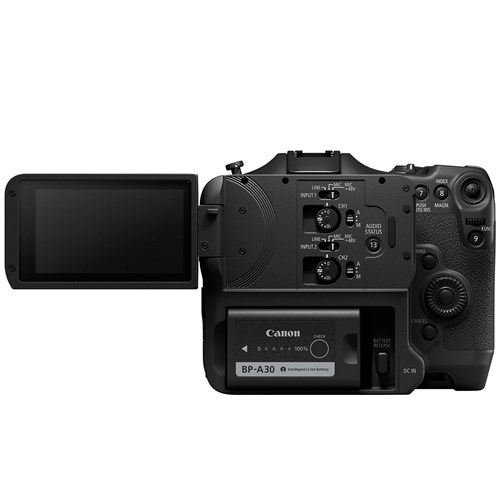

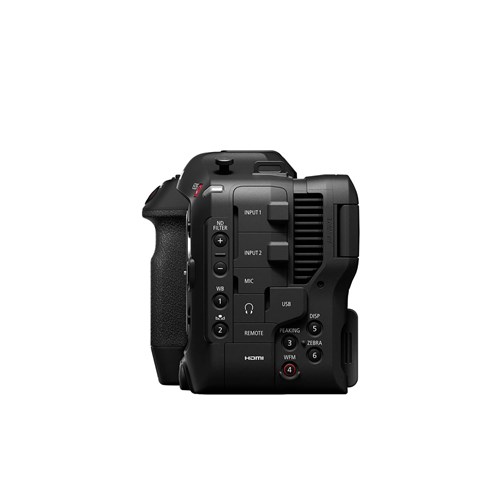

Canon EOS C70 Cinema Camera (RF Lens Mount)

  • Super35 Dual Gain Output (DGO) Sensor
  • DCI 4K 60p, Hi-Speed UHD 4K 120p/2K 180p
  • Canon Log 2, 3, PQ & HLG HDR Recording
  • RF Lens Mount / EF Mount with Adapter
  • DIG!C DV7 Image Processor
  • 16+ Stops of Total Dynamic Range
  • Built-In ND Filters / Auto ISO & Gain
  • Dual Pixel CMOS AF & EOS iTR AF X
  • 1 BNC Timecode / 2 Mini-XLR Audio Inputs
  • Dual SD Card Slots, LUT/Long GOP Support
  • EF Lens Compatibility with Optional Adapter
  • Direct Touch Control
  • 9 x 16 Vertical Capture
  • Mini-XLR Audio Inputs
  • Built-In ND Filters
  • Timecode Input/Output
  • Dual SD Card Slots / Multiple Recording Options
  • Standard and High Frame Rate to 4K 120p
Imaging
Lens Mount    Canon RF
Interchangeable Lens Mount    None
Lens Communication    Yes
Sensor Resolution    Actual: 9.6 Megapixel (4206 x 2280)
Effective: 8.85 Megapixel (4096 x 2160)
Sensor Type    26.2 x 13.8 mm (Super35) CMOS
Sensor Windowing    2K (2048 x 1080) in 16:9 When Recording in Super 16
Pixel Pitch    6.4 µm
Built-In ND Filter    Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64), 8 Stop (1/256), 10 Stop (1/1024) ND Filters
ISO Sensitivity    100 to 102,400
Shutter Type    Rolling Shutter
Shutter Speed    1/12 to 1/2000 sec (In 60p Mode)
1/15 to 1/2000 sec (In 50p Mode)
Shutter Angle    11 to 360°
Gain    -6 to 54 dB (Native)
-2 to 54 dB (Expanded)
Advertised Dynamic Range    16 Stops
White Balance    2000 to 15,000K
Internal Recording
Recording Modes    XF-AVC 4:2:2 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/60 fps (24 to 410 Mb/s)
4096 x 2160i at 50/59.94 fps (24 to 410 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/60 fps (24 to 410 Mb/s)
3840 x 2160i at 50/59.94 fps (24 to 410 Mb/s)
2048 x 1080p at 23.98/24/25/29.97/50/60 fps (24 to 410 Mb/s)
2048 x 1080i at 50/59.94 fps (24 to 410 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/60 fps (24 to 410 Mb/s)
1920 x 1080i at 50/59.94 fps (24 to 410 Mb/s)
1280 x 720p at 23.98/24/25/29.97/30/50/59.94 fps (24 to 410 Mb/s)
1280 x 720i at 50/59.94 fps (24 to 410 Mb/s)
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 10-Bit:
4096 x 2160p at 119.88/120 fps
3840 x 2160p at 119.88/120 fps
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 8-Bit:
2048 x 1080p at 179.82/180 fps
1920 x 1080p at 179.82/180 fps
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 8-Bit:
2048 x 1080p at 23.98/24/25/29.97/50/59.94 fps (24 to 35 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (24 to 35 Mb/s)
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (135 to 225 Mb/s)
3840 x 2160p at 50/59.94 fps (135 to 225 Mb/s)
2840 x 1080p at 23.98/24/25/29.97/50/59.94 fps (50 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (50 Mb/s)
1280 x 720p at 50/59.94 fps (12 Mb/s)
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 170 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 170 Mb/s)
2048 x 1080p at 23.98/24/25/29.97/50/59.94 fps (35 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (35 Mb/s)
1280 x 720p at 50/59.94 fps (9 Mb/s)
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 10-Bit:
4096 x 2160p at 119.88/120 fps
3840 x 2160p at 119.88/120 fps
2048 x 1080p at 179.82/180 fps
1920 x 1080p at 179.82/180 fps
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 8-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (150 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (150 Mb/s)
2048 x 1080p at 23.98/24/25/29.97/50/59.94 fps (35 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (35 Mb/s)
1280 x 720p at 50/59.94 fps (8 Mb/s)
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 8-Bit:
4096 x 2160p at 119.88/120 fps
3840 x 2160p at 119.88/120 fps
2048 x 1080p at 179.82/180 fps
1920 x 1080p at 179.82/180 fps
Variable Frame Rates    DCI 4K: 12 to 120 fps
DCI 2K (Windowed): 12 to 180 fps
Gamma Curve    Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Wide DR
Audio Recording    4-Channel 24-Bit 48 kHz LPCM Audio
Still Image Support    JPEG
External Recording
Video Output    4:2:2 10-Bit via HDMI:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps
2048 x 1080p at 23.98/24/25/29.97/50/59.94 fps
1280 x 720p at 23.98/24/25/29.97/50/59.94 fps
IP Streaming    Yes
Interface
Media/Memory Card Slot    Dual Slot: SD/SDHC/SDXC
Video Connectors    1 x HDMI Output
Audio Connectors    2 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Built-In Microphone Type    Stereo
Mono
Other I/O    1 x USB Type-C Control, Video Input/Output
1 x BNC Timecode Input/Output
1 x 2.5 mm LANC Control
Monitor
Size    3.5"
Resolution    2,760,000 Dot
Display Type    Articulating Touchscreen LCD
EVF    Optional, Not Included
Power
Battery Type    Canon BP-A Series
Power Connectors    1 x Barrel (11.5 to 20 VDC) Input
Environmental
Operating Temperature    32 to 104°F / 0 to 40°C (Recommended)
Operating Humidity    85% (Recommended)
Physical
Accessory Mount    1 x 1/4"-20 Female
2 x Cold Shoe Mount
Tripod Mounting Thread    1/4"-20 Female (Bottom)
1/4"-20 Female (Side)
Dimensions    6.3 x 5.1 x 4.6" / 160 x 130 x 116 mm
Weight    2.58 lb / 1.17 kg
  • Canon EOS C70 Cinema Camera (RF Lens Mount)
  • Canon CA-CP200L Compact AC Power Adapter
  • CG-A20 Battery Charger
  • AC Power Cable
  • Canon BP-A30 Battery Pack for EOS C300 Mark II, C200, and C200B
  • Handle Unit
  • Microphone Holder
  • Body Cap
  • SS-1200 Shoulder Strap
  • Tape Measure Hook
  • Shoe Mount Bracket
2 Year Warranty
