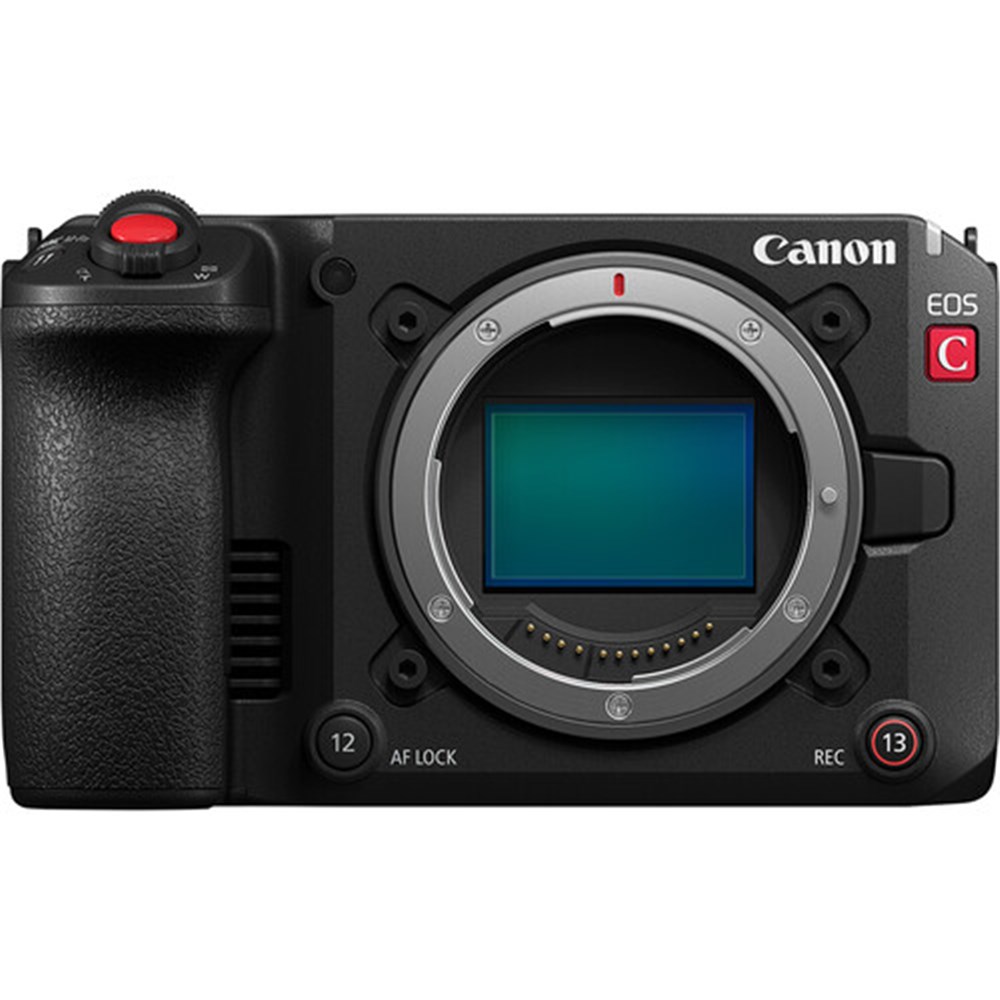

Canon EOS C50 Cinema Camera

Key Features

7K FF Back-Illuminated CMOS Sensor
7K 3:2 Open Gate, UHD 4K120, 2K180
Dual-Base ISO: 800 and 6400
Full-Size HDMI Output, DIN Timecode Port
Dual-Pixel CMOS AF II

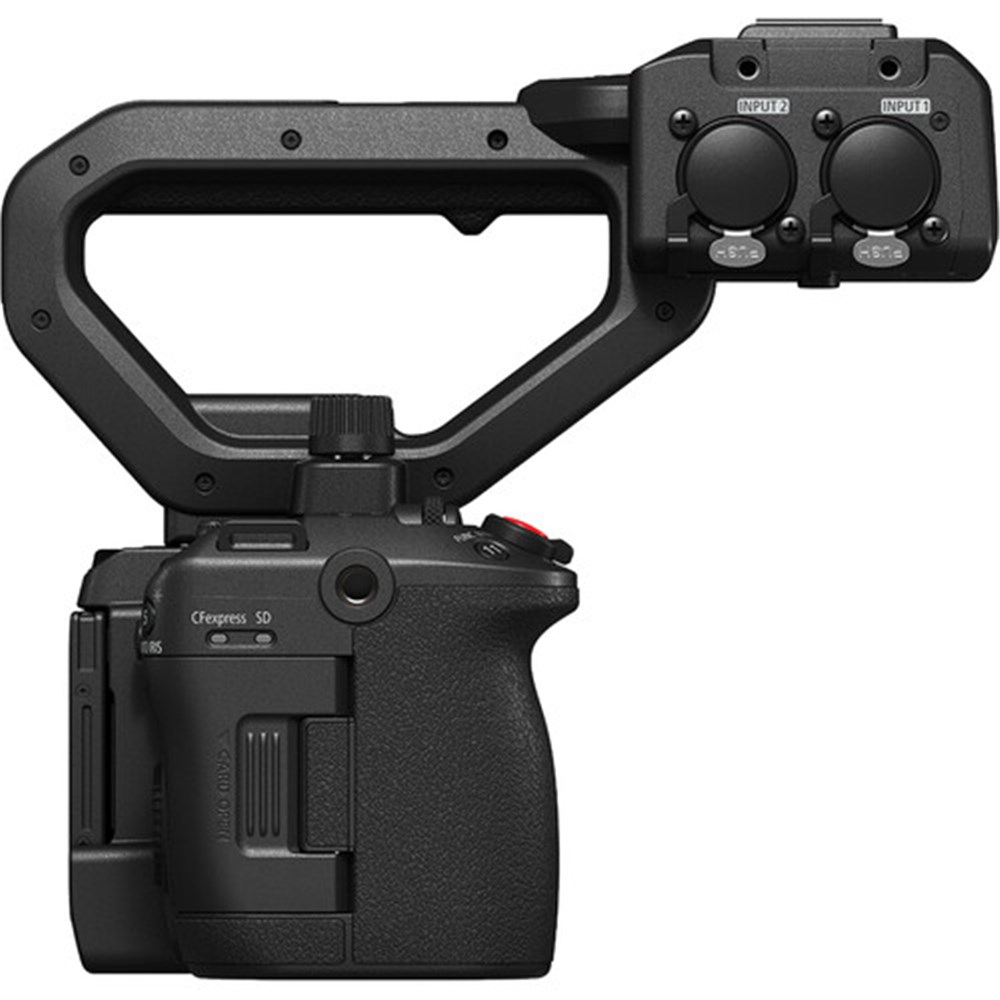

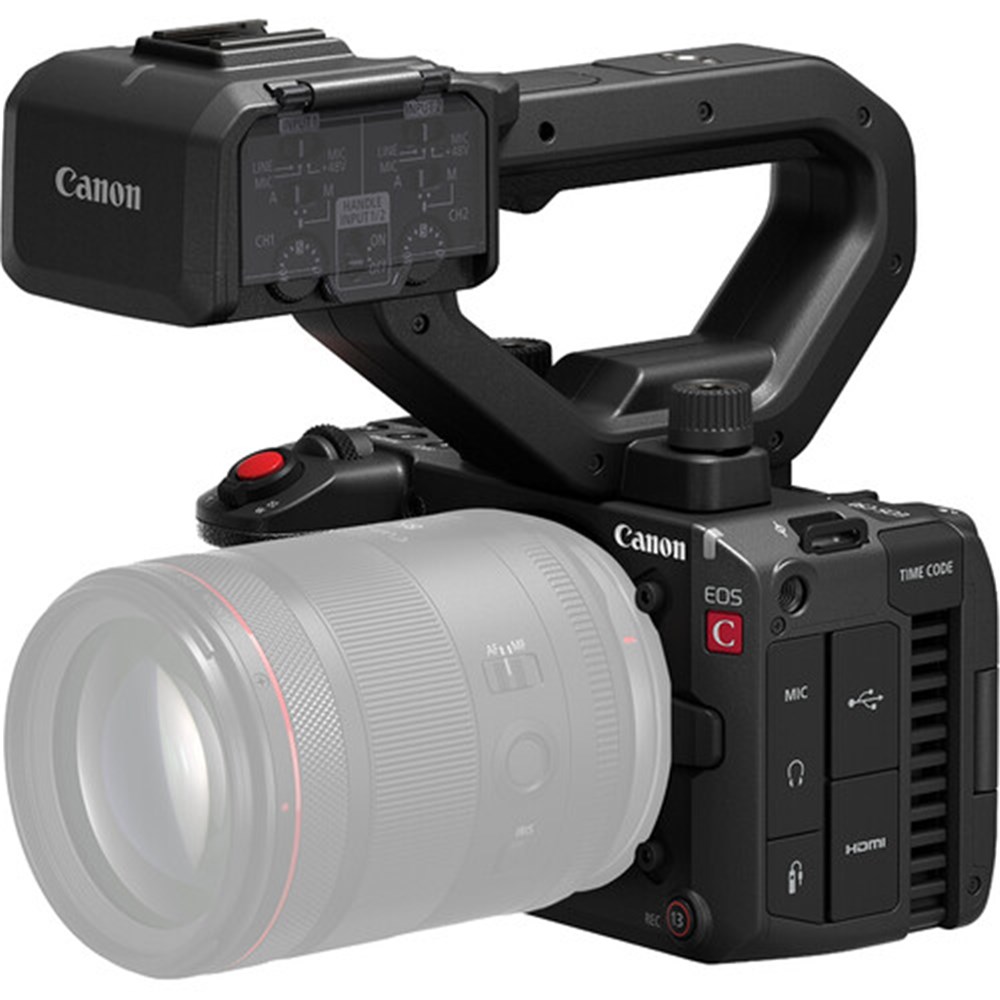

Top Handle with XLR Audio Inputs
Adjustable-Speed Zoom Rocker
Simultaneous Crop Recording
Frame.io Camera-to-Cloud Integration
CFexpress Type-B and SD Card Slots

Featuring a newly developed 7K full-frame CMOS sensor, the Canon EOS C50 Cinema Camera is a compact powerhouse for your video and photo needs. The EOS C50 is capable of recording 3:2 Open Gate video at 4K120 and raw video up to 7K60, as well as 32MP stills in photo mode. Simply select between dedicated photo and video modes for an intuitive hybrid shooting experience. Additional advanced features of the C50 include Dual-Pixel CMOS AF II, simultaneous 2K crop recording, built-in Frame.io Camera-to-Cloud integration, and XC protocol support for remote control. An included detachable top handle equips you with two 3-pin XLR inputs as well as onboard controls for easy-to-reach adjustments.

Lens Mount	Canon RF
Image Sensor	Full-Frame CMOS
Sensor Resolution	Effective: 34.2 Megapixel (7144 x 4790)
Image Stabilization	No
ISO/Gain Sensitivity	Dual Base: 800 / 6400 Native: 100 to 25,600 (100 to 25,600 Extended) Dual Base: 400 / 3200* Native: 800 to 51,200 (800 to 102,400 Extended) *Base ISO Is Dependent on Selected Color Space
Internal Recording	Raw 12-Bit 6960 x 4640 at 23.98/24.00/25/29.97 fps 6960 x 3672 at 23.98/24.00/25/29.97/50/59.94 fps Raw 12-Bit 5036 x 2656 at 23.98/24.00/25/29.97/50/59.94 fps 2524 x 1332 at 23.98/24.00/25/29.97/50/59.94 fps Sensor Crops Video H.264/MPEG-4/XF-AVC S 4:2:2 10-Bit* 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps H.264/MPEG-4/XF-AVC S 4:2:0 8-Bit 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-AVC 4:2:2 10-Bit 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-HEVC S 4:2:2 10-Bit 6912 x 4608 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-HEVC S 4:2:0 10-Bit 6912 x 4608 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps

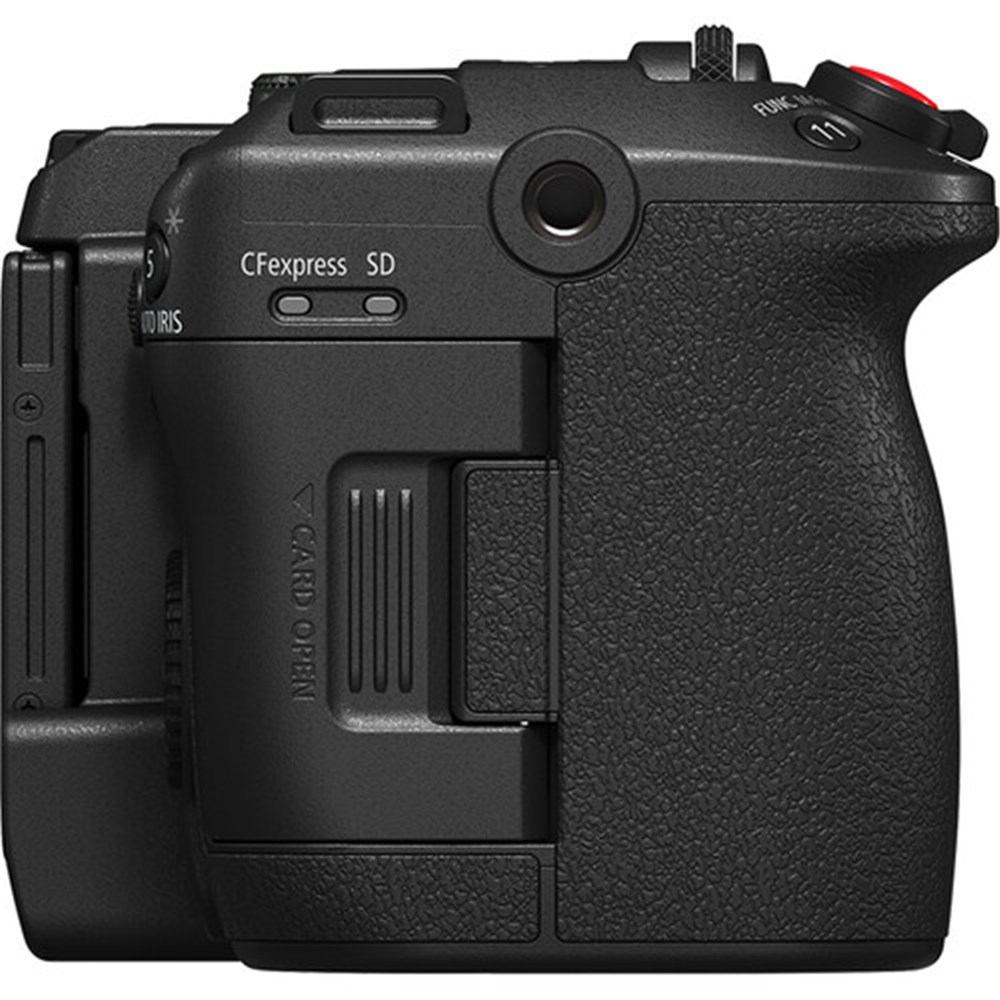

Media/Memory Card Slot	Slot 1: SD/SDHC/SDXC Slot 2: CFexpress Type B (CFast 2.0) [VPG-400 or Faster Recommended]
Video I/O	1x HDMI Output
Mobile App Compatible	Yes: Android & iOS
Battery Type	Canon LP-E6, Canon LP-E6NH

Imaging

Lens Mount	Canon RF
Lens Communication	Yes: Cooke /i
Image Sensor	Full-Frame CMOS
Sensor Resolution	Effective: 34.2 Megapixel (7144 x 4790)
Image Stabilization	No
Built-In ND Filter	No
Built-In CC Filter	No
Capture Type	Stills & Video

Exposure Control

Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/16000 to 30 Seconds
Shutter Angle	11.25 to 360°
ISO/Gain Sensitivity	Dual Base: 800 / 6400 Native: 100 to 25,600 (100 to 25,600 Extended) Dual Base: 400 / 3200* Native: 800 to 51,200 (800 to 102,400 Extended) *Base ISO Is Dependent on Selected Color Space
Signal-to-Noise Ratio	Not Specified by Manufacturer
Advertised Dynamic Range	16 Stops
Exposure Modes	Auto, Manual

Focus

Focus Modes

Automatic, Continuous-Servo AF, Manual Focus, One-Shot AF

Video Capture

Internal Recording	Raw 12-Bit 6960 x 4640 at 23.98/24.00/25/29.97 fps 6960 x 3672 at 23.98/24.00/25/29.97/50/59.94 fps Raw 12-Bit 5036 x 2656 at 23.98/24.00/25/29.97/50/59.94 fps 2524 x 1332 at 23.98/24.00/25/29.97/50/59.94 fps Sensor Crops Video H.264/MPEG-4/XF-AVC S 4:2:2 10-Bit* 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps H.264/MPEG-4/XF-AVC S 4:2:0 8-Bit 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-AVC 4:2:2 10-Bit 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-HEVC S 4:2:2 10-Bit 6912 x 4608 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-HEVC S 4:2:0 10-Bit 6912 x 4608 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
Fast-/Slow-Motion Support	Yes
Gamma Curve	Canon Log 2, Canon Log 3, Hyper Gamma
Built-In Microphone	No
Audio Recording	Raw, XF-AVC: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-HEVC S: 2-Channel, 16-Bit at 48 kHz via AAC LC Audio XF-HEVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC S: 2-Channel, 16-Bit at 48 kHz via AAC LC Audio XF-AVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio
IP Streaming	RTP, RTSP, SRT, UDP 920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s)

Interface

Media/Memory Card Slot	Slot 1: SD/SDHC/SDXC Slot 2: CFexpress Type B (CFast 2.0) [VPG-400 or Faster Recommended]
Internal Storage	No
Video I/O	1x HDMI Output

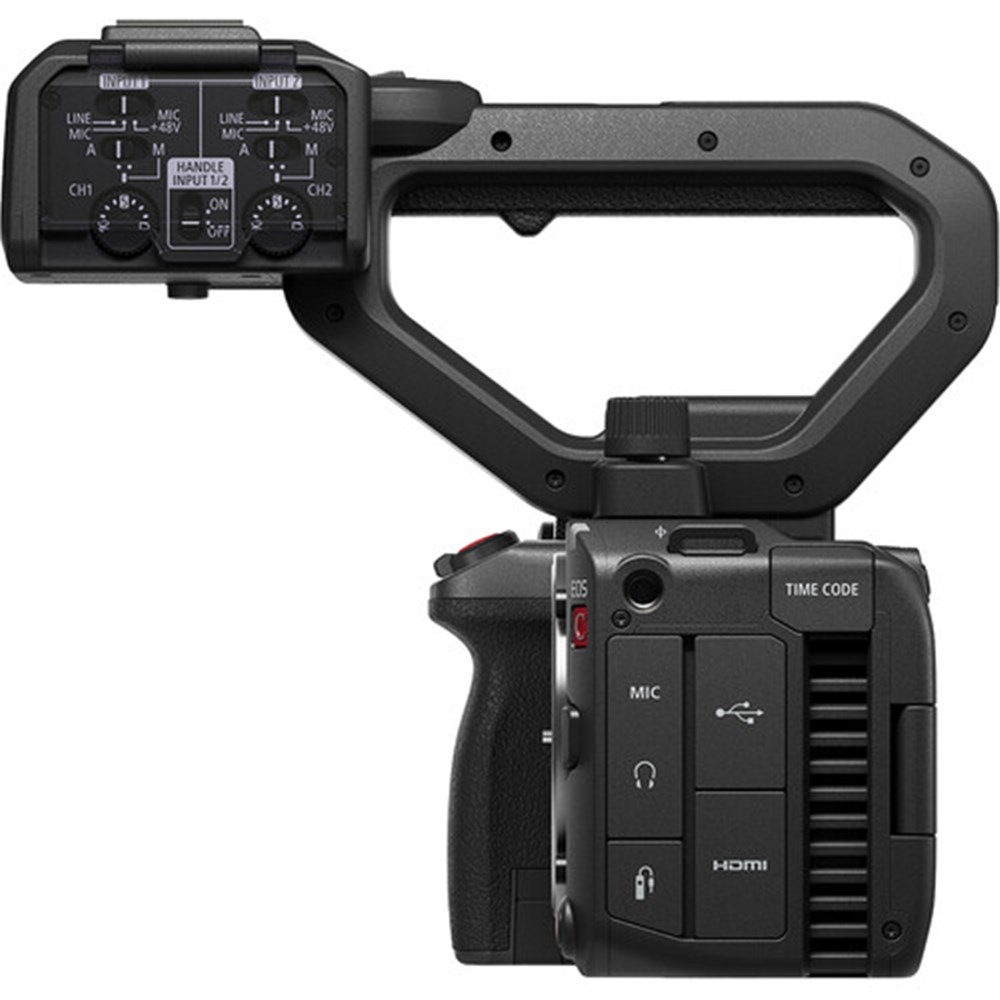

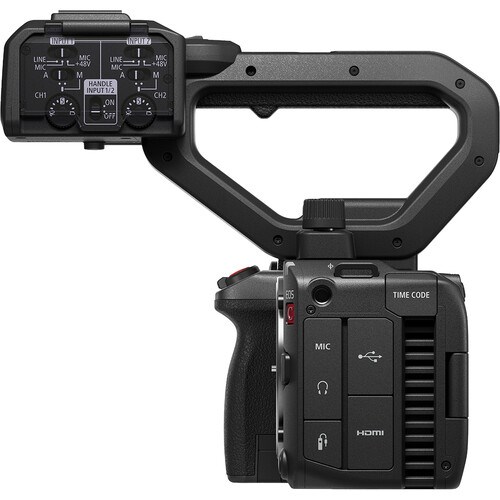

Audio I/O	2x XLR 3-Pin Mic/Line Input on Included Handle (+48 V Phantom Power) 1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body (Plug-in Power) 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O	1x USB-C
Other I/O	1x 2.5 mm Sub-Mini (Remote) Control 1x USB-C (Ethernet, UVC 1.5) (Shared with Power Input) 1x DIN 1.0/2.3 (Timecode) Input/Output 1x Proprietary
Wireless	Wi-Fi / 2.4 GHz Radio/RF / 5.8 GHz Radio/RF
Mobile App Compatible	Yes: Android & iOS App Name: Canon App
Global Positioning (GPS, GLONASS, etc.)	No

Monitor

Display Type

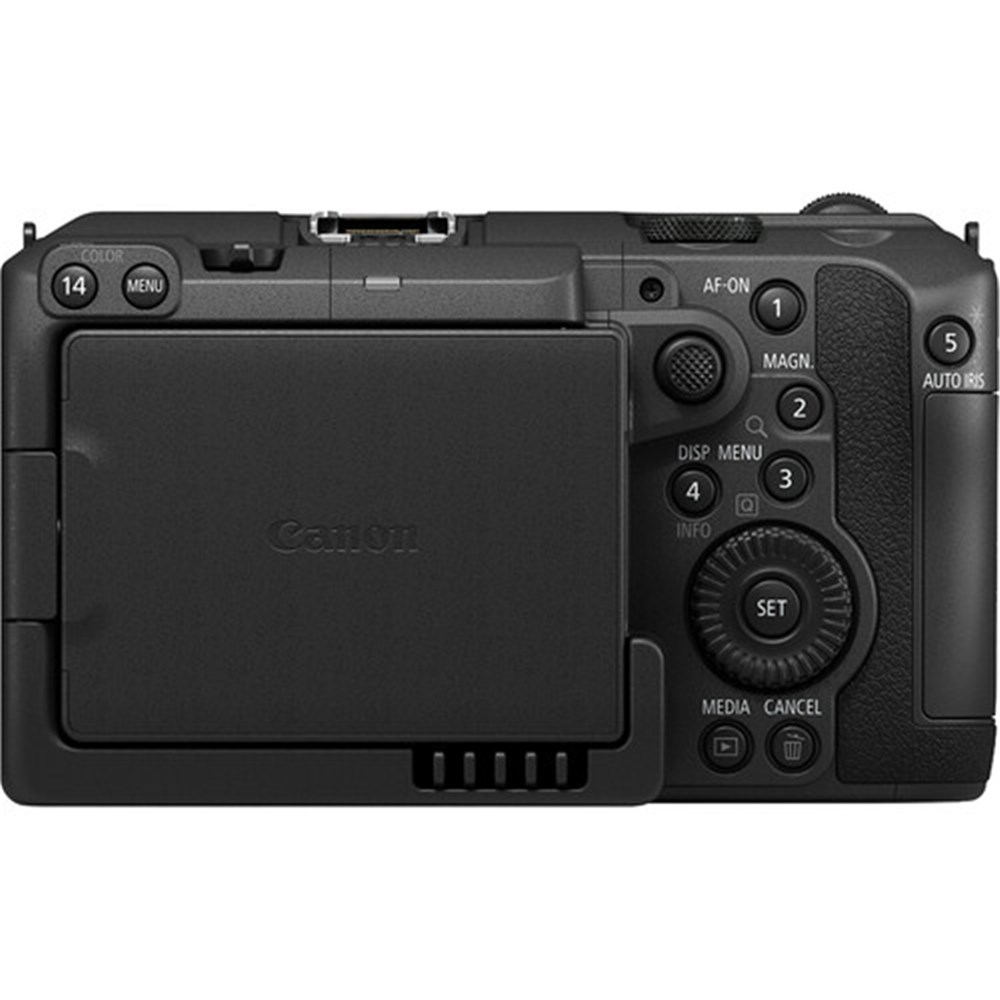

Articulating 3" Touchscreen LCD

Power

Battery Type

Canon LP-E6, Canon LP-E6NH

Environmental

Operating Conditions

23 to 113°F / -5 to 45°C at 60 to 85% Humidity

General

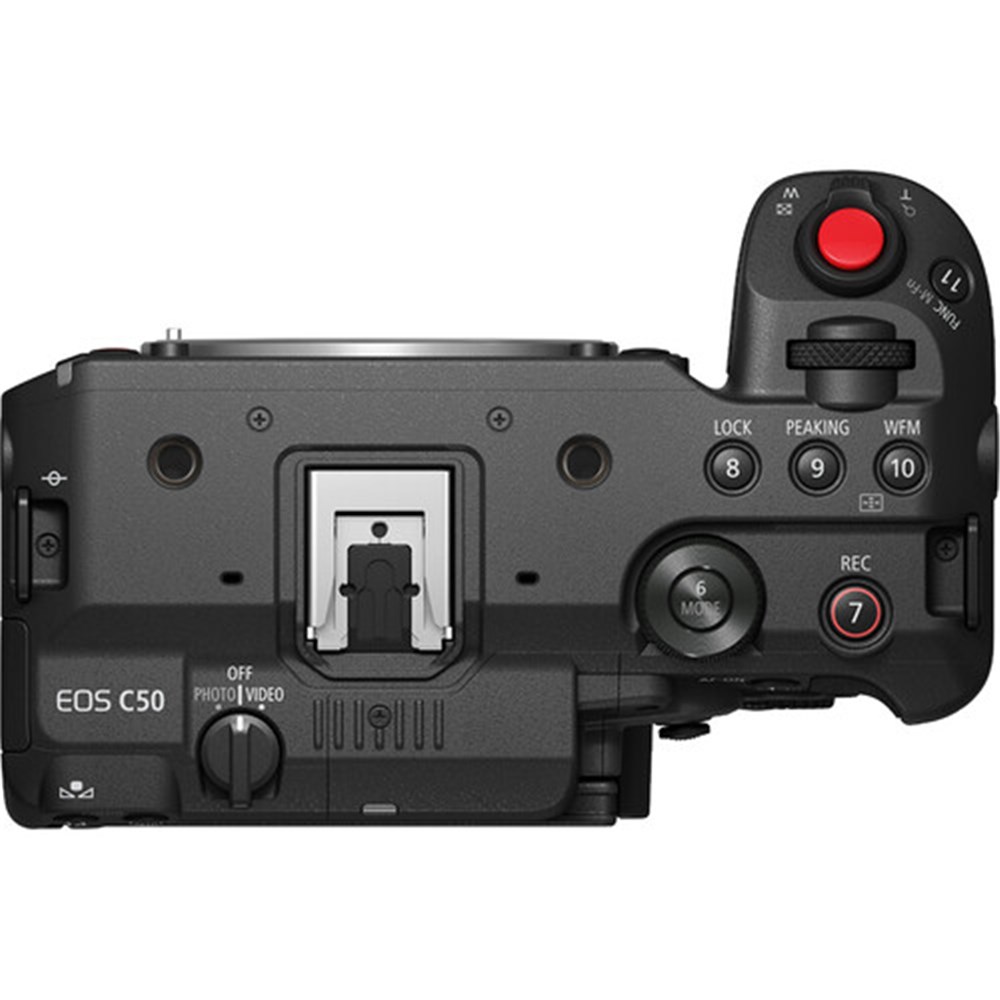

Shoe Mount	1x Intelligent Hot Shoe

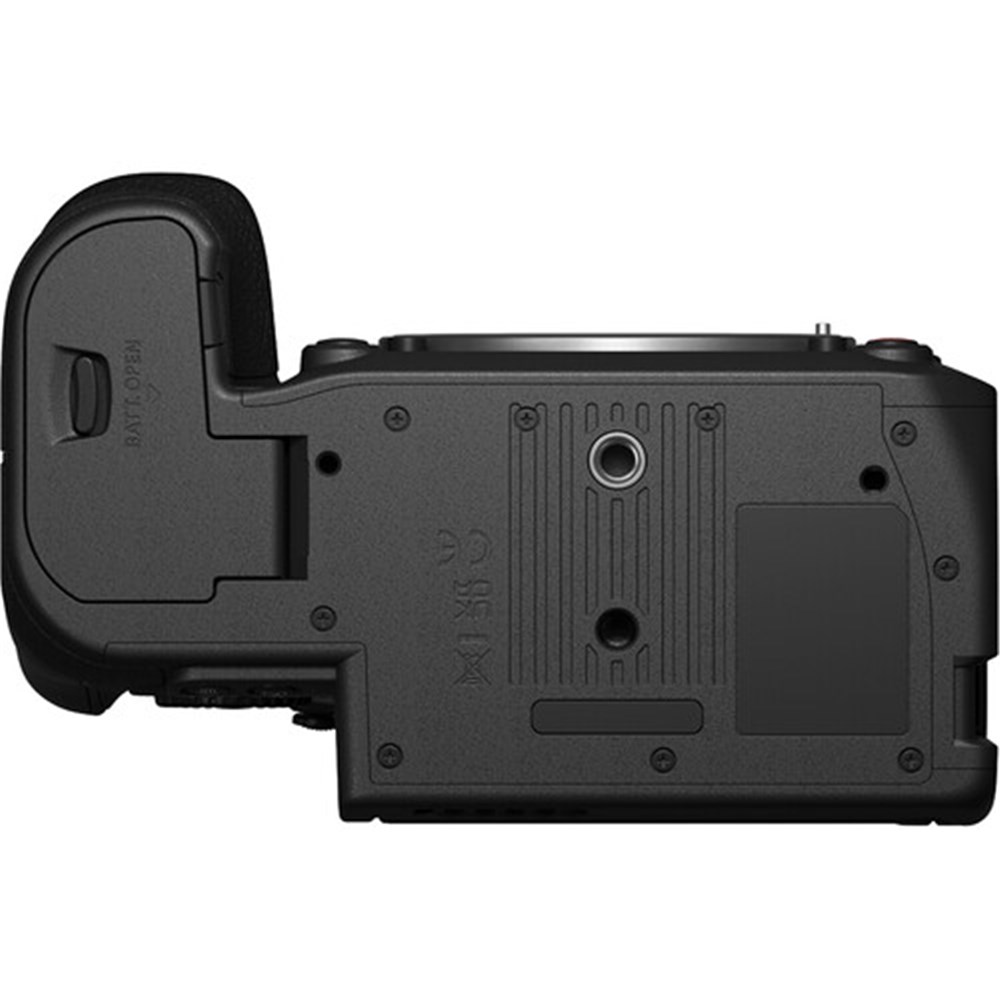

Accessory Mounting Thread	1x 1/4"-20
Dimensions (W x H x D)	5.6 x 3.5 x 3.7" / 143 x 88 x 95 mm 8.7 x 9.4 x 7.3" / 222 x 239 x 186 mm (With Handle, Mic Holder)
Weight	23.5 oz / 665 g (Body Only) 2.4 lb / 1110 g (With Battery, Handle, Recording Media)

Canon C50 Body Only

120915
