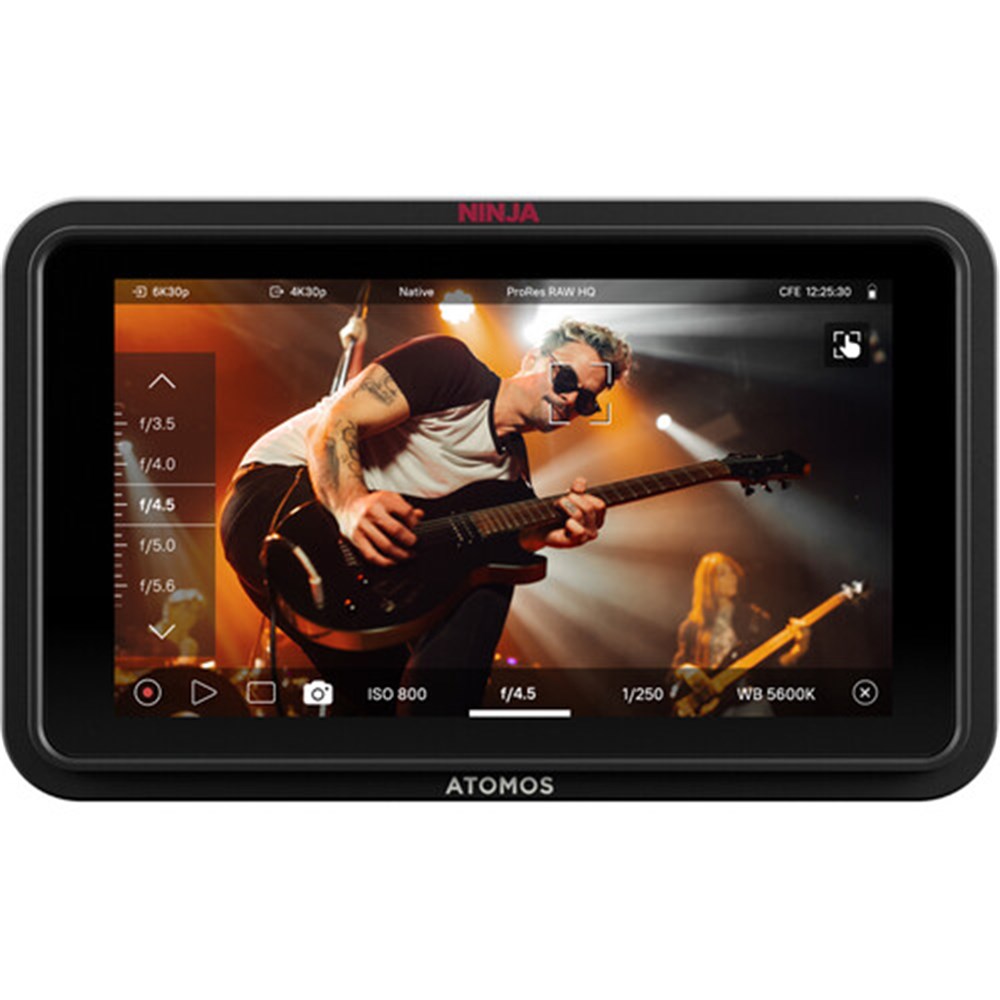

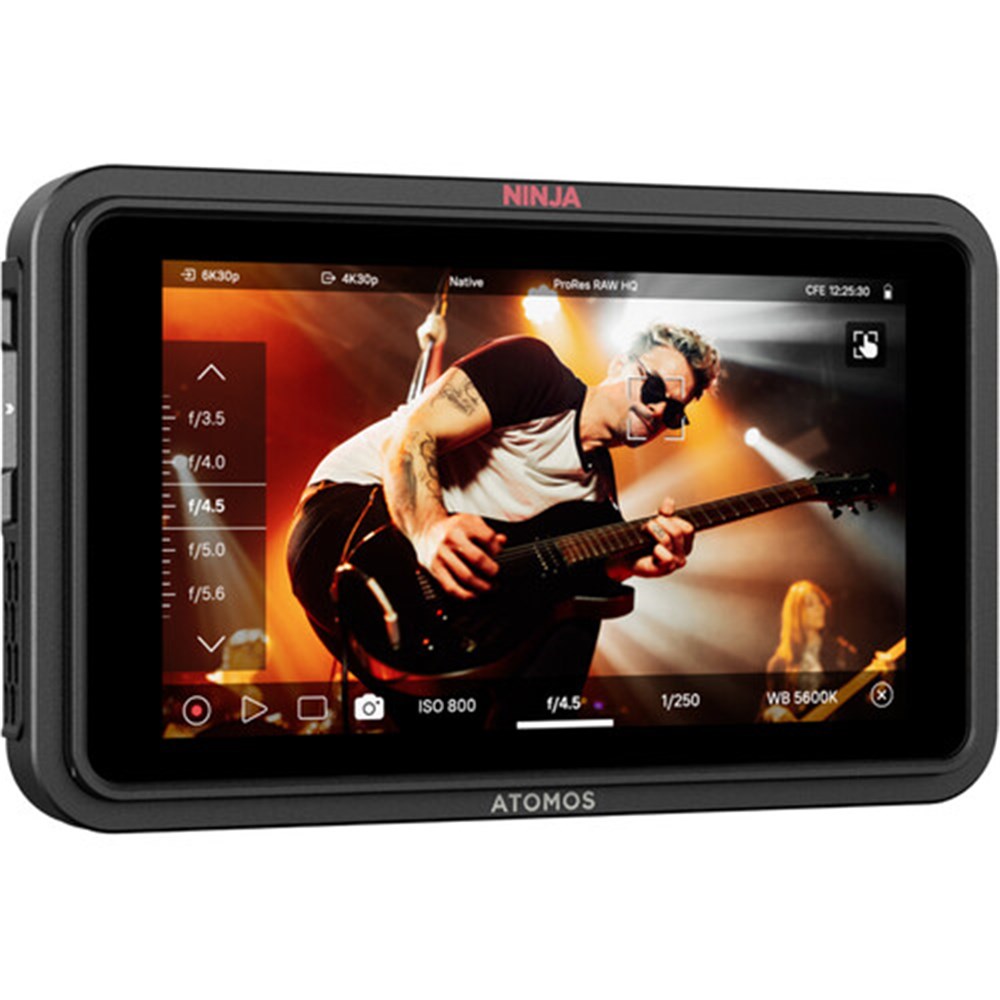

Atomos Ninja RAW 5" Monitor / Recorder

Key Features

1920 x 1080 IPS Touchscreen, 4K60 I/O
All ProRes RAW Codecs Preloaded
Locking HDMI 2.0 Input/Output
Records to CFexpress Type B Slot, USB-C
Optional USB-C Network Adapter
1500 cd/m² Brightness
Capture up to 6K30 ProRes RAW Video
Updated AtomOS Linux Operating System
L-Series Battery Slot, Tally Light
**Batteries not included
**Recording media not included

Designed as a wired companion to the Ninja TX and Ninja TX GO, the Atomos Ninja RAW 5.2" HDMI Monitor/Recorder from Atomos is a compact on-camera monitor and recorder ideal for use on professional sets and for content creators. Features include HDMI 2.0 input/output, camera control, a bright 1500 cd/m² touchscreen display, ProRes raw recording, recording to CFexpress Type B or USB-C, a tally light, NDI/HX3 and camera-to-cloud via an optional USB-C adapter, and all codecs such as ProRes RAW/DNx/H.265 are built in.

Display Size	5.2" / 13.2 cm
Native Resolution	1920 x 1080
Touchscreen	Yes
HDR Support	Yes: Hybrid Log Gamma
Video I/O	HDMI
Media/Memory Card Slot	Single Slot: CFexpress Type B [Record/LUT/Firmware]
Video Format	HDMI (8/10/16-Bit 4:2:2) 6K Raw: 60/30 3.5K Raw: 60 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Battery	1x L-Series Mount on Fixed Plate
Power Consumption	30 W

Display

Panel Type	IPS-Type LCD
Display Size	5.2" / 13.2 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	1500 nits / cd/m²
Color Support	1.07 Billion Colors (8-Bit+FRC)
HDR Support	Yes: Hybrid Log Gamma
Color Gamut	100% Rec. 709
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Image Flip, OSD Flip, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Inputs/Outputs

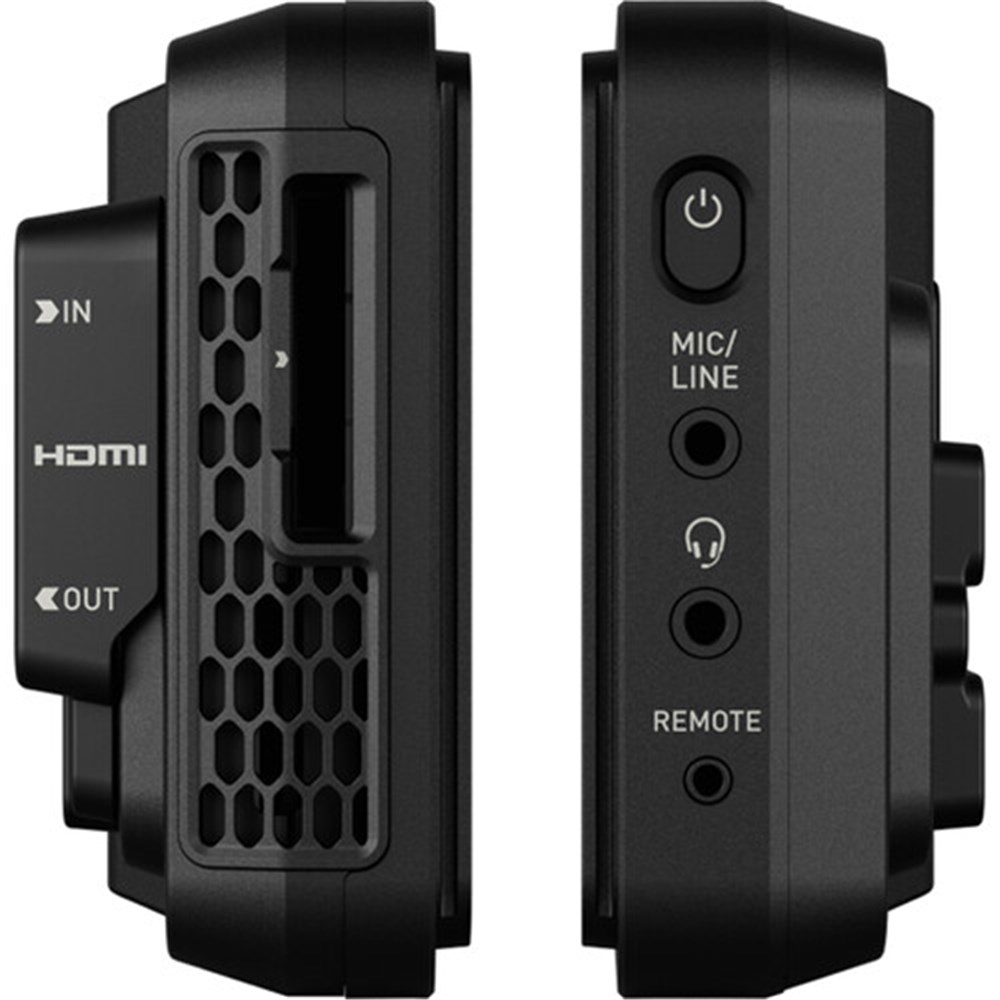

Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output
Embedded Audio	HDMI/IP/NDI/USB
Audio I/O	1x 1/8" / 3.5 mm Input 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No

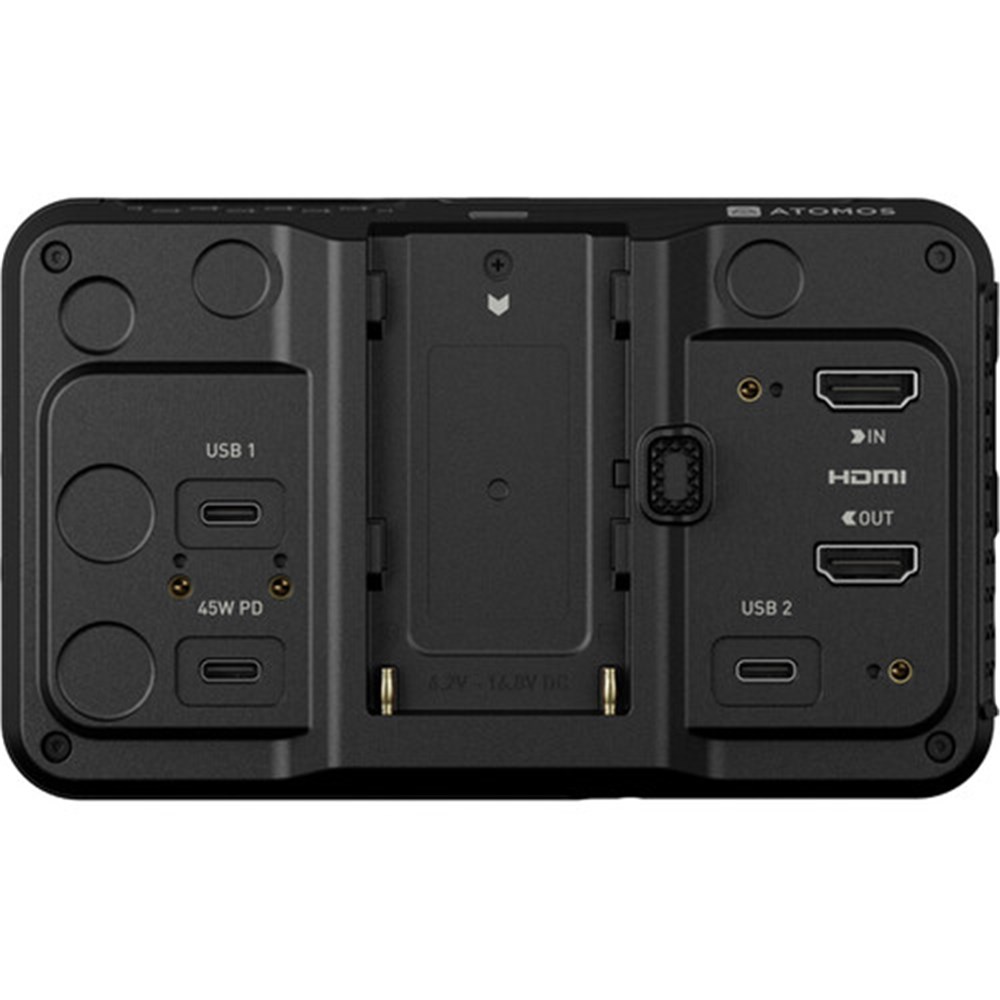

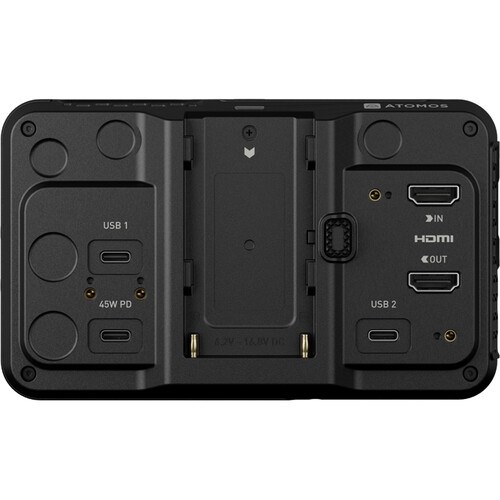

Power I/O	1x USB-C (16.8 VDC) Input
Other I/O	2x USB-C Input/Output [Shared with Firmware/LUT Upload/Record/Power] 1x 2.5 mm (LANC) Input
Media/Memory Card Slot	Single Slot: CFexpress Type B [Record/LUT/Firmware]

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format	HDMI (8/10/16-Bit 4:2:2) 6K Raw: 60/30 3.5K Raw: 60 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Timecode Support	Yes

Recording

Pulldown Conversion	2:2, 3:2
Camera Trigger	HDMI
Pre-Roll Record	Full HD: 8 Seconds 4K: 2 Seconds
Encoding Formats	x DNxHD 36, 145, 220x DNxHR HQ, HQX, LB, SQ ProRes 422, 422 HQ, LT, Raw, Raw HQ H.265 420, 422, HQ, LQ, MQ
Maximum Audio Tracks	8
Metadata Tagging	Yes
Reference Input	No

Power

Input Power	6.2 to 16.8 VDC
Battery	1x L-Series Mount on Fixed Plate
Power Consumption	30 W

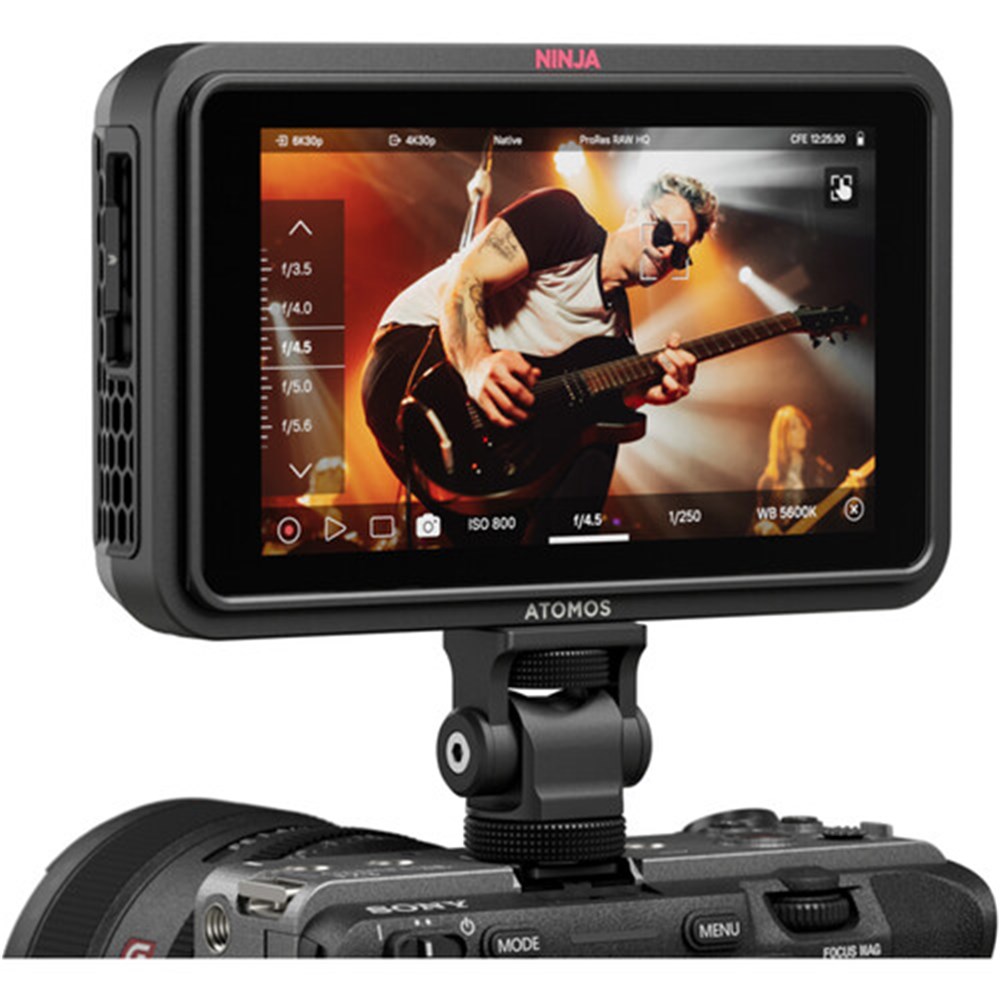

Mounting

Tripod/Accessory Mounting

1x ARRI Anti-Twist 1/4"-20
2x 3/8"-16 Female

General

Environmental Resistance	No
Operating Conditions	Up to 104°F / 40.0°C
Material of Construction	Aluminum, Plastic
Dimensions	5.9 x 3.6 x 1.4" / 151 x 92 x 36 mm
Weight	14.1 oz / 400.00 g

Packaging Info

Package Weight	1.49 lb
Box Dimensions (LxWxH)	8 x 5.9 x 3"
