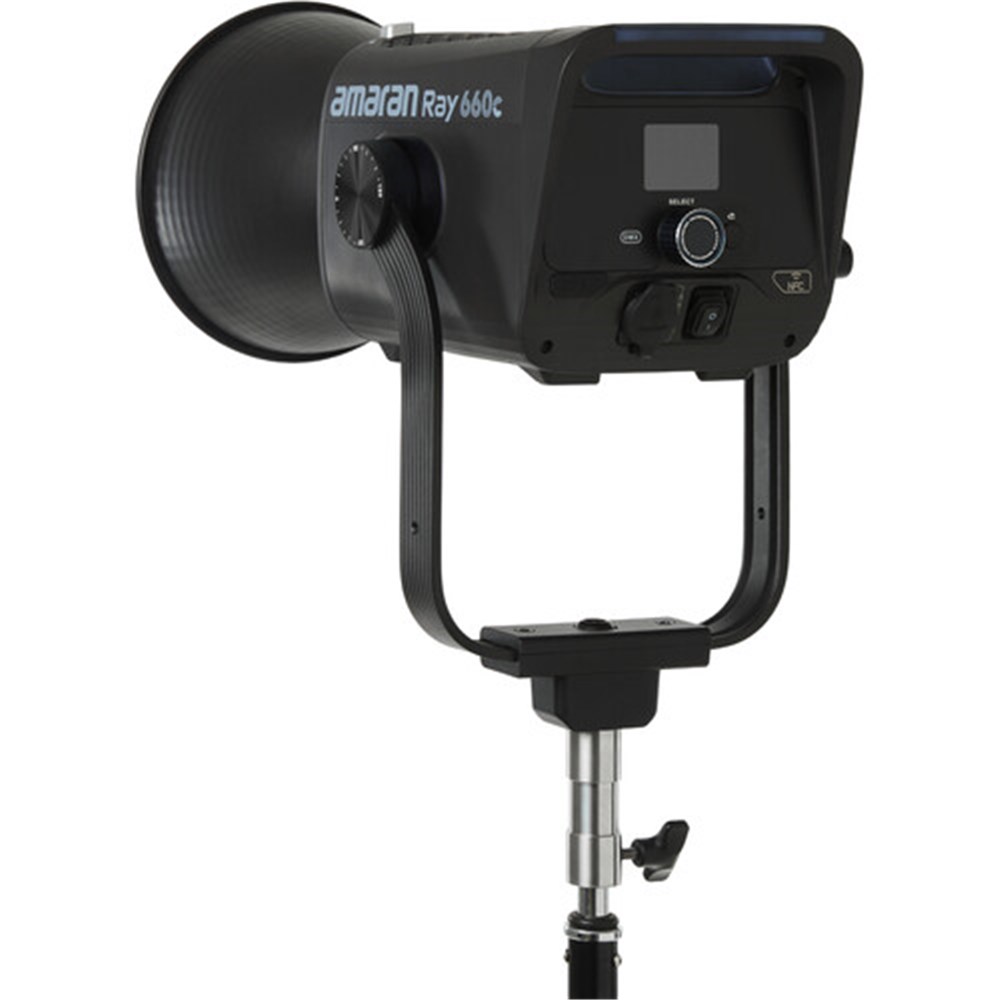

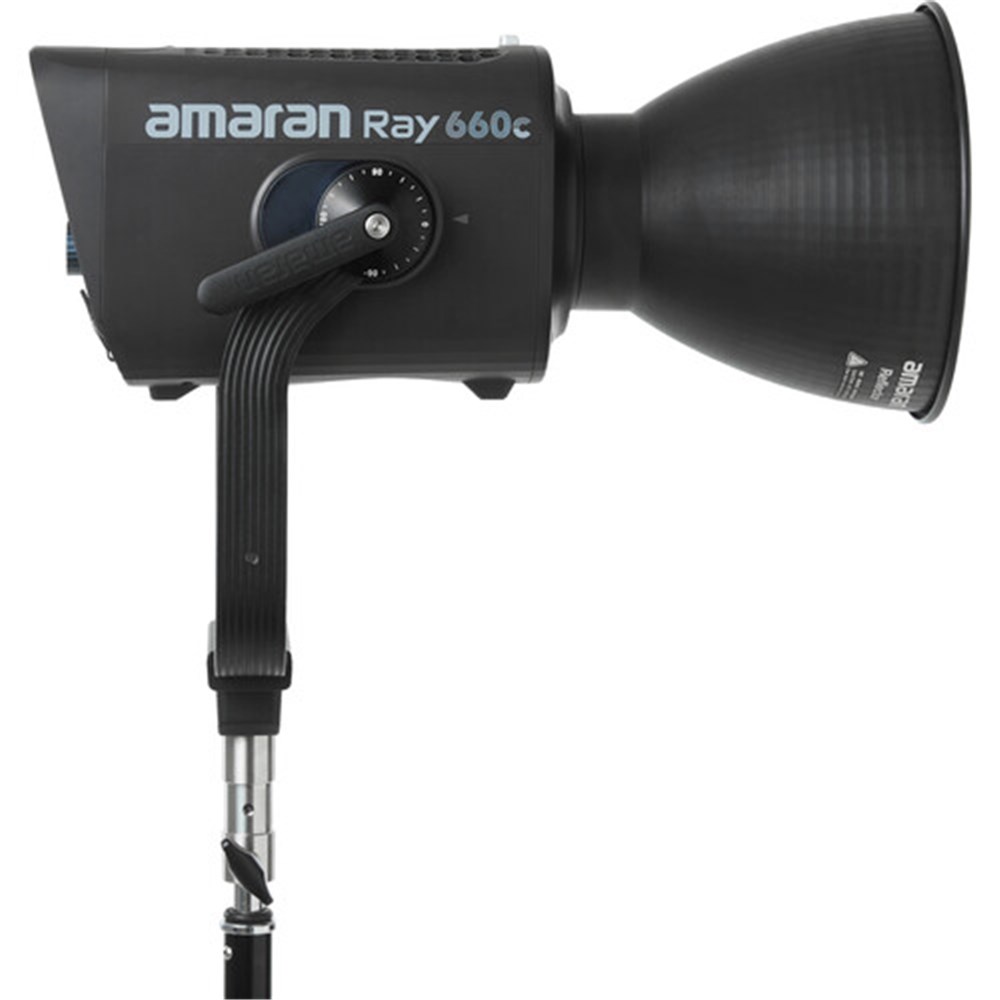

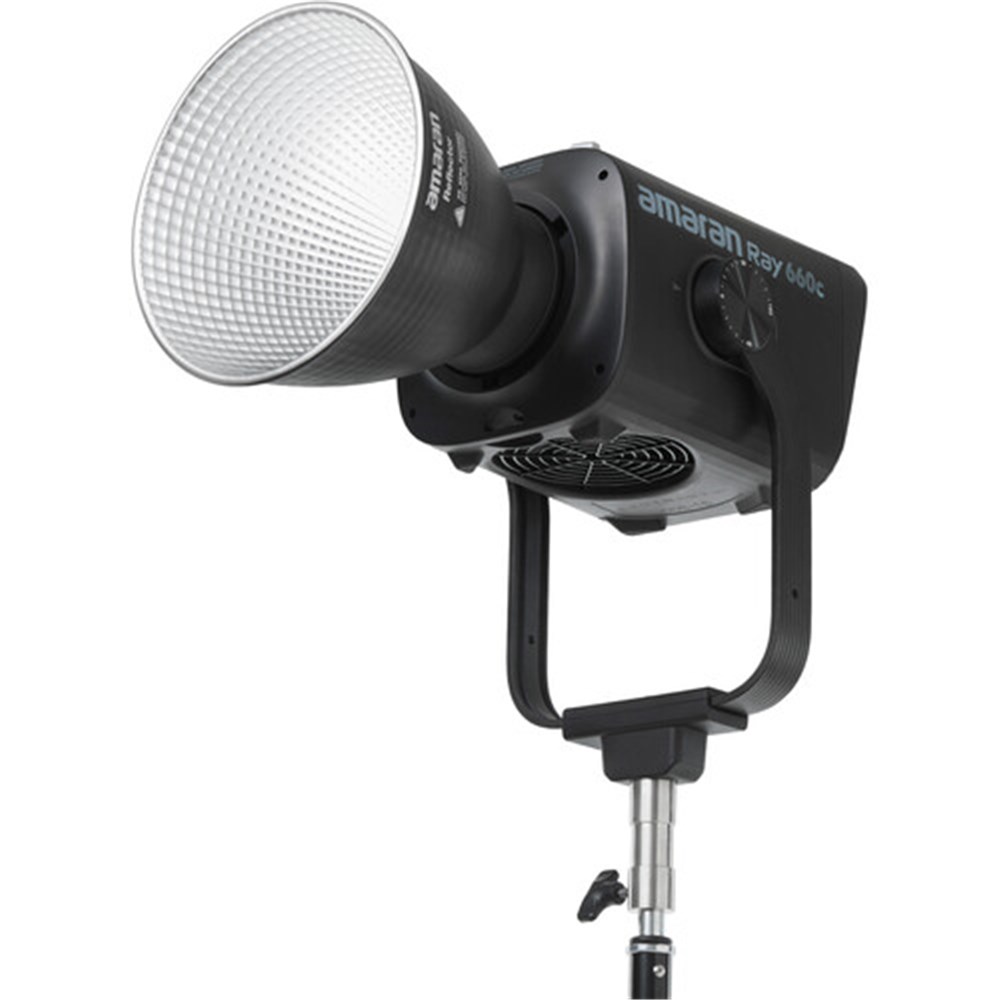

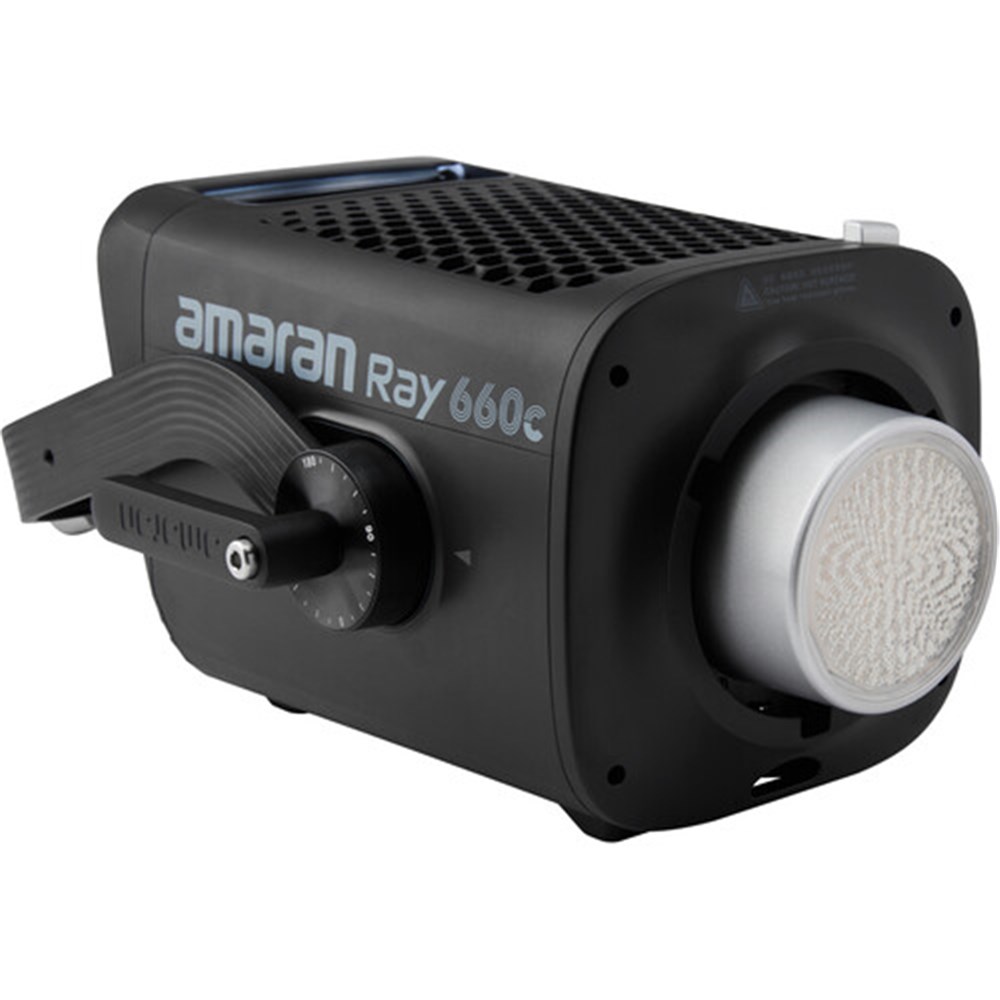

Amaran Ray 660C RGB LED Bowens Mount Light Kit

Key Features

For Film, Broadcast & Video Production
Output: 38,500 Lux at 3.3' (Bare)
1800-20,000K CCT+; RGB Color Control
AC Power & Optional USB-C DMX Control
Onboard & App Control; FlowTurn & NFC
CRI & TLCI 95 | SSI 80/87 | TM-30 94/100
OmniColor Engine, G/M Shift & Effects
Fan Cooled, Bowens Mount & IP54 Design
Yoke with Dual Junior Baby Pin Receiver

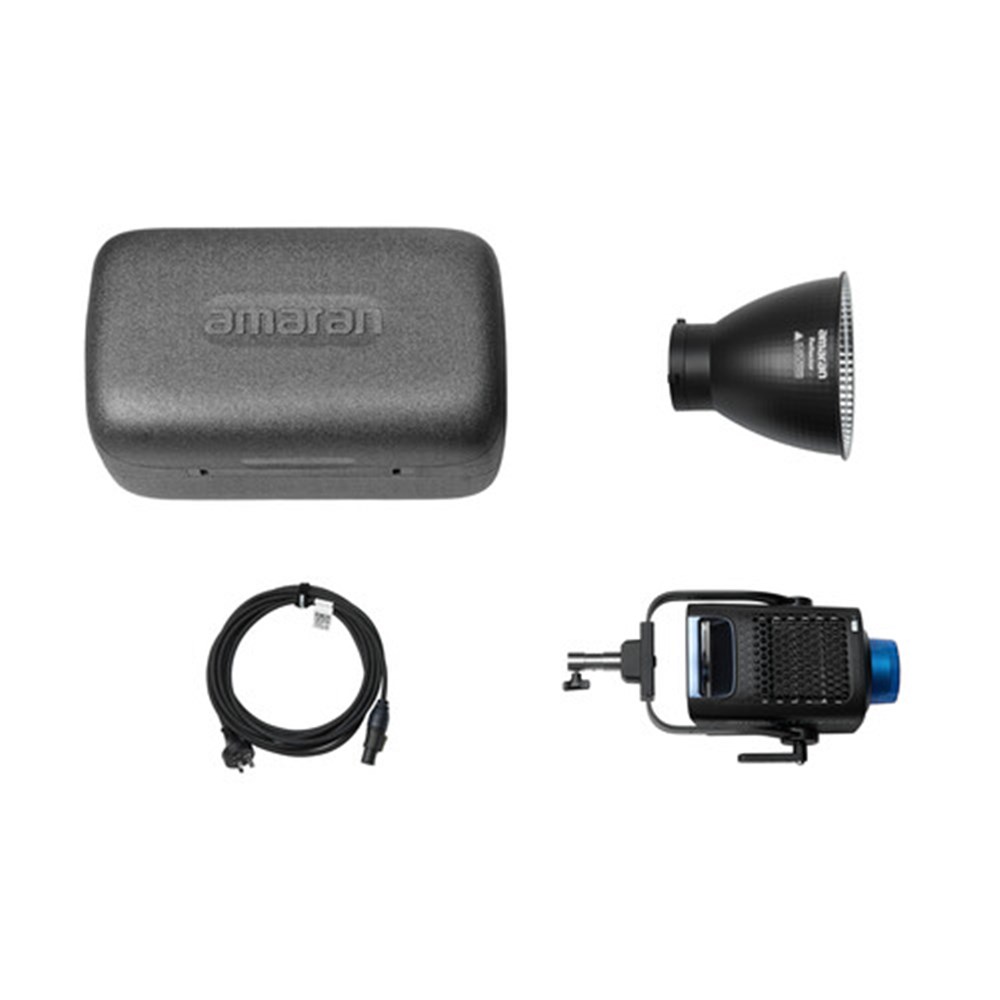

Includes Reflector, AC Power Cable & Bag

The full-color Ray 660c RGB LED Monolight is amaran's highest output COB light with 660W, OmniColor technology, and modern features. Whether you're lighting up subjects or filling expansive studios, the Ray 660c is a well suited streamlined, monolight-style LED. Find intuitive onboard and app management of settings via FlowTurn knob and NFC configuration, or opt for DMX control via USB-C by adding an optional adapter. Choose from an extended color temperature range of 1800-20,000K in CCT+ with high color accuracy, and access 360° full color control with HSI and RGB modes. The Ray 660c is IP54 dust and watersplash resistant, so it is built to withstand demanding environments. When it comes to flexibility, amaran has left no stone unturned with the inclusion of a convenient yoke and Bowens mount compatibility. The brand includes a reflector, a single power cable, and a case to give you a storage solution and faster setup between shoots.

Item Type	1x COB LED Monolight

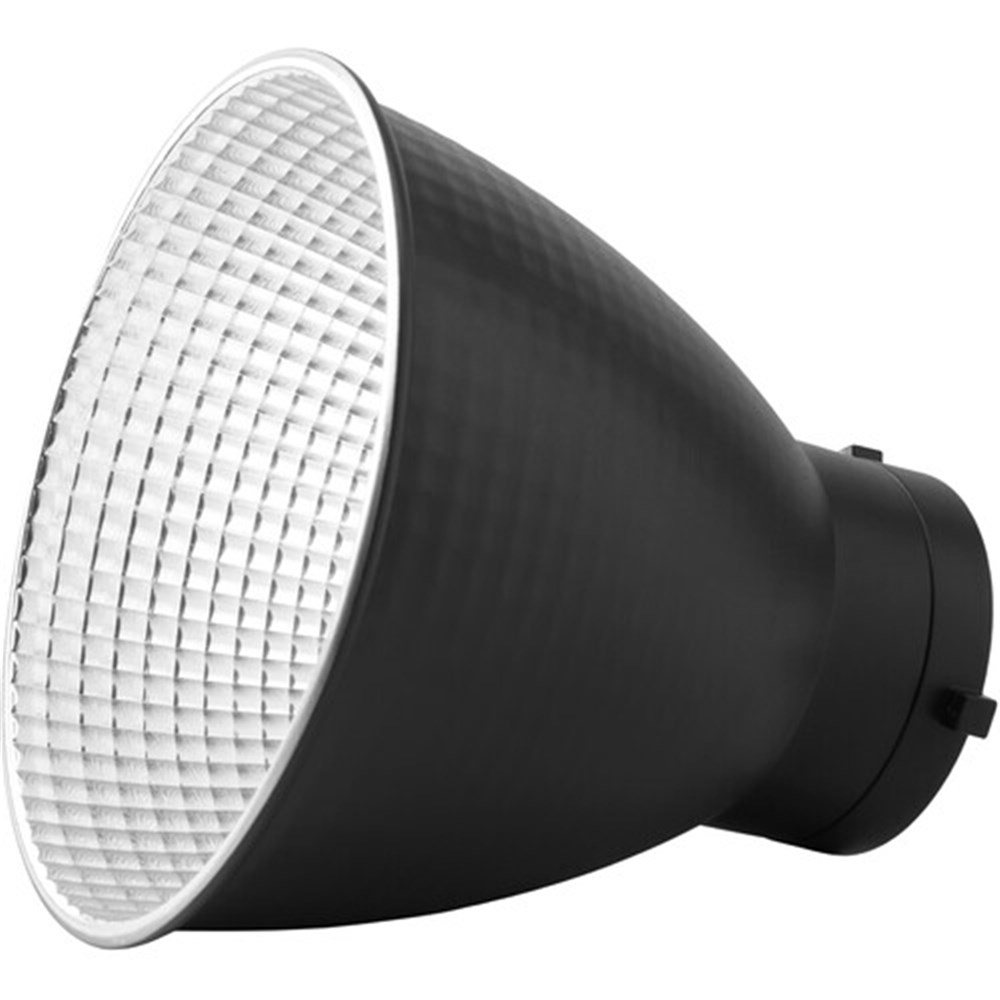

Included Light Modifier	1x Reflector
Included Storage Case	Yes
Photometrics at 3.3' / 1 m	70° at 3200K: 3372 fc / 36,300 Lux (Unmodified) 45° at 3200K: 8073 fc / 86,900 Lux (with Reflector) 70° at 5600K: 3520 fc / 37,900 Lux (Unmodified) 45° at 5600K: 8398 fc / 90,400 Lux (with Reflector)
Color Temperature	1800 to 20,000K 10,000 to 2300K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95 TLCI 95 TM-30 Rf 94 TM-30 Rg 100 SSI 80 at 5600K SSI 87 at 3200K
Dimming	App-Controlled / Built-In Dimmer / DMX • 0 to 100%
Front Accessory Mount	Bowens S
Wireless Remote Control Type	Bluetooth
Power Source	AC Power (Cable Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	750 W (Maximum)
Fixture Mounting	1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

Light Fixture

Item Type	1x COB LED Monolight
Included Light Modifier	1x Reflector
Included Storage Case	Yes
Lumens	45,904
Photometrics	70° at 3200K: 3372 fc / 36,300 Lux at 3.3' / 1 m (Unmodified) 392 fc / 4220 Lux at 9.8' / 3 m (Unmodified) 45° at 3200K: 8073 fc / 86,900 Lux at 3.3' / 1 m (with Reflector) 805 fc / 8670 Lux at 9.8' / 3 m (with Reflector) 70° at 5600K: 3520 fc / 37,900 Lux at 3.3' / 1 m (Unmodified) 410 fc / 4420 Lux at 9.8' / 3 m (Unmodified) 45° at 5600K: 8398 fc / 90,400 Lux at 3.3' / 1 m (with Reflector) 837 fc / 9010 Lux at 9.8' / 3 m (with Reflector)
Color Temperature	1800 to 20,000K 10,000 to 2300K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95 TLCI 95 TM-30 Rf 94 TM-30 Rg 100 SSI 80 at 5600K SSI 87 at 3200K
Dimming	App-Controlled / Built-In Dimmer / DMX • 0 to 100%
Cooling System	Fan
Beam Angle	70° Unmodified 45° with Included Reflector
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Bowens S

Connectivity

Wireless Remote Control Type	Bluetooth
Mobile App Compatible	Yes: Android & iOS App Name: amaran Functionality: Firmware Update, Remote Control
Wireless Range	262.5' / 80 m (Bluetooth)

Power & I/O

Power Source	AC Power (Cable Included)
Inputs/Outputs	1x Unspecified AC Power Input (100 to 240 VAC, 50 / 60 Hz) 1x USB-C DMX/Firmware Input *Adapter Required (Not Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	1x USA Type-A/B Plug to Unspecified Cable (16.4' / 5 m)
Inline Switch	No
Power Pass-Thru	No
Power Consumption	750 W (Maximum)

Mounting

Yoke Type	Manually-Operated Yoke
Fixture Mounting	1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

General

Display	LCD
Environmental Resistance	Dust/Water-Resistant (IP54)
Operating Conditions	14 to 104°F / -10 to 40°C
Storage Conditions	-4 to 176°F / -20 to 80°C
Dimensions	11.79 x 7.31 x 7.05" / 29.95 x 18.57 x 17.91 cm (Fixture)
Weight	12.57 lb / 5.7 kg (Fixture)

Packaging Info

Package Weight	17.4 lb
Box Dimensions (LxWxH)	22.8 x 13.1 x 11.9"
