Amaran Ray 60c RGB LED Bowen Mount Light Kit

121352

inc GST
Increase value Decrease value
Found a better price? We'll match it!
  • Product Description
  • Specifications
  • What's in the Box?

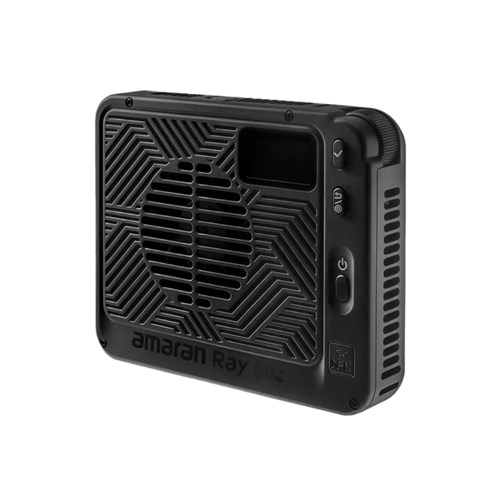

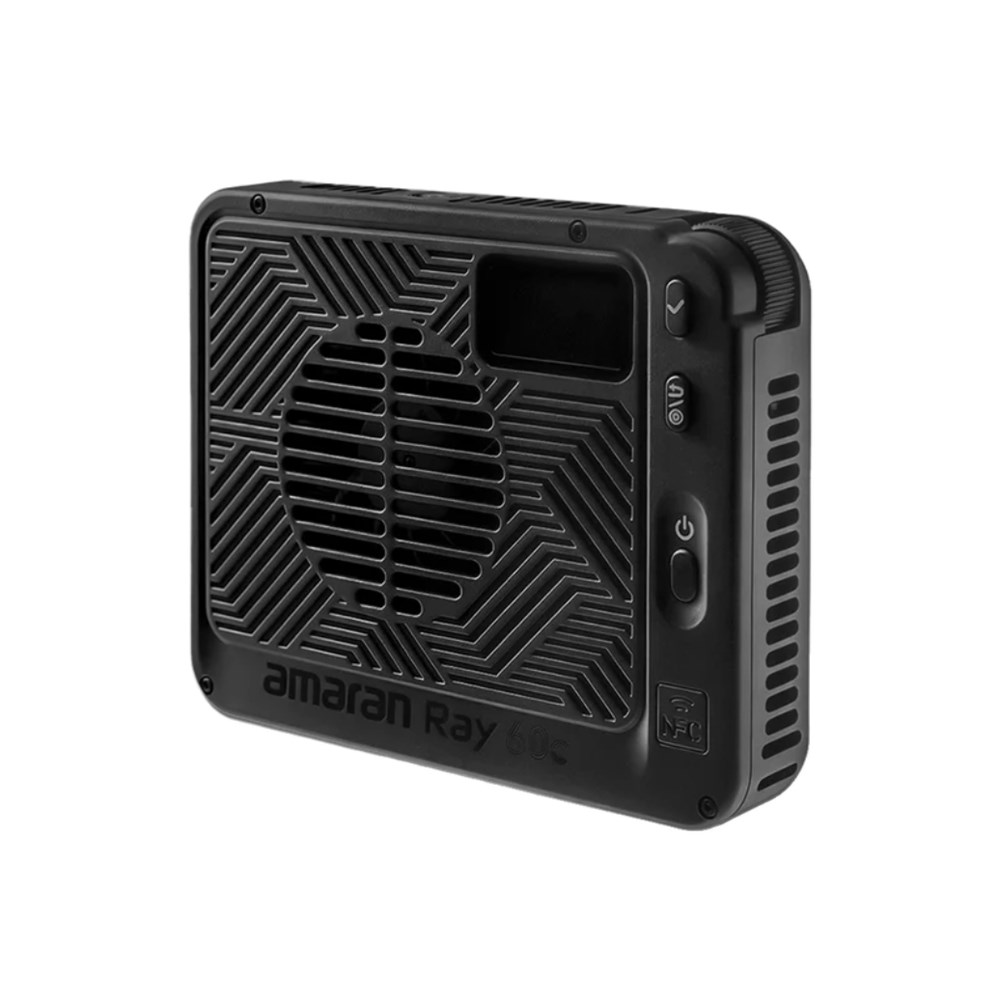

Amaran Ray 60C RGB LED Light


Key Features
  • For Content Creators & Vloggers
  • Output: 3910 Lux at 3.3' (Bare)
  • 1800-20,000K CCT+ and RGB Colour Control
  • AC or Battery Power and USB-C PD Power
  • Onboard & App Control - FlowTurn & NFC
  • CRI & TLCI 95 | SSI 80/87 | TM-30 94/100
  • OmniColor Engine -G/M Shift & Effects
  • Fan Cooled, Bowens Mount & IP54 Design
  • 1/4"-20 Mounting and Ace E-Lock Compatible
  • Includes Dome, AC Power Cable & Bag

Ultra-slim at 43mm and lightweight at 450g, the Ray 60c RGB LED Light from amaran is a 60W full color, IP54-rated lighting solution intentionally made for creators on the move. Powered by the OmniColor light engine, the Ray 60c is brighter than the previous amaran COB 60x S, bringing power flexibility and easy local/app control via FlowTurn knob and NFC configuration. Choose from an extended color temperature range of 1800-20,000K in CCT+ with high color accuracy, and access 360° full color control with HSI and RGB modes. The Ray 60c is compact, yet still retains a full-size Bowens mount, while offering Ace E-Lock compatibility and USB-C PD support. The light is easy to pack, mount, and carry with you. Essential accessories are included so the Ray 60c comes travel-ready for everything from outdoor spaces to studio setups.

Powerful Lighting, Ultra-Compact Body
The bare light delivers up to 3910 lux at 1m and 4300K, but pair it with the separately available Mini Reflector or Mini Fresnel if you need some extra punch. Experience 4021 lumens, green-magenta shift, and find true-to-life colors with high CRI 95, TLCI 95, SSI 80/87, TM-30 94/100 ratings. These ratings reflect cleaner whites, true skin tones, and highly accurate colors that stay consistent on camera and to the eye.

360º Full Color
amaran's OmniColor engine offers an enhanced color spectrum with expanded red and blue ranges for a fuller, more balanced spectrum of light. The Ray 60c has a 2300-10,000K adjustable color temperature that can be extended to a wider 1800-20,000K range in CCT+ mode. Another benefit is 0-100% stepless brightness control. The light supports 360° of color control for creating different looks, while the FX mode lets you select from 12 different effects: fireworks, faulty bulb, lightning, TV, pulsing, strobe, explosion, fire, paparazzi, welding, cop car, and party.

Adaptive Control
Other highlights are a Quick Operation mode for instant adjustments of settings, custom shortcuts for long press and double click options, as well as High-Speed Photography and Studio modes. Control is simplified with an intuitive menu and a TFT screen for quick onboard operation. A FlowTurn knob gives you tactile feedback when adjusting the lighting settings, but the Ray 60c also provides one-tap pairing to the amaran app thanks to its built-in NFC configuration. Bluetooth app control has a generous 80m wireless operating range.

Multiple Power Options
Supporting the amaran Ace E-Lock for optional portable batteries, USB-C PD 3.0, and DC 12V-24V power input methods, the Ray 60c expands and simplifies your power options. With the included power adapter and cable, run the light on AC power or use optional power banks and chargers via USB-C PD 3.0. Achieve cable-free operation for 46 minutes at 100% output using the optional amaran Peak 75 or up to 65 minutes with the optional amaran Peak.

IP54 Design & Low Fan Noise
IP54 rating ensures dust and splash resistance, a great asset if you're working outside and dealing with wind, light rain, sand, or humidity. Active fan cooling is quiet enough for video work at 28 dBA (maximum output) with the choice of silent or smart fan modes. This is a practical COB LED lighting solution for creators in need of a portable and quiet light without giving up image quality. It sets up fast and is suitable for tight spaces, on the go, and between locations.

Wide Compatibility

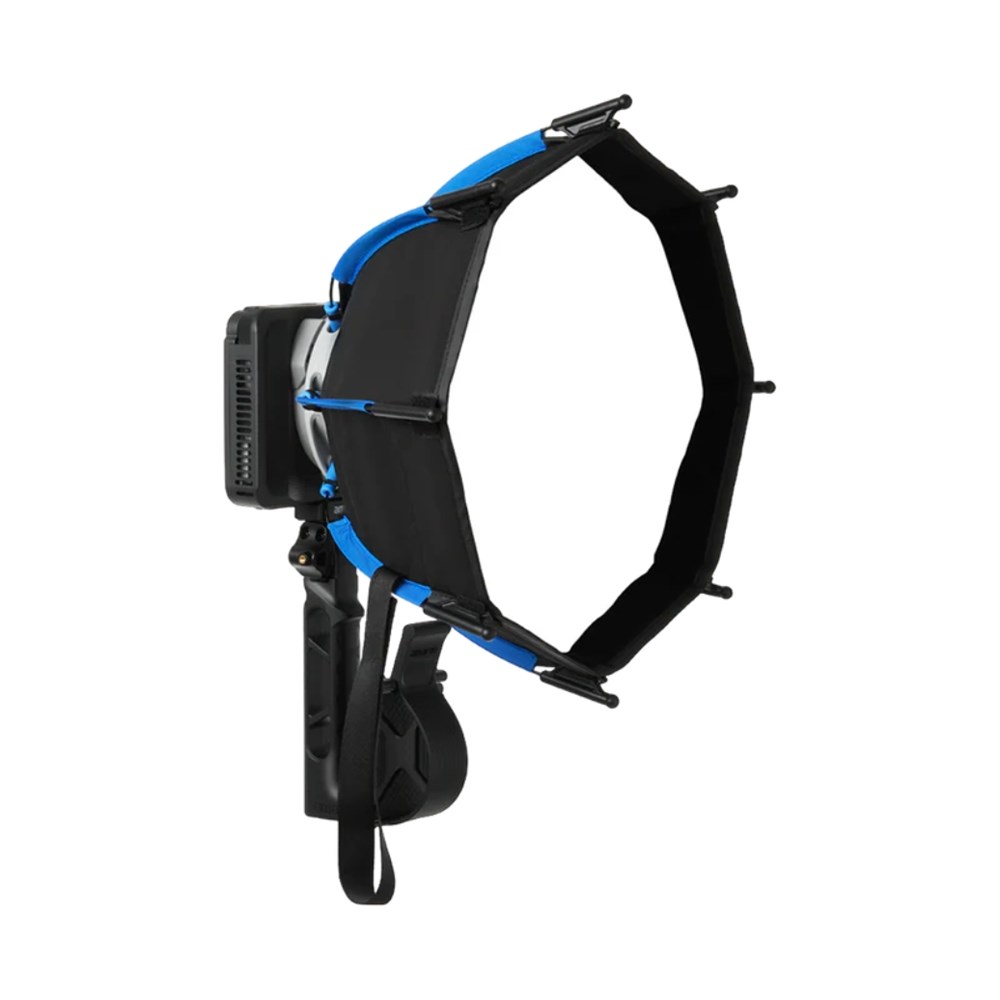

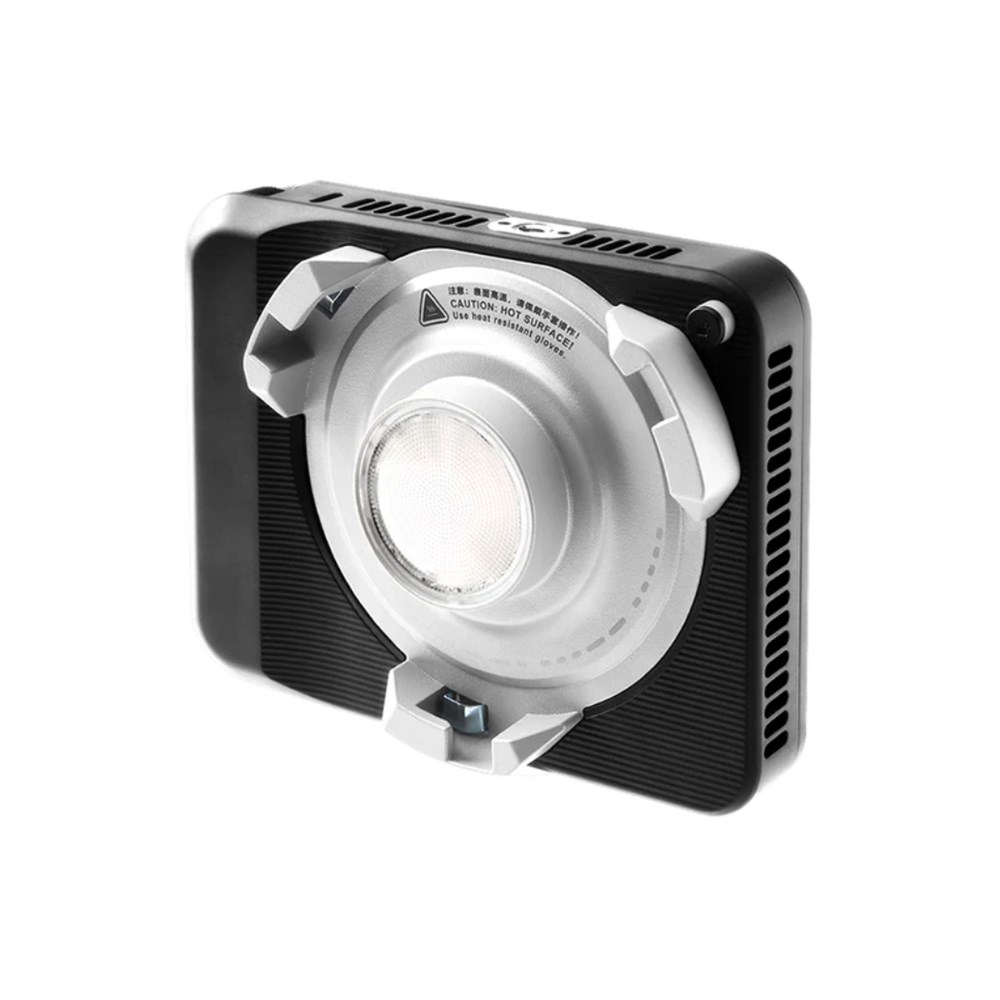

The fixture's metal, full-size Bowens mount is fully compatible with the separately available Mini Reflector, Mini Fresnel, and other Bowens modifiers. In addition, a 1/4"-20 screw mount allows attachment to optional mounting gear. amaran adds a 30cm diameter one-snap setup Octa Dome 30 softbox, along with a convenient Ace Lock to Baby Pin Adapter Grip for quick mounting to optional light stands or handheld use with optional portable batteries. The accessory features a durable silicone strap for securing your power source.

Specifications

CCT (Standard)
2,300K - 10,000K

CRI 95+

SSI (P3200)
87

TM-30 RG (Average)
100

Max Power Output
60W

Color Chipset
OmniColor

Beam Angle
70º

Power Supply Methods
USB-C PD 3.0, DC, amaran Ace E-Lock

Operating Voltage (Power Supply)
AC 100V - 240V / 2.5A / 50 - 60Hz
Operating Temperature
-10°C - 40°C / 14°F - 104°F

Control Methods
On-board, amaran App

Wireless Operating Range
≤80m / ≤262.5ft (Bluetooth)

Cooling Method
Active Cooling

CCT + (Expanded)
1,800K – 20,000K

TLCI
95+

SSI (D56)
80

TM-30 RF (Average)
94
Max Power Consumption
75W (USB-C)

Lumens
4,021 lumens

Weather Resistance Rating
IP54

Operating Voltage (Fixture)
DC 12V – 24V

Max Noise Level
28dBA (30ºC / 86ºF)

Storage Temperature
-20ºC - 80ºC / -4ºF - 176ºF

Firmware Upgradeable

amaran App

Screen Type
TFT

Max Light Output
3,910 lux @ 1m (No Accessory)
Dimensions
Fixture
14.5 x 11.5 x 4.4cm / 5.7 x 4.5 x 1.7in

Octa Dome 30 (Collapsed)
34.76 x 18.0 x 6.5cm / 13.6 x 7.1 x 2.6in

Adapter Cable
0.5m / 1.64ft
Carrying Bag
40.8 x 26.4 x 11.0cm / 10.1 x 10.4 x 4.3in

Octa Dome 30 (Built)
20.0 x 30.0 x 30.0cm / 7.9 x 11.8 x 11.8in
 AC Power Cable
4m / 13.12ft

Ace Lock Grip
23.0 x 11.0 x 10.8cm / 9.1 x 4.3 x 4.3in

Weight
Fixture
528.5g / 1.16lbs

Octa Dome
30240g / 0.53lbs

Ace Lock Grip
420g / 0.93lbs

Carrying Bag
480g / 1.04lbs

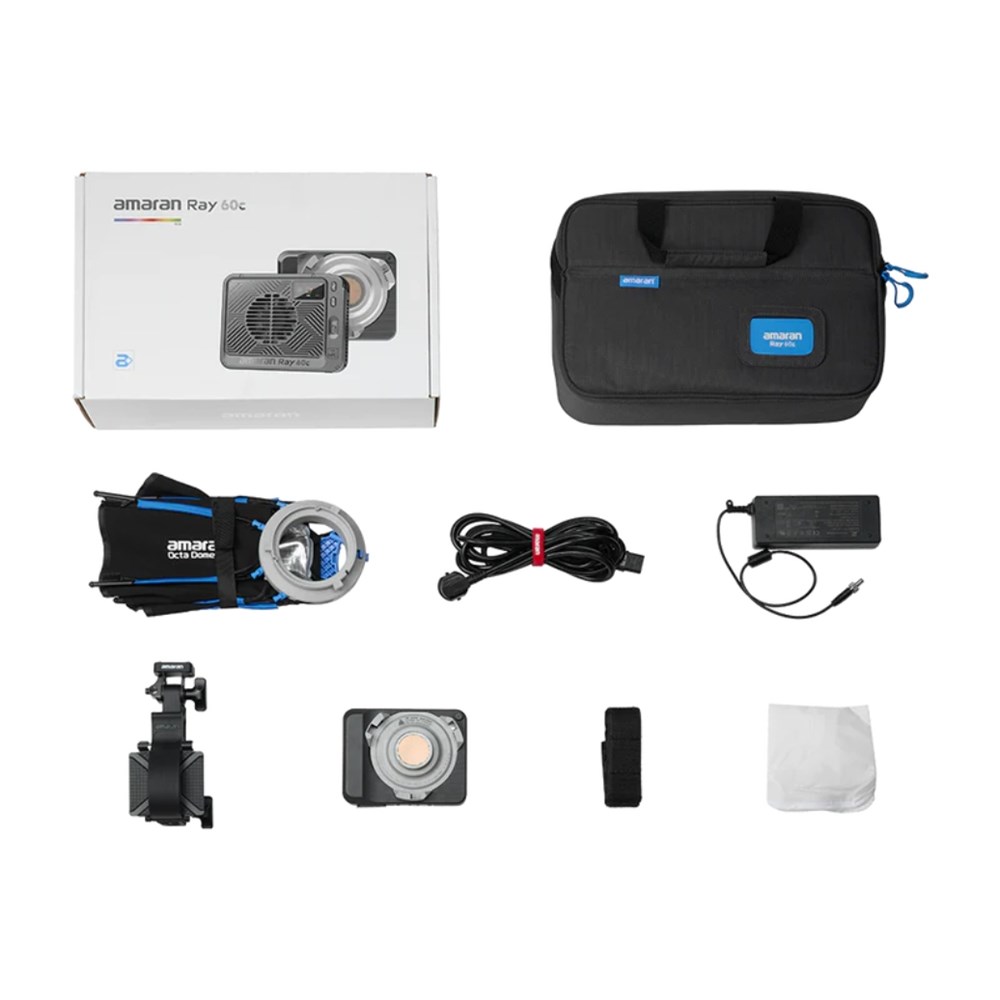

  • 1x amaran Ray 60c
  • 1x amaran Ace Lock to Baby Pin Adapter Grip
  • 1x amaran Octa Dome 30
  • 1x amaran Octa Dome 30 Diffusion Cloth
  • 1x amaran Octa Dome 30 Light Control Grid
  • 1x amaran AC to DC 90W Power Adapter (0.5m)
  • 1x amaran AC Power Cable (4m)
  • 1x amaran Ray Carrying Bag
