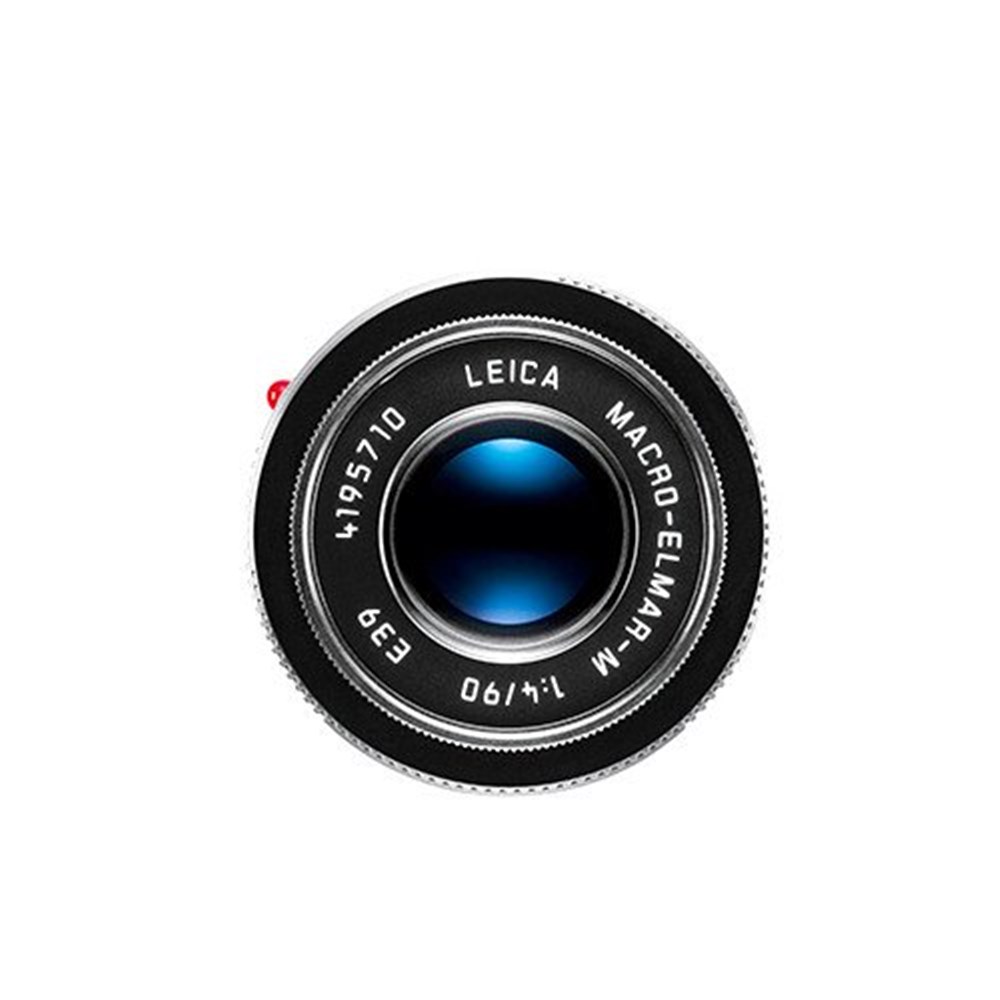

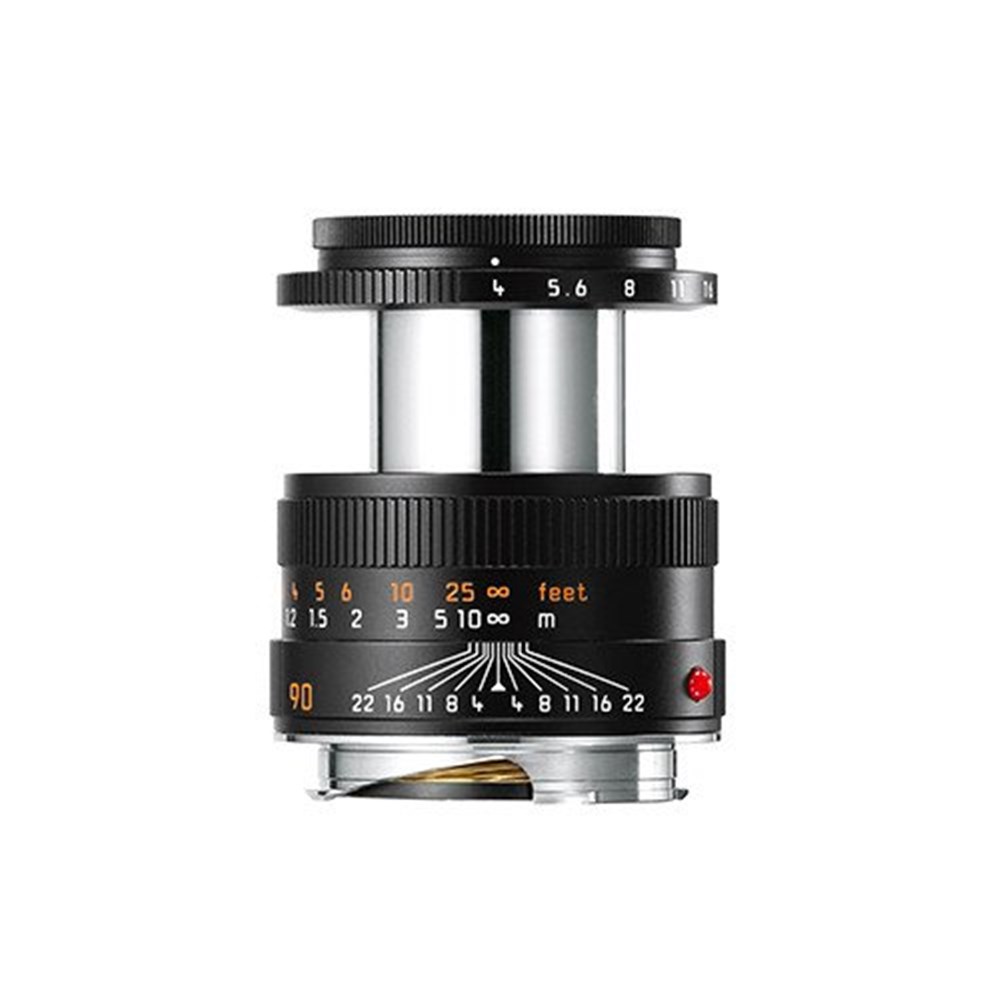

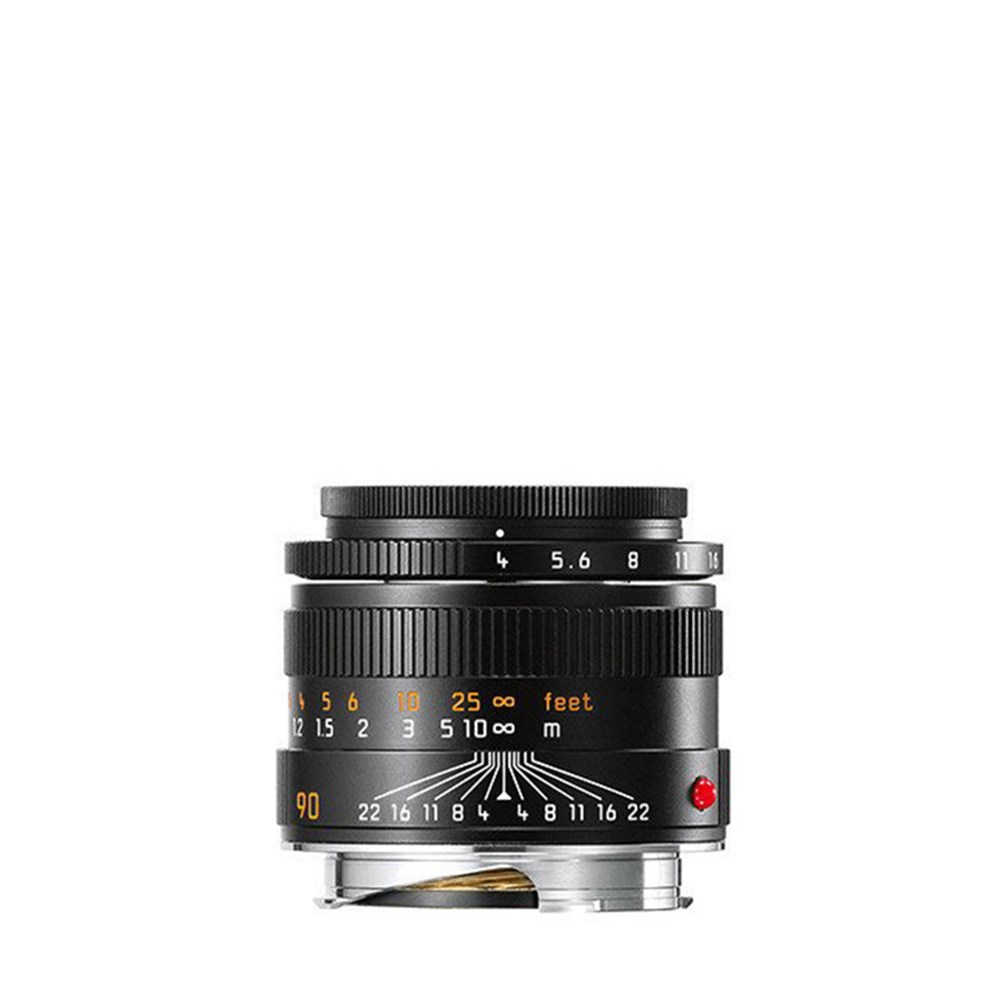

Leica Elmarit 90mm F4 Macro M Mount Lens


inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
  • Product Description
  • Specifications
  • What's in the Box?
  • Warranty

Leica Elmarit 90mm F4 Macro M Mount Lens

Key Features
  • Leica M-Mount Lens
  • Aperture Range: f/4 to f/22
  • Multi-Layer Anti-Reflective Coating
  • Retractable Lens Design
  • 1:2 Magnification with Macro-Adapter-M
  • Manual Focus Design
  • Minimum Focus Distance: 2.6'
  • Filter Thread: 39mm
  • Four elements within four groups optical design delivers edge-to-edge sharpness and illumination throughout the aperture range.
  • Retractable lens design (1.6"-long when collapsed) helps to maintain a compact form factor during traveling.
  • A multi-layered anti-reflective coating has been applied to individual lens elements to minimize lens flare and ghosting for color-neutral, contrast-rich imagery.
  • Manual focus design provides a minimum focusing distance of 2.6' with a maximum magnification ratio of 1:6.7.
  • When paired with the optional Macro-Adapter-M, and used on a camera featuring live view, a minimum focusing distance of 16.1" is possible with a maximum reproduction ratio of 1:2. Additionally, infinity focusing is still possible when used in combination with the Macro-Adapter-M.

A unique and compact lens within the Leica M-mount lineup, the Macro-Elmar-M 90mm f/4 is a short telephoto prime characterized by its retractable design and compatibility with the Macro-Adapter-M for close-up shooting. It features a simple but effective four elements in four groups optical design, which maintains sharpness and even illumination throughout the aperture and focusing ranges. A multi-layer anti-reflective coating has also been applied to individual elements to control lens flare and ghosting for improved contrast and color fidelity. Its manual focus design permits working with subjects as close as 2.6' away with a reproduction ratio of 1:6.7.

Focal Length90mm
Aperturef/4 to f/22
Camera Mount TypeLeica M quick-change bayonet
Angle of View27°
Smallest Object Field6.7 x 9.6' / 169 x 244 mm
Entrance Pupil0.9' / 22 mm (position from bayonet flange)
Minimum Focus Distance2.6' / 80 cm
Reproduction Ratio1:6.7
Optical Design4 elements in 4 groups
Filter Thread39 mm
Dimensions (Ø x L)2 x 2.3' / 52 x 59 mm (lens extended, in working position)
2 x 1.6' / 52 x 41 mm (lens collapsed, in storage position)
Weight8.1 oz / 230 g
  • Leica APO-Summicron-M 50mm f/2 ASPH. Lens (Black)
  • Leica Metal Cap
  • Leica Lens Cap
  • Rear Lens Cap
  • Leather Case
2YR Australian Warranty
