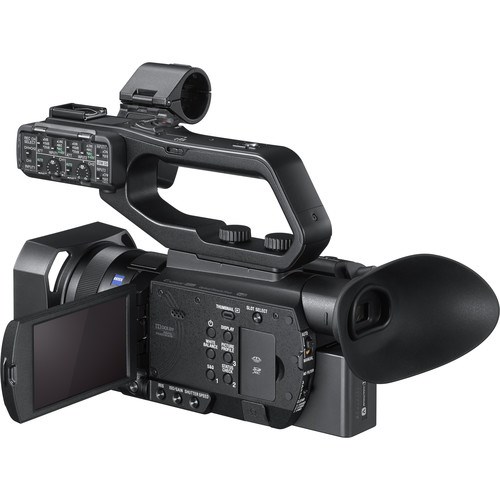

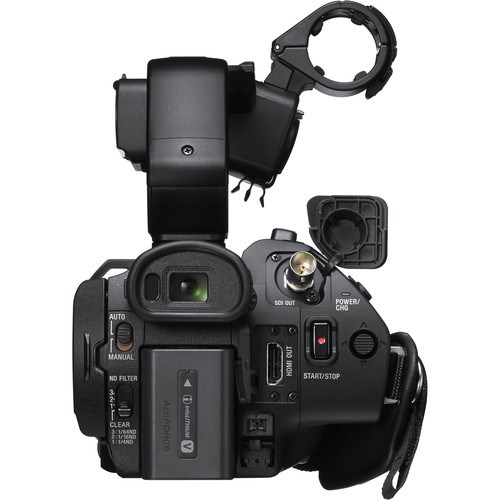

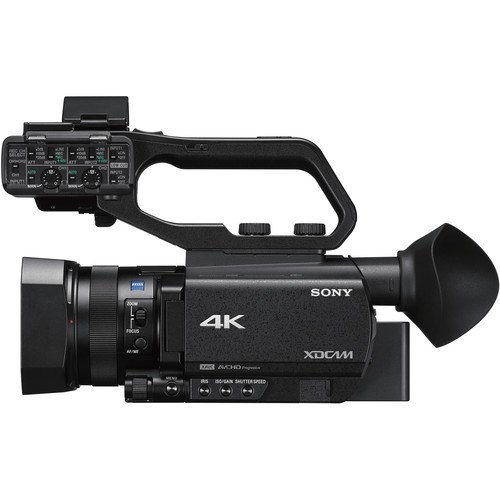

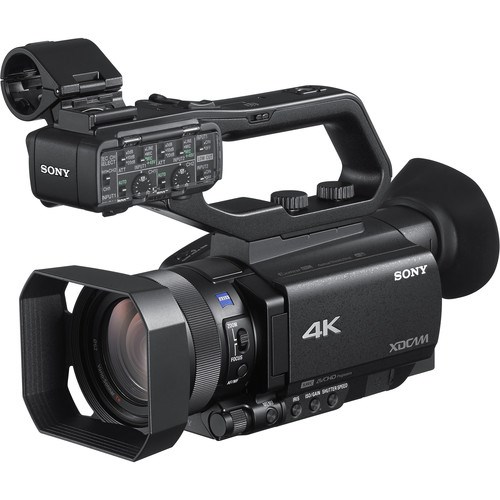

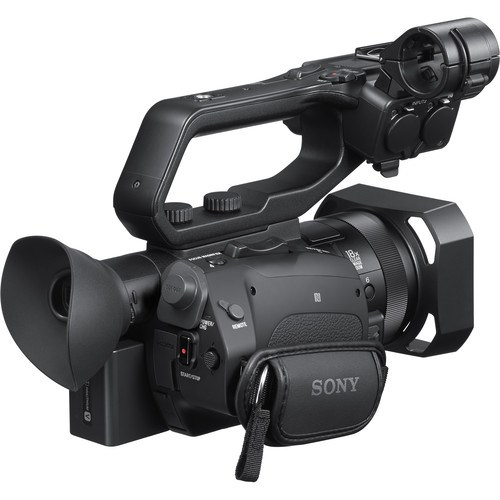

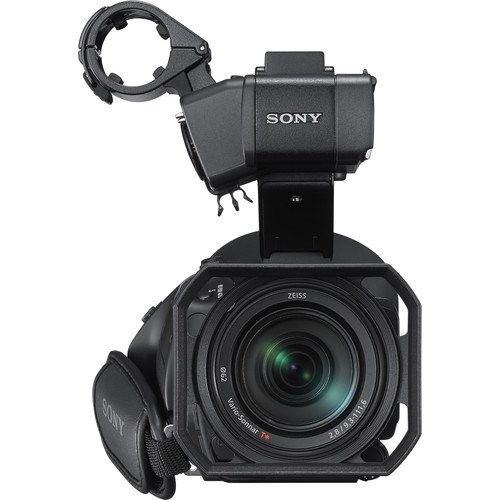

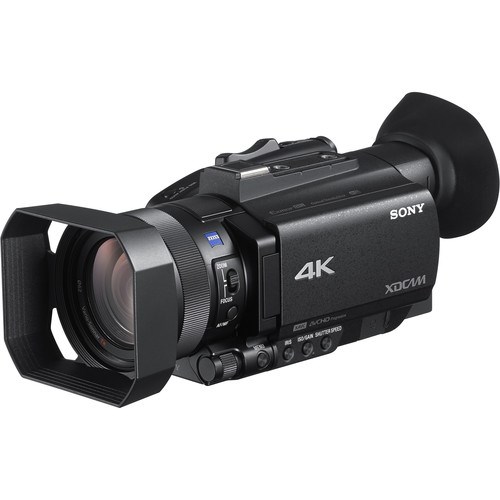

Sony PXW-Z90V Compact Handycam

Sony PXW-Z90V Compact Handycam

• Single 1" Exmor RS CMOS Sensor
• UHD 4K (3840 x 2160) up to 30p
• 4K HDR with Hybrid Log-Gamma (HLG)
• 3G-SDI Output, 2.4/5 GHz Live Streaming
• Phase-Detection Autofocus (AF)
• Zeiss 12x Optical / 18x Clear Image Zoom
• Records MPEG-2 HD with Optional License
• XAVC HD / QFHD Recording
• S-Log3/S-Gamut3 Imaging Options
• 2 x SD Card Slots, Relay & Simul Modes

Imaging
Image Sensor 1-Chip 1" CMOS Sensor
Sensor Resolution Effective: 14.2 Megapixel
Gain -3 to 33 dB
Minimum Illumination 1.7 Lux at 1/30 Shutter Speed
White Balance Range 2300 to 15,000K
Lens
Focal Length 9.3 to 111.6mm
35mm Equivalent Focal Length 29 to 348mm
Optical Zoom Ratio 12x
Max Digital Zoom 48x
Minimum Aperture f/2.8 to 4.5
Minimum Focusing Distance Wide: 0.4" / 1.0 cm
Telephoto: 39.4" / 100.1 cm
Filter Size 62 mm
Control Rings Focus
Zoom
Image Stabilization Optical
Focus Control Autofocus
Manual Focus
Camera
Shutter Speed 1/6 to 1/10,000 sec
Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Built-In Microphone Type Stereo
Recording
Recording Modes XAVC:
3840 x 2160p at 23.98/25/29.97 fps (60 to 100 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)
Variable Frame Rates UHD: 1 to 30 fps
1080p: 1 to 120 fps
Audio Recording 2-Channel 24-Bit 48 kHz
Interfaces
Video Connectors 1 x HDMI Output
1 x BNC (Composite) Output
1 x BNC (3G-SDI) Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Headphone Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
Other I/O 1 x USB Micro-B
1 x USB Micro-B Control
1 x 2.5 mm LANC Control
Wireless Interfaces 2.4 GHz, 5 GHz Wi-Fi
Display
Display Type Articulating LCD
Size 3.5"
Resolution 1,560,000 Dot
EVF
EVF Display Type OLED
Screen Size .39"
EVF Resolution 2,360,000 Dots
Power
Power Connectors 1 x Barrel Input
Power Consumption 6.9 W

• Sony PXW-Z90V 4K HDR XDCAM with Fast Hybrid AF
• XLR Handle
• Lens Hood
• Lens Cap
• Large Eyecup
• Accessory Shoe Kit
• USB Cable
• Sony NP-FV70A V-Series Battery Pack for Handycam Camcorders (1900mAh)
• Sony AC-L200 AC Adapter for Handycam Using A/P/F-Series InfoLITHIUM Batteries
• Power Cord
• RMT-845 Wireless Remote
• CR2025 Lithium Battery for Remote
